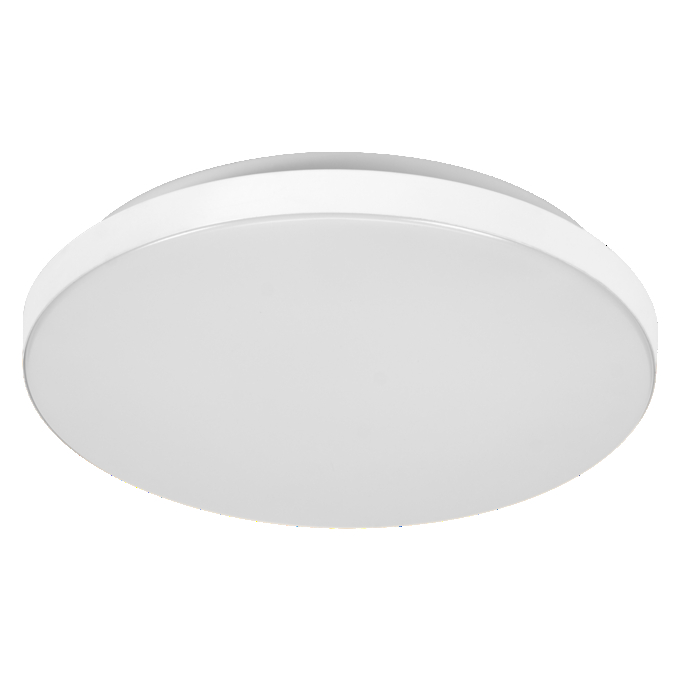

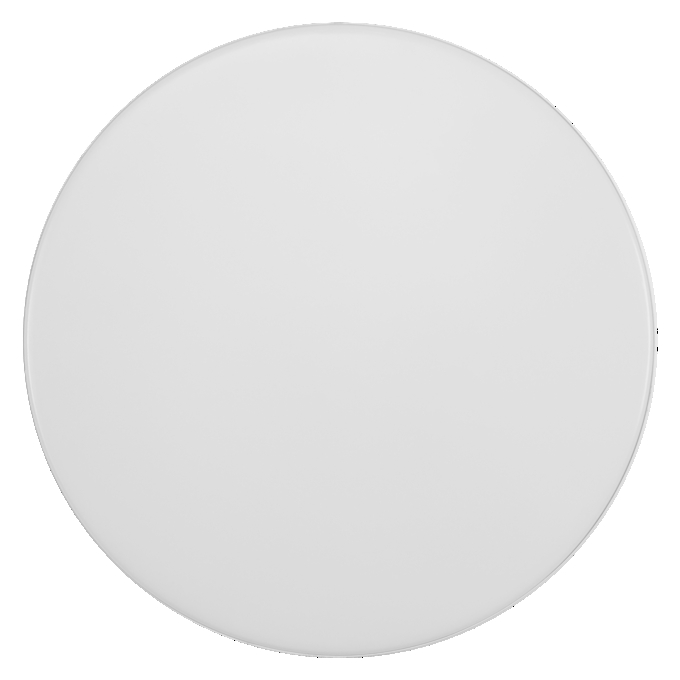

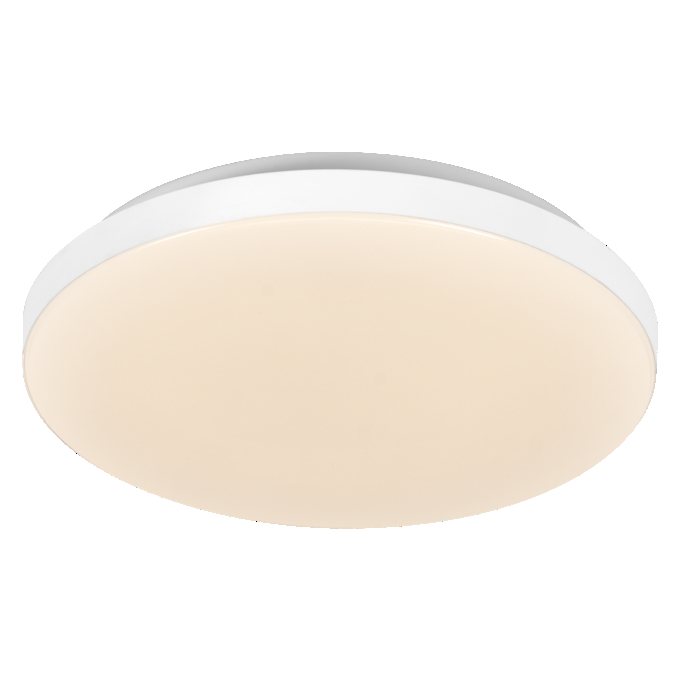

Essential Orbis IP44 290mm 18W 830 White
4099854621482
Product benefits
- Long lifetime thanks to LED technology
- Excellent price/performance ratio
Areas of application
- Bathrooms
- Workshops, garages, covered outdoor storage areas
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Type of protection: IP44
- Lifetime up to 30,000 h
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
120 °
Body material
Metal
Color rendering index Ra
80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Diameter
285.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854621482
Height
65.00 mm
Housing color
White
Inrush current
0.165 A
Inrush current time Th50
142 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
67 lm/W
Luminous flux
1200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
58
Max. number of luminaires per miniature circuit breaker C10
60
Max. number of luminaires per miniature circuit breaker C16
96
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
165.000 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.50
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
480.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
65 %
Total luminous flux of contained light sources
2000
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP44
With light source
Yes
