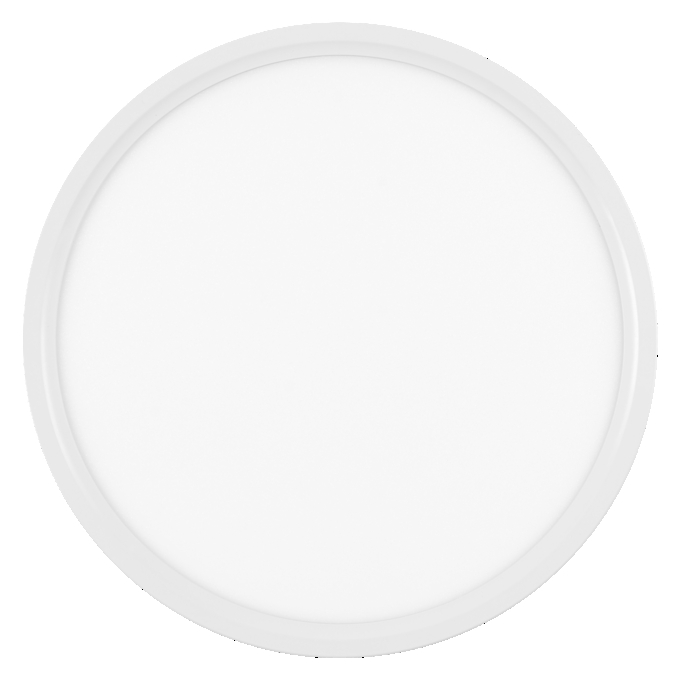

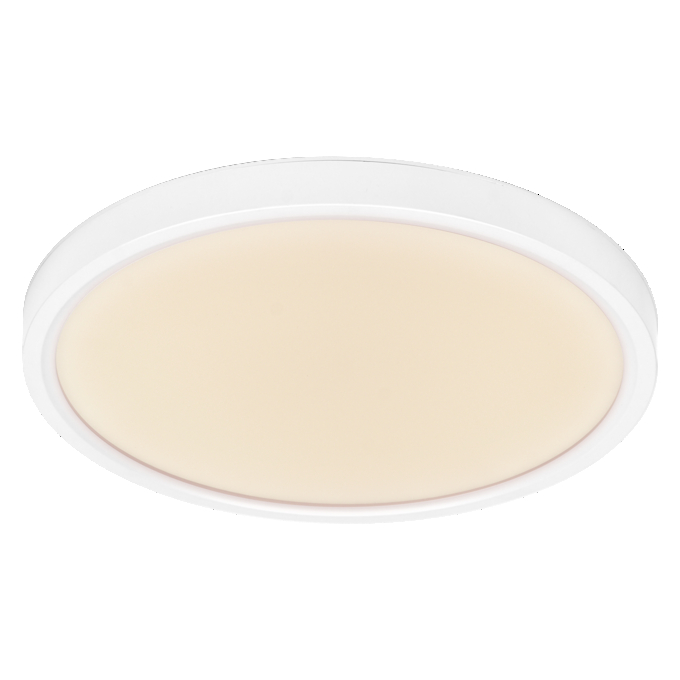

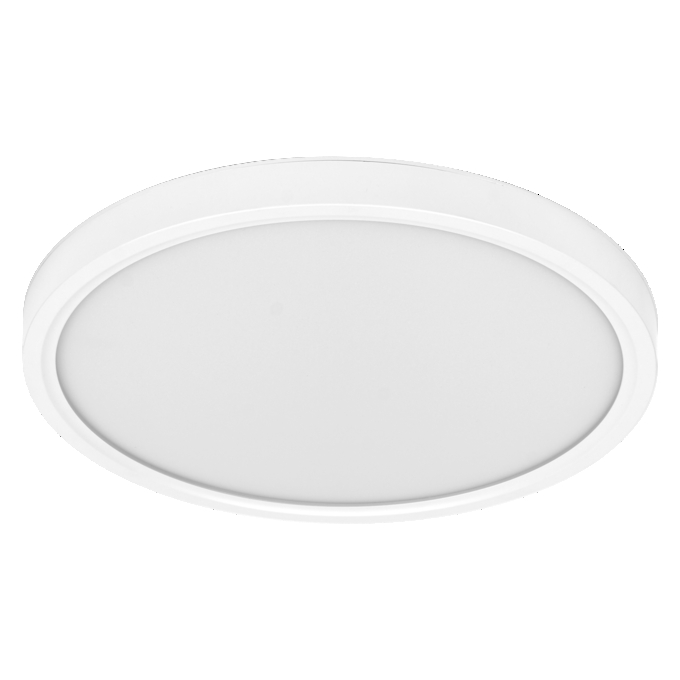

Essential Orbis 400mm 24W 830 White
4099854621406
Product benefits
- Long lifetime thanks to LED technology
- Excellent price/performance ratio
- Easy mounting
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Ceiling luminaire with advanced LED technology
- Color temperature: 3,000 K
- Lifetime up to 30,000 h
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…40 °C
Ball shot safe
No
Beam angle
115 °
Body material
Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Diameter
400.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854621406
Height
25.00 mm
Housing color
White
Inrush current
1.1 A
Inrush current time Th50
158 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
83 lm/W
Luminous flux
2000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
43
Max. number of luminaires per miniature circuit breaker C10
45
Max. number of luminaires per miniature circuit breaker C16
72
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
220.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1050.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
58.60 %
Total luminous flux of contained light sources
2600
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
