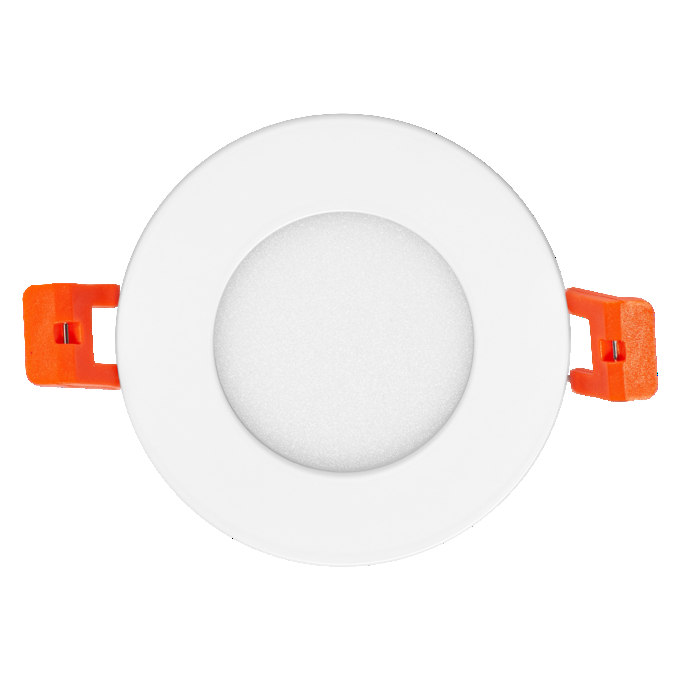

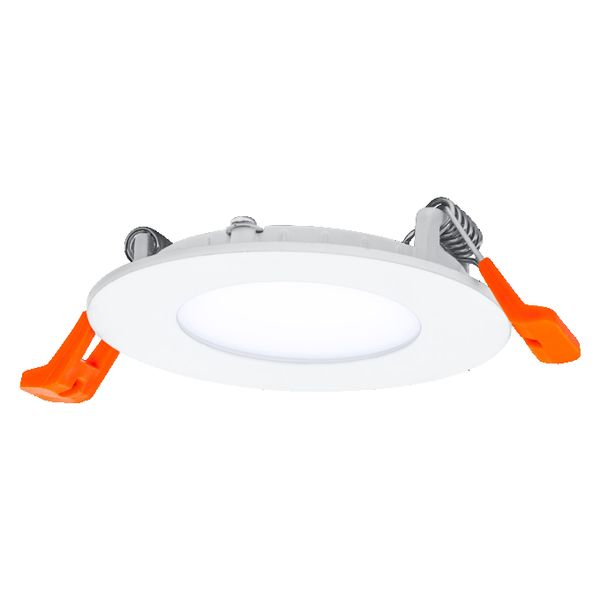

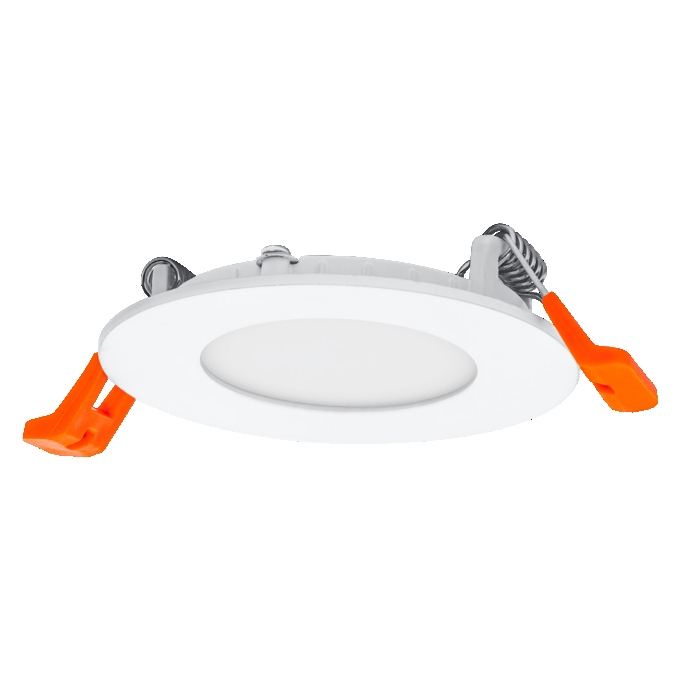

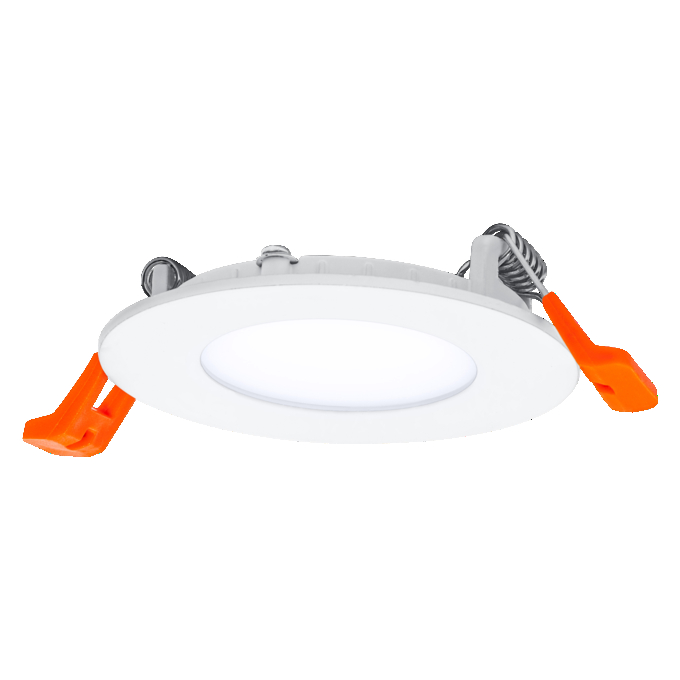

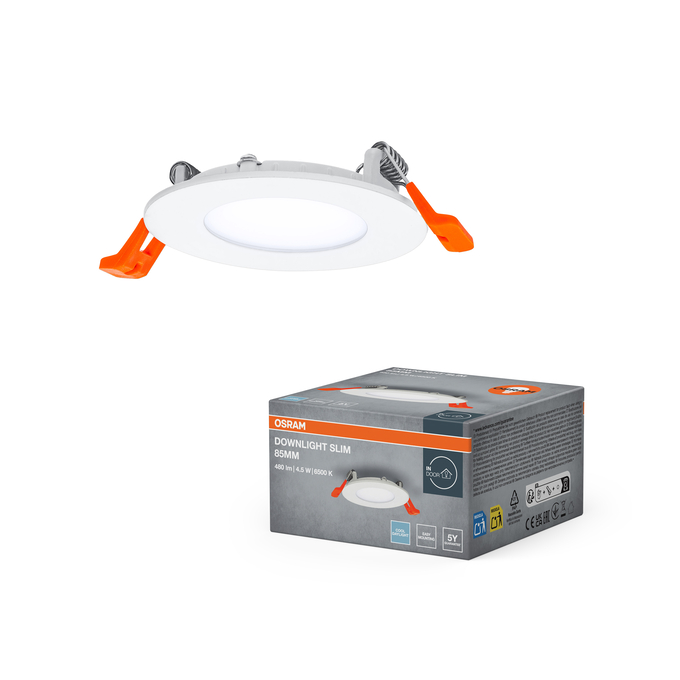

Downlight Slim 85mm 4.5W 6500K
4099854445385
Product benefits
- Very slim design
- Ideal when few space in the ceiling
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
- Kitchens
Product features
- Integrated driver
- Housing material: plastic
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
110 °
Body material
Polyprophylene (PP)|polyamid
Color rendering index Ra
≥80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
85.00 mm
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854445385
Height
32.00 mm
Housing color
White
Inrush current time Th50
1500 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
56 lm/W
Luminous flux
240 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
35,0 mm
Mounting diameter
72,0 mm
Mounting type
Recessed
Nominal current
60.000 mA
Nominal voltage
220…240 V
Nominal wattage
4.50 W
Number of switching cycles
15000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.4
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
60.00 g
Protection class
II
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+70 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
480 lm
Type of connection
Screw terminal
Type of protection
IP20
With light source
Yes
