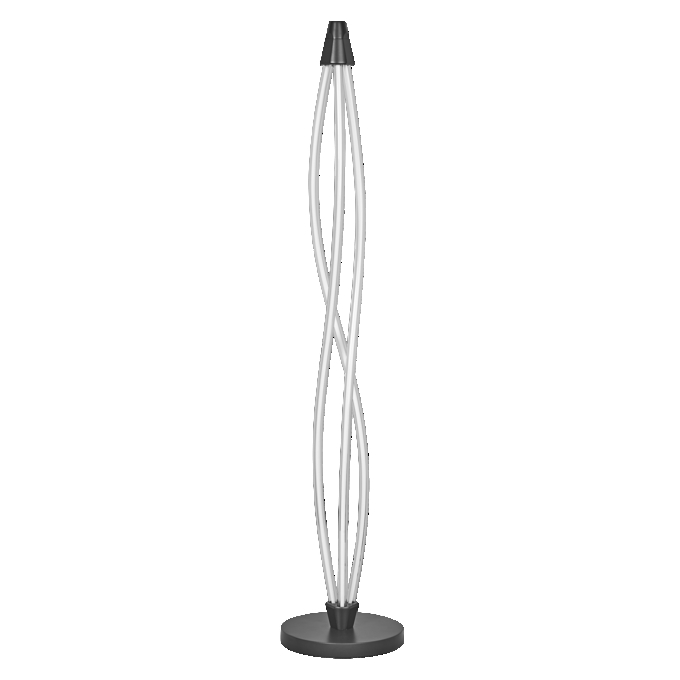

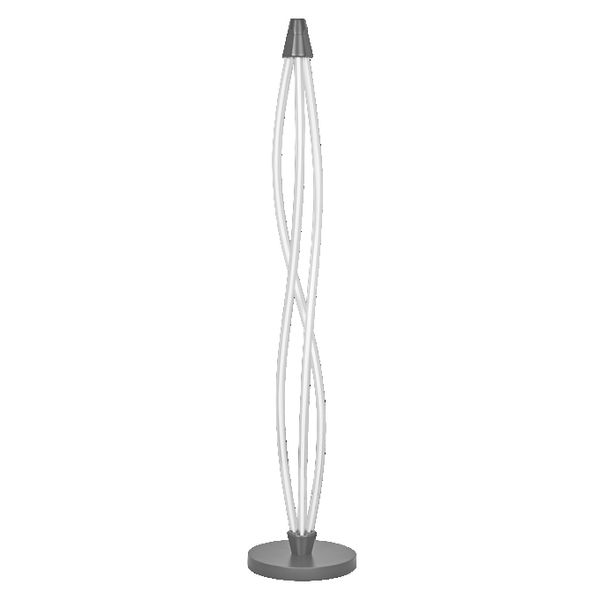

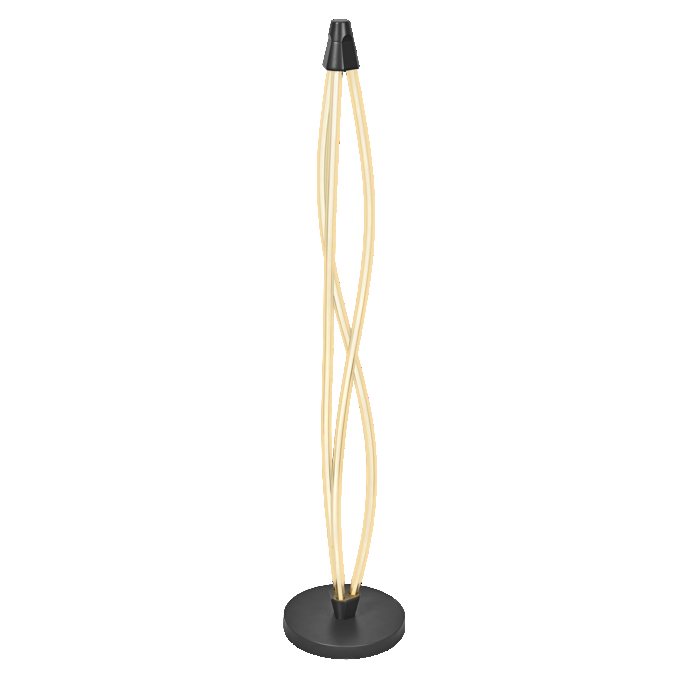

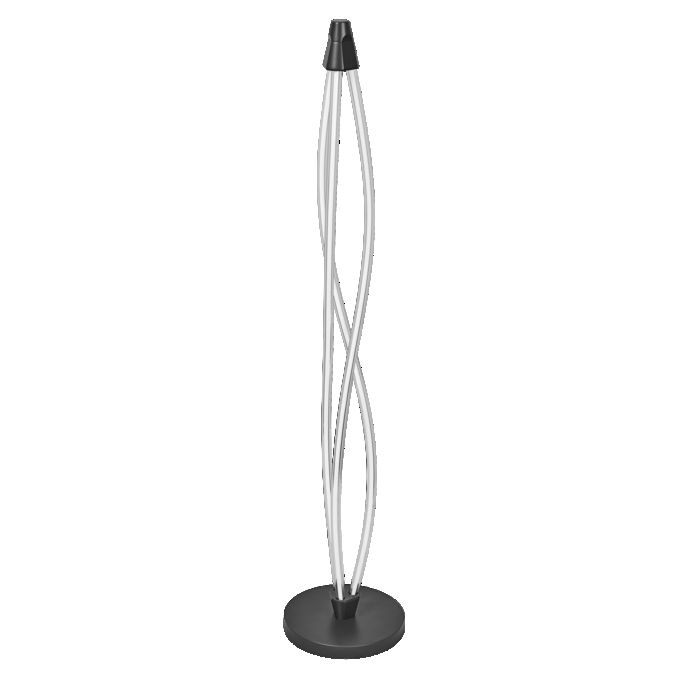

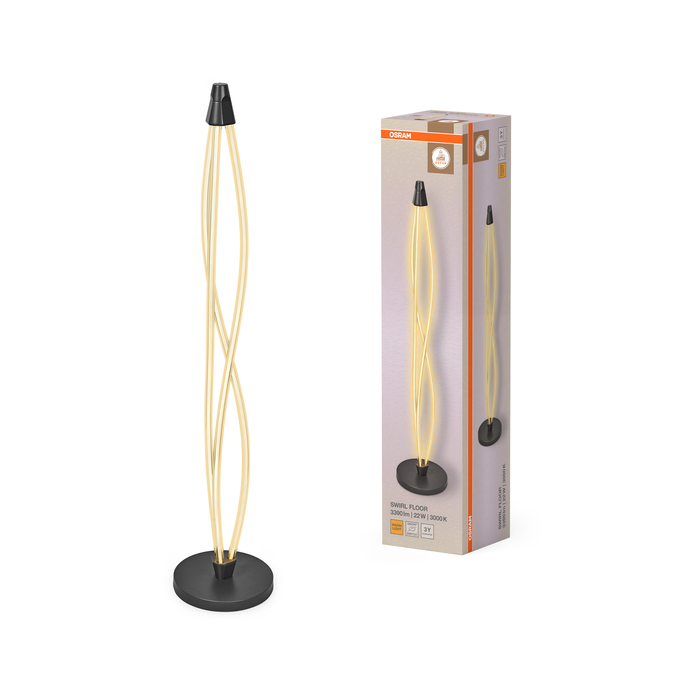

Decor Swirl Floor 22W 830 Touch DIM
4099854455025
Product benefits
- Even filament illumination
- Click dim function by wall switch (only for pendant types)
- Different types of luminaires with the same design language maintain a consistent style at home
- Minimalistic style fits to every room
- Inline-switch for table and floor luminaire
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: polycarbonate (PC)
- High-power LED
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
360 °
Body material
Polycarbonate (PC)
Cable length
2000 mm
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
260.00 mm
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854455025
Height
1280.00 mm
Housing color
Dark gray
Inrush current time Th50
150 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous flux
2400 lm
Max. number of luminaires per miniature circuit breaker B16
26
Max. number of luminaires per miniature circuit breaker C10
26
Max. number of luminaires per miniature circuit breaker C16
42
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Standing
Nominal current
100.000 mA
Nominal voltage
220…240 V
Nominal wattage
22.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Dark gray
Product recyclability
Mostly recyclable product 1)
Product weight
2500.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Standards
CE
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
3390 lm
Type of connection
Plug type C (EU)
Type of dimming
CLICKSWITC
Type of protection
IP20
With light source
Yes
