Decor Spot Pluto Black 1 Spot
4099854470950
Product benefits
- High-quality housing with matt white or matt black surface
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features
- Luminaire family features four versions with up to 4 spot heads
- Housing material: metal and wood

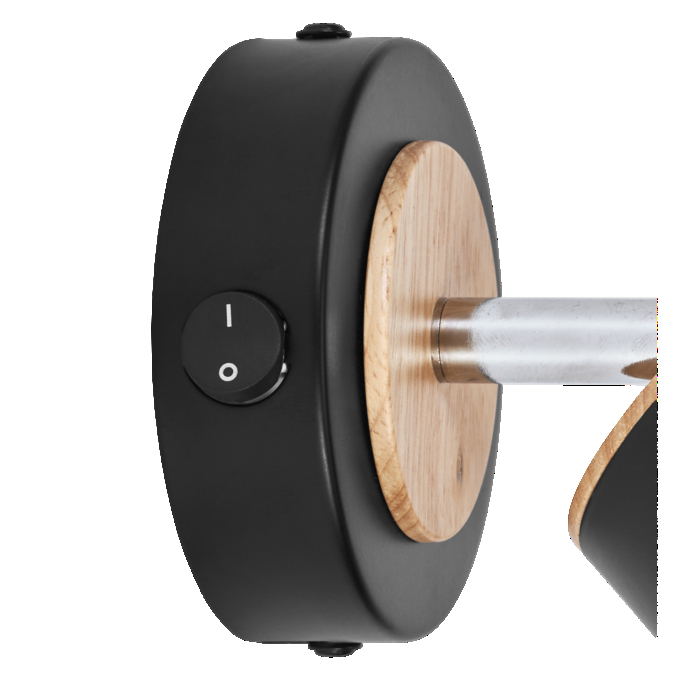

- On/off switch on 1-head version for easy operation
- Adjustable heads
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Adjustable
Yes
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
102.00 °
Body material
Steel|wood
Color rendering index Ra
80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854470950
Height
90.00 mm
Housing color
Black
Inrush current time Th50
174 µs
Length
90.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
63 lm/W
Luminous flux
300 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
556
Max. number of luminaires per miniature circuit breaker C16
556
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
23.000 mA
Nominal voltage
220…240 V
Nominal wattage
4.80 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
270.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+40 °C
Total harmonic distortion
< 70 %
Total luminous flux of contained light sources
450 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP20
Width
122.00 mm
With light source
Yes
