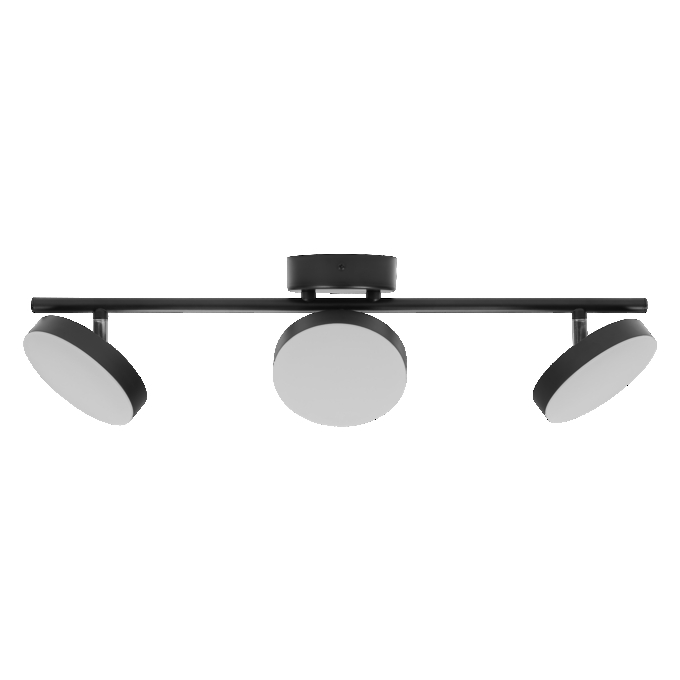

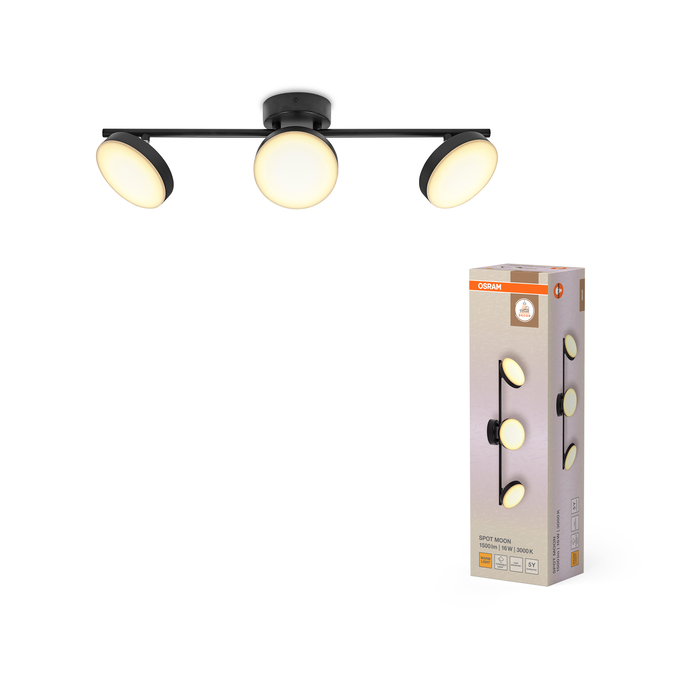

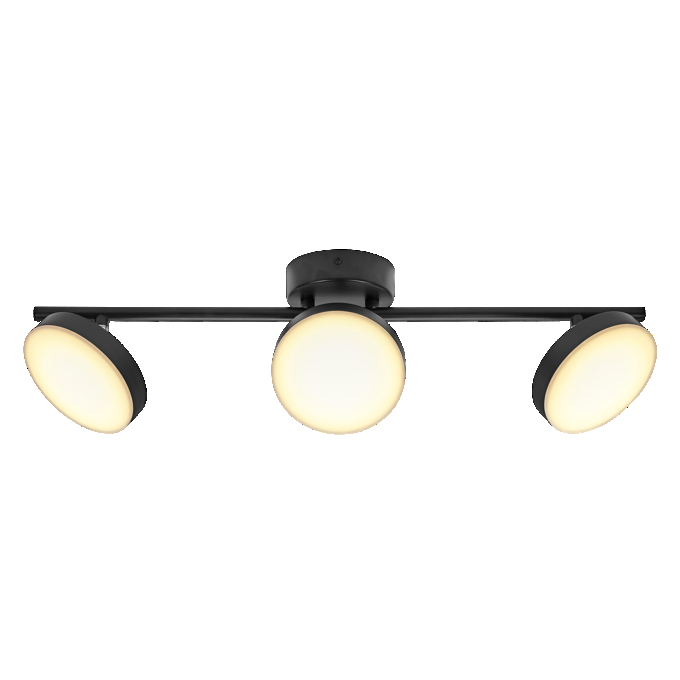

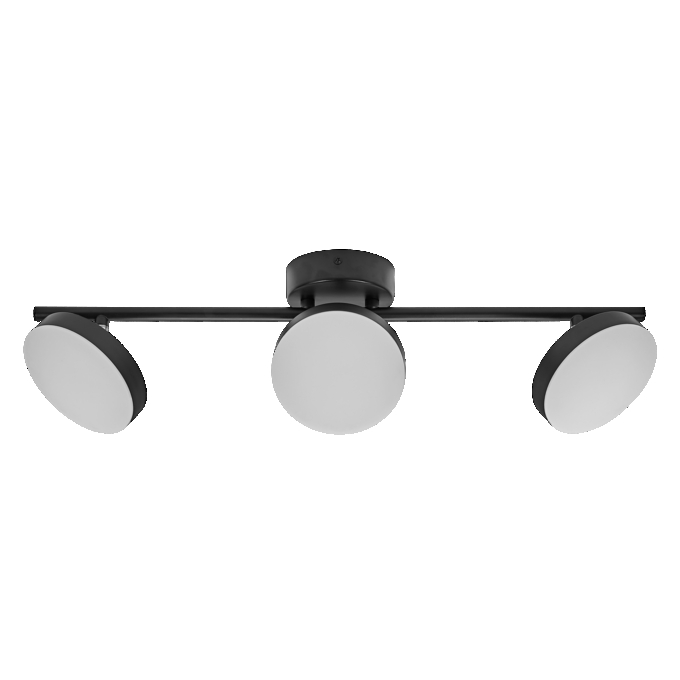

Decor Spot Moon 3Spot 16W 830 Black
4099854472275
Product benefits
- High-quality look and feel
- Functional and minimalistic design
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Luminaire family features five versions with up to 4 spot heads
- Adjustable heads
- Housing material: metal
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
115 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854472275
Height
119.00 mm
Housing color
Black
Inrush current time Th50
260 µs
Length
580.00 mm
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
52 lm/W
Luminous flux
840 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
115
Max. number of luminaires per miniature circuit breaker C10
72
Max. number of luminaires per miniature circuit breaker C16
115
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
120.000 mA
Nominal voltage
220…240 V
Nominal wattage
16.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
900.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
61 %
Total luminous flux of contained light sources
1500 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
Width
120.00 mm
With light source
Yes
