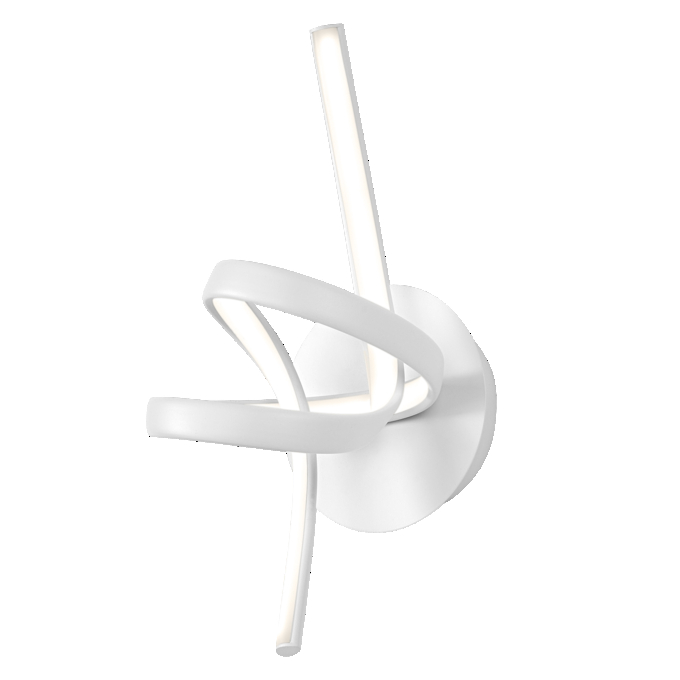

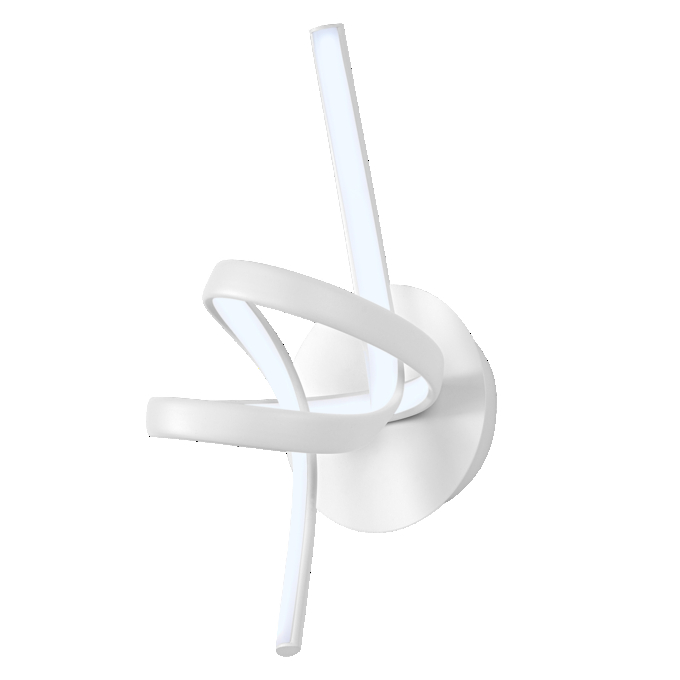

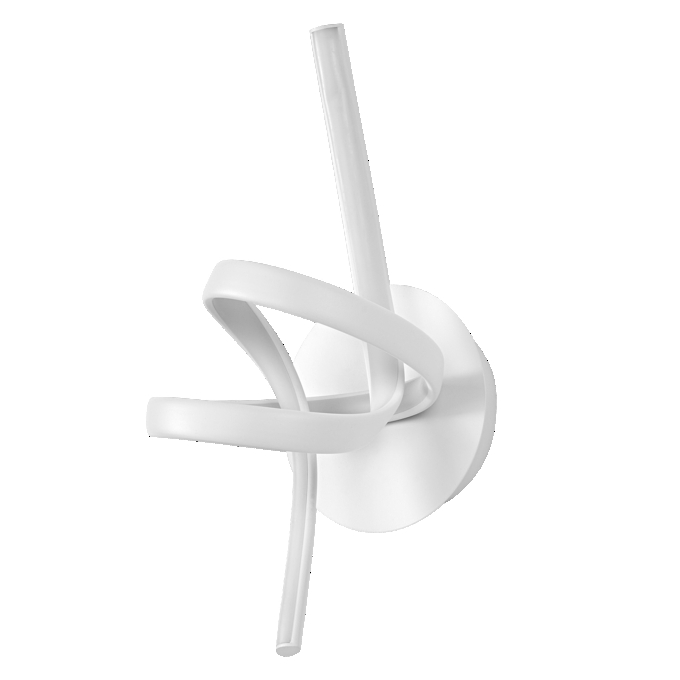

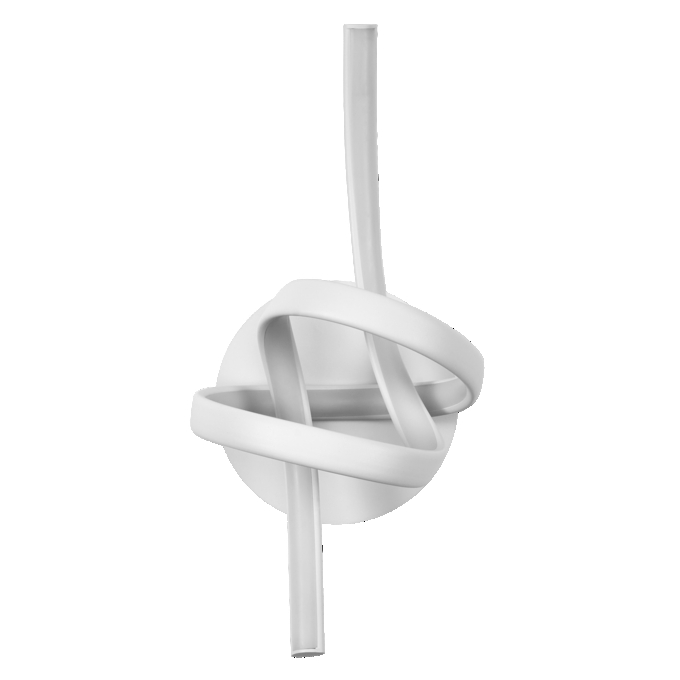

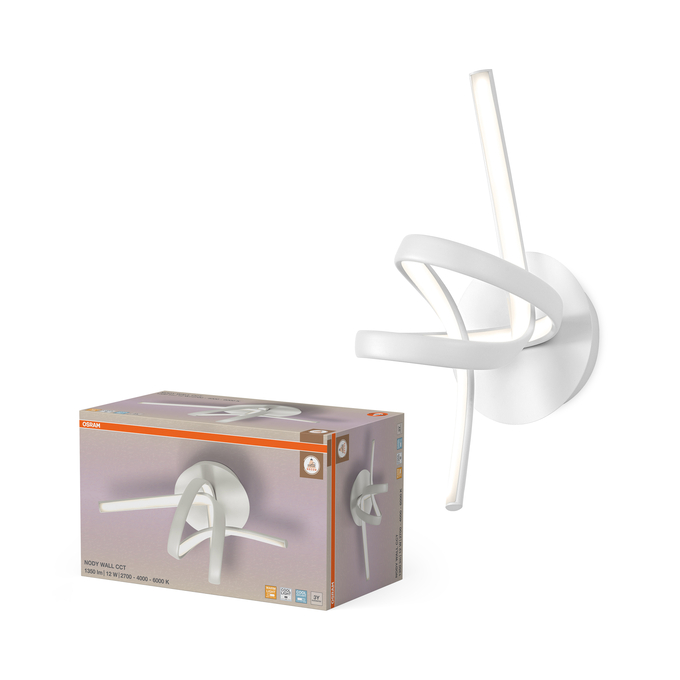

Decor Nody Wall 12W CCT White
4099854659164
Product benefits
- Color temperature adjustment for different application needs
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Color temperature slider (CTS): 2700 K, 4000 K, 6000 K
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
190 °
Body material
Aluminum|Steel
Color rendering index Ra
> 80
Color temperature
2700 K / 4000 K / 6000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854659164
Height
180.00 mm
Housing color
White
Inrush current
4 A
Inrush current time Th50
100 µs
Length
370.00 mm
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
70 lm/W
Luminous flux
850 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
106
Max. number of luminaires per miniature circuit breaker C10
62
Max. number of luminaires per miniature circuit breaker C16
100
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
100.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
580.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
2700 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 120 %
Total luminous flux of contained light sources
1350 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
Width
205.00 mm
With light source
Yes
