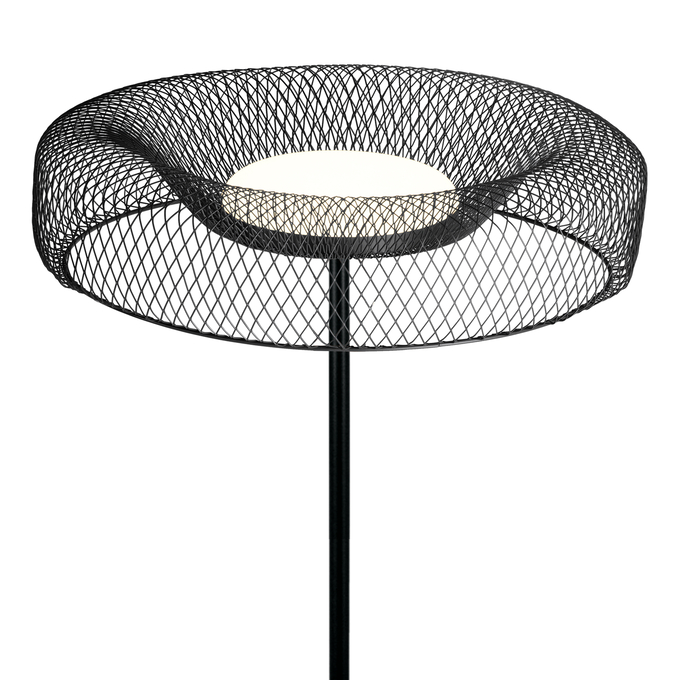

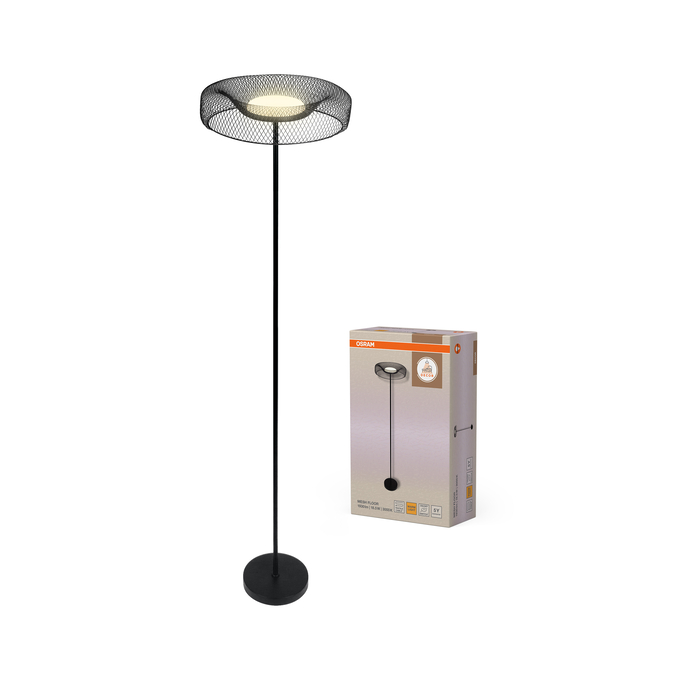

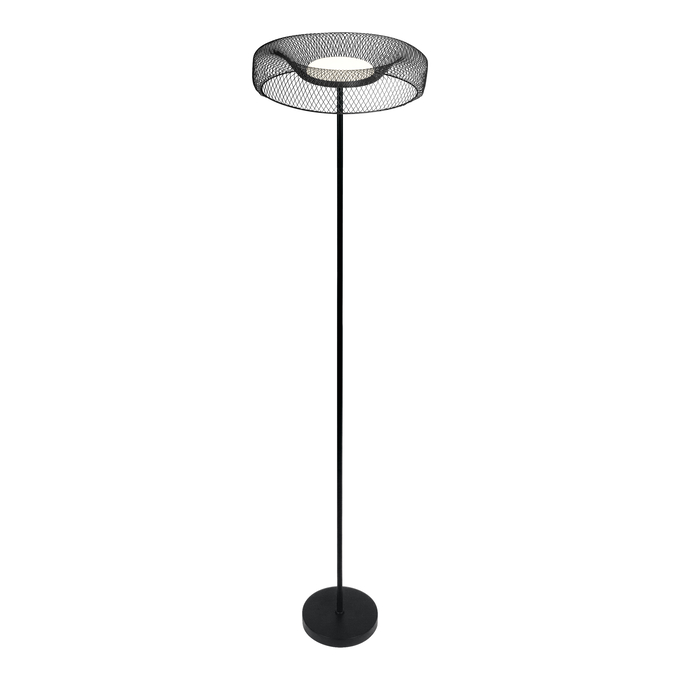

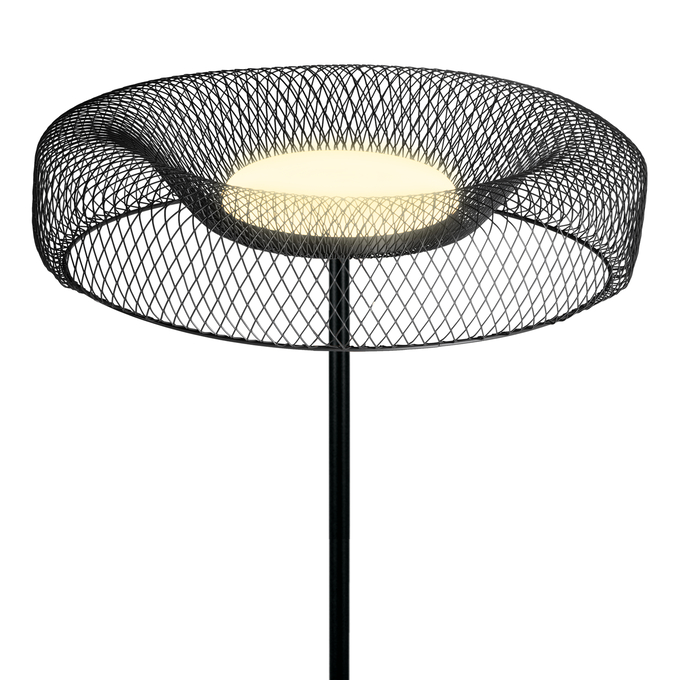

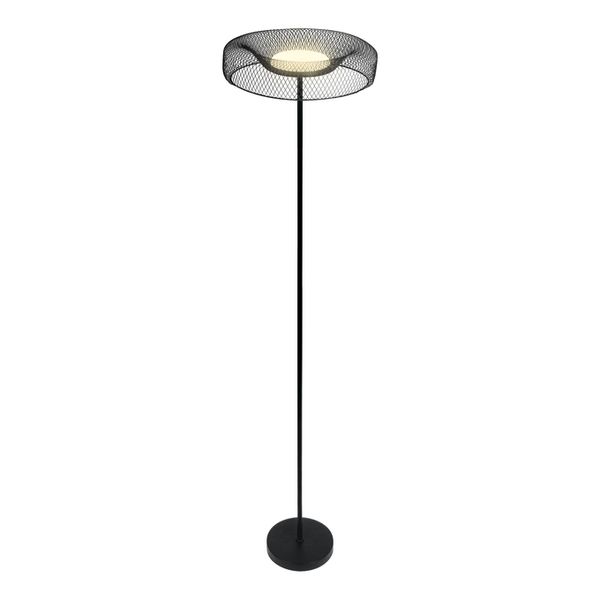

Decor Mesh Floor 18.5W 830 Black
4099854481116
Product benefits
- High-quality look and feel
- Different types of luminaires with the same design language maintain a consistent style at home
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: metal
- Pendant and table luminaire combine metal grids with wood
- Textile cable
- High-power LED
- Color temperature: 3,000 K
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- For products with protection class I, all electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor. The exact protection class of the product is mentioned in the Technical Data (Class I, II or III).
Adjustable
No
Ambient temperature range
-20…+40 °C
Beam angle
100 °
Body material
Steel
Cable length
1800 mm
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
400.00 mm
Dimmable
No
Flickering metric (Pst LM)
0,7
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854481116
Height
1610.00 mm
Housing color
Black
Inrush current
0.114 A
Inrush current time Th50
70 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminous efficacy
64.86 lm/W
Luminous flux
1200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
112
Max. number of luminaires per miniature circuit breaker C10
70
Max. number of luminaires per miniature circuit breaker C16
112
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Floor
Mounting type
Standing
Nominal voltage
220…240 V
Nominal wattage
18.50 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.70
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
3740.00 g
Protection class
II
Replaceable light source
No
Standard deviation of color matching
6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
0,15
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 70 %
Total luminous flux of contained light sources
1930 lm
Type of connection
Plug type C (EU)
Type of protection
IP20
With light source
Yes
