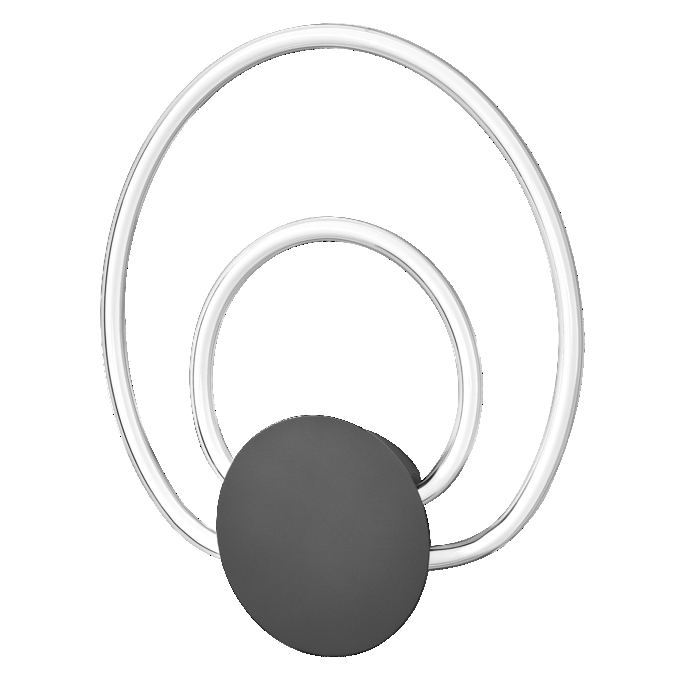

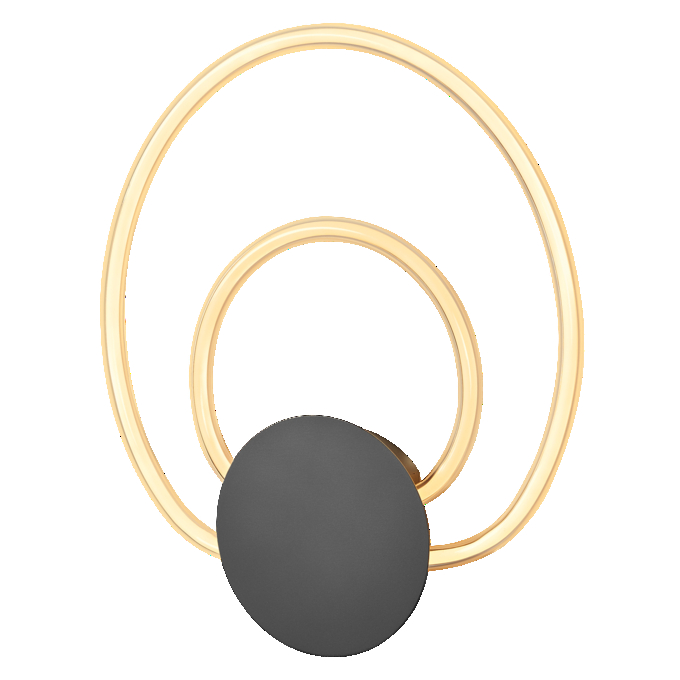

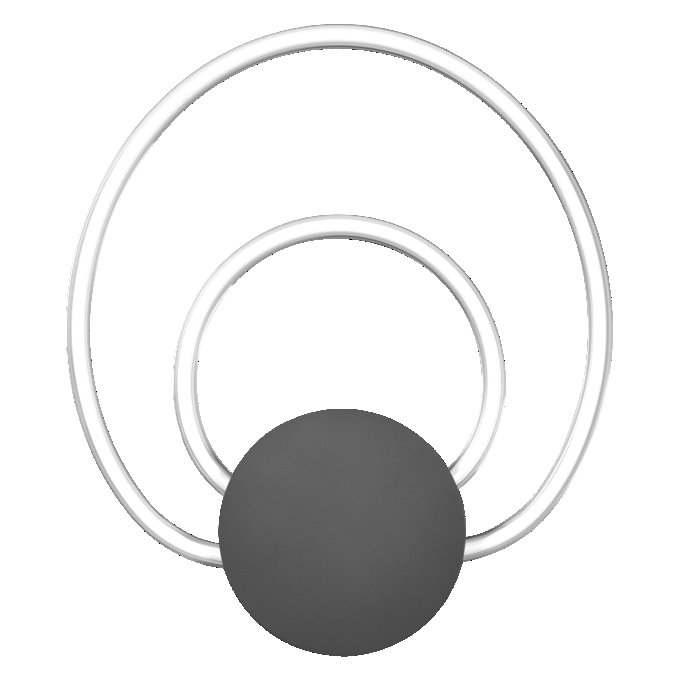

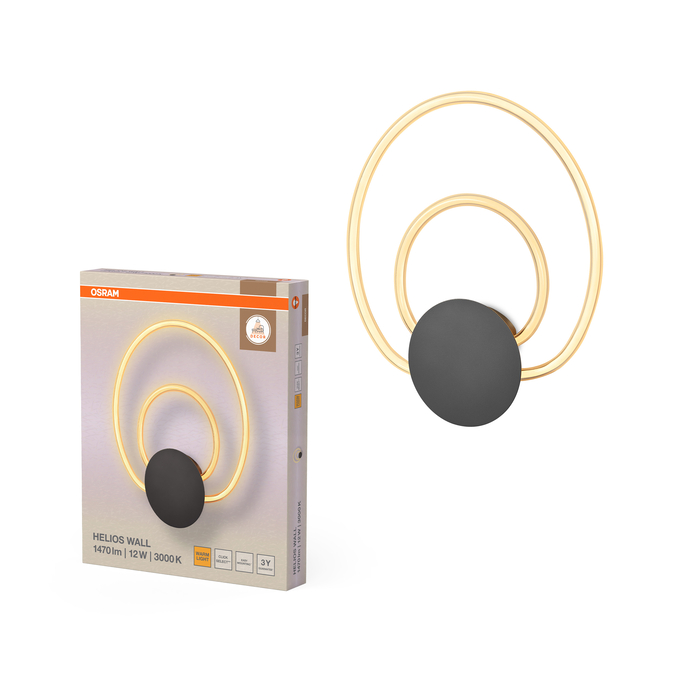

Decor Helios Wall 12W 830 Click Select
4099854453779
Product benefits
- Even filament illumination
- 3-step selecting by wall switch to turn on indirect and direct lights separately (click select)
- Minimalistic style fits to every room
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: polycarbonate (PC)
- High-power LED
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
360 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854453779
Height
416.00 mm
Housing color
Dark gray
Inrush current time Th50
150 µs
Length
335.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous flux
960 lm
Max. number of luminaires per miniature circuit breaker B16
53
Max. number of luminaires per miniature circuit breaker C10
44
Max. number of luminaires per miniature circuit breaker C16
71
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
65.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Dark gray
Product recyclability
Mostly recyclable product 1)
Product weight
900.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 85 %
Total luminous flux of contained light sources
1470 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
Width
39.00 mm
With light source
Yes
