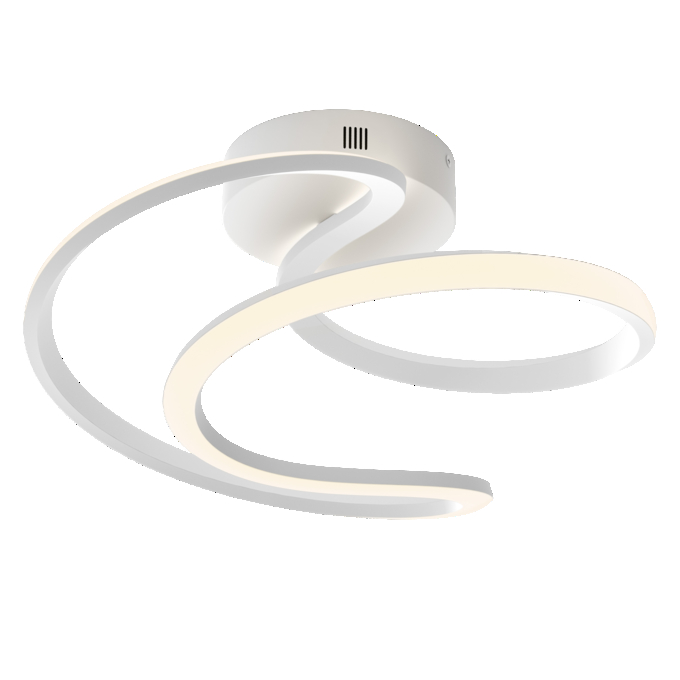

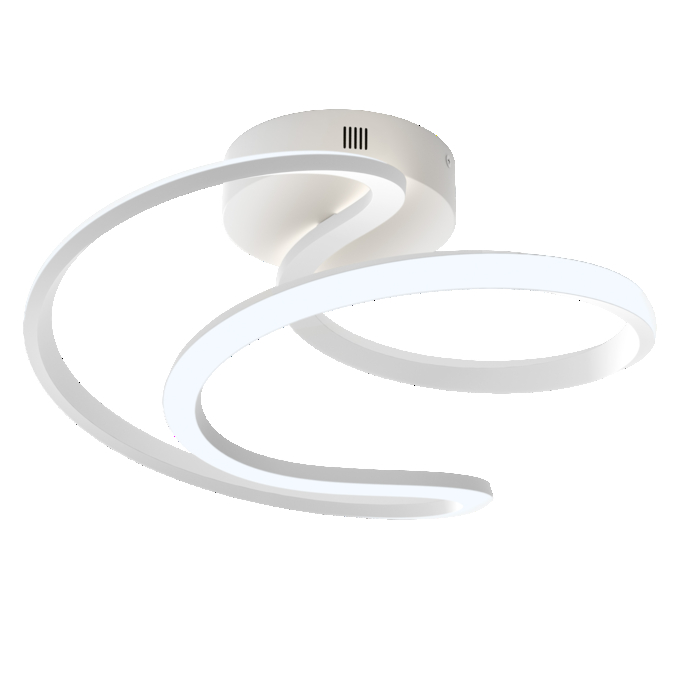

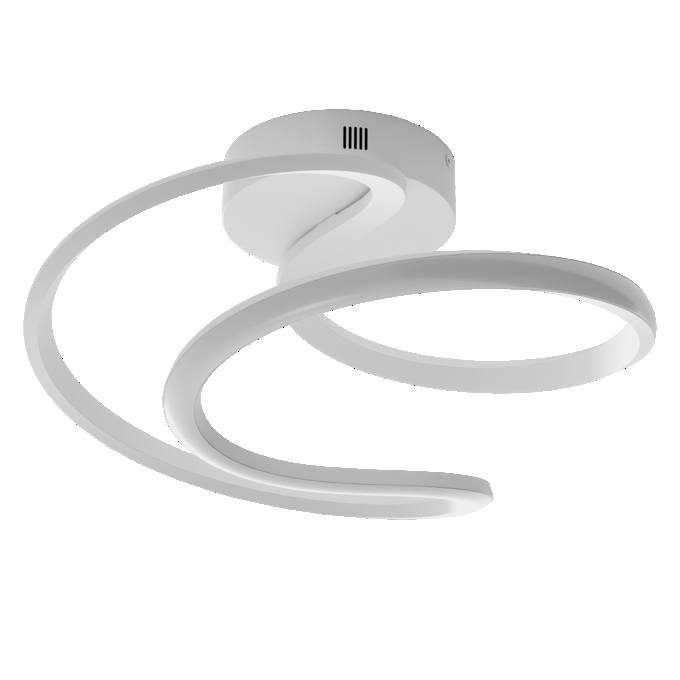

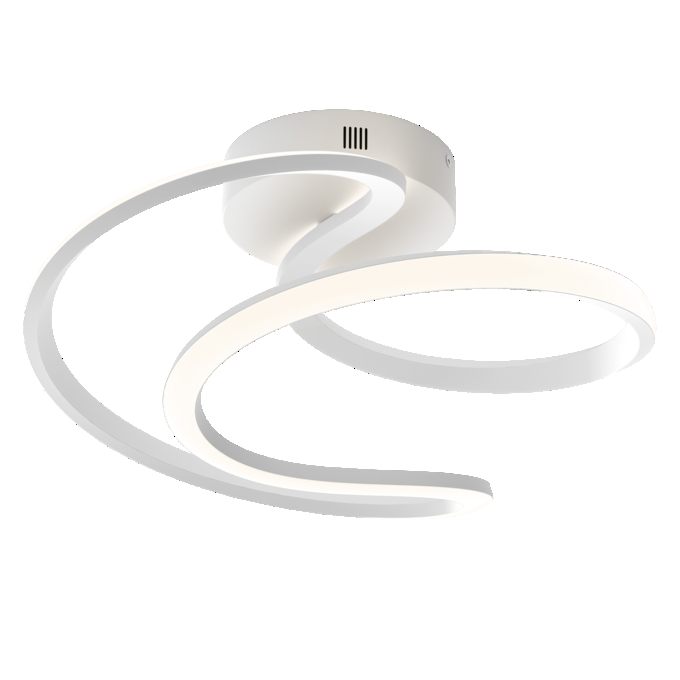

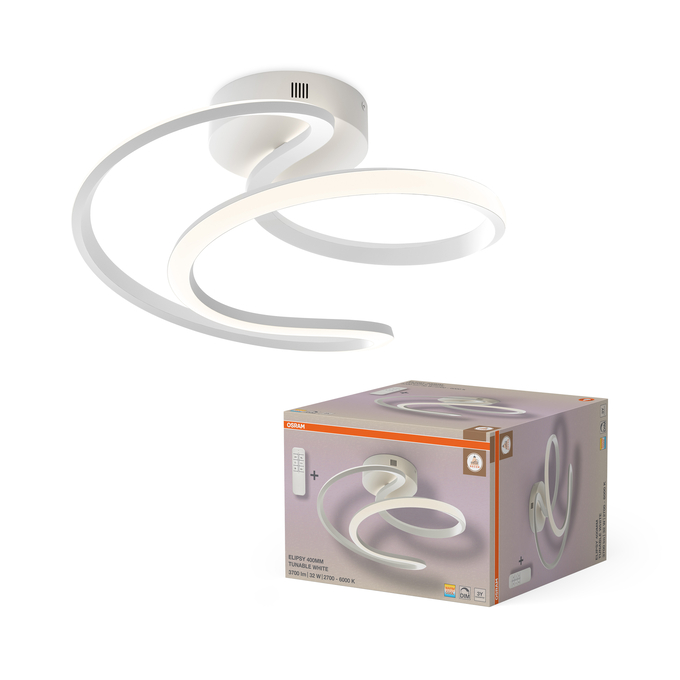

Decor Elipsy Ceiling 400mm 32W Tunable White DIM Remote White
4099854659232
Product benefits
- Color temperature adjustment for different application needs
- Set light output from 0-100% for personal comfort
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Dimmable
- White adjustment (CCT) from 2700 K...6000 K via remote control
Equipment / Accessories
- Batteries required for remote control: 2xAAA (not included)
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
300 °
Body material
Aluminum|Steel
Color rendering index Ra
> 80
Color temperature
2700…6000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
400.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854659232
Height
270.00 mm
Housing color
White
Inrush current
5 A
Inrush current time Th50
100 µs
Light color (designation)
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
80 lm/W
Luminous flux
2500 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
69
Max. number of luminaires per miniature circuit breaker C10
40
Max. number of luminaires per miniature circuit breaker C16
64
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
156.000 mA
Nominal voltage
220…240 V
Nominal wattage
32.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.9
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1210.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
2700 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
3700 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
