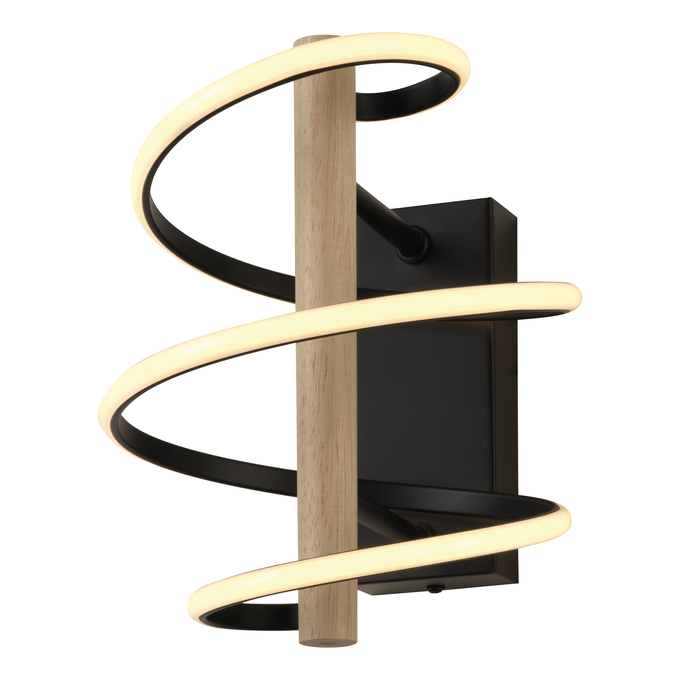

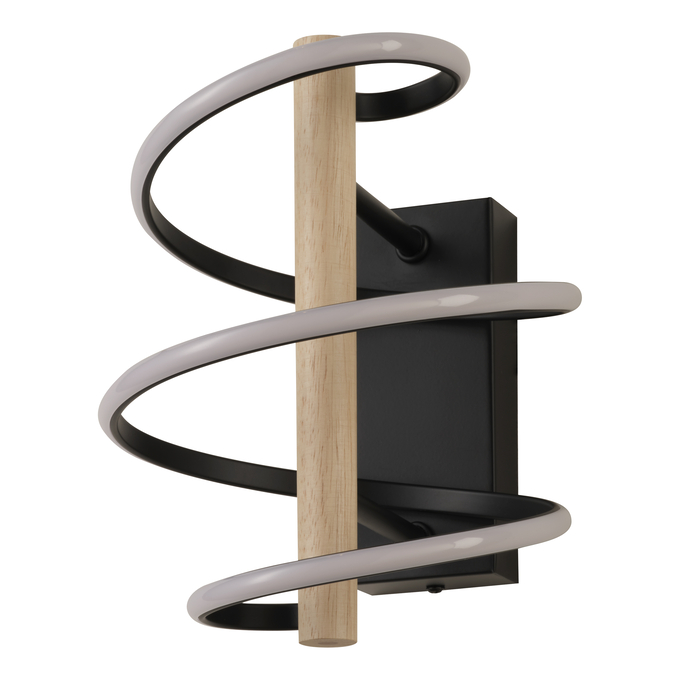

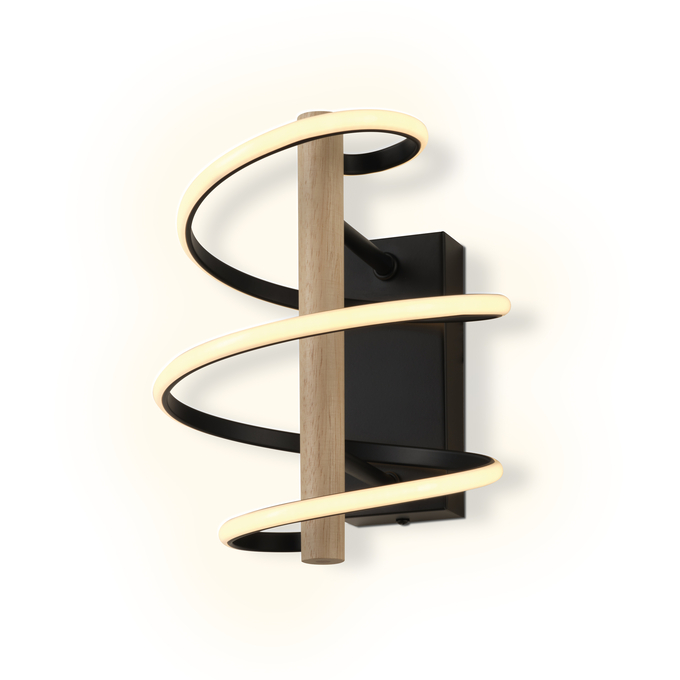

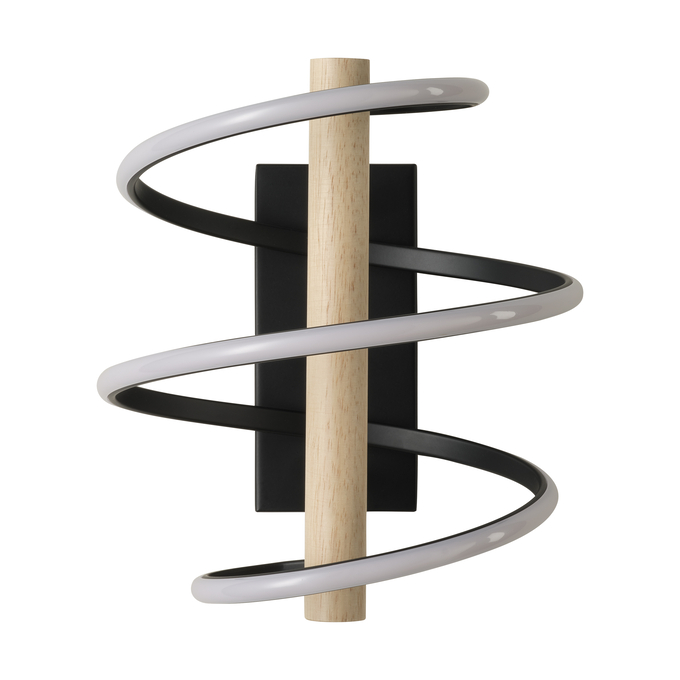

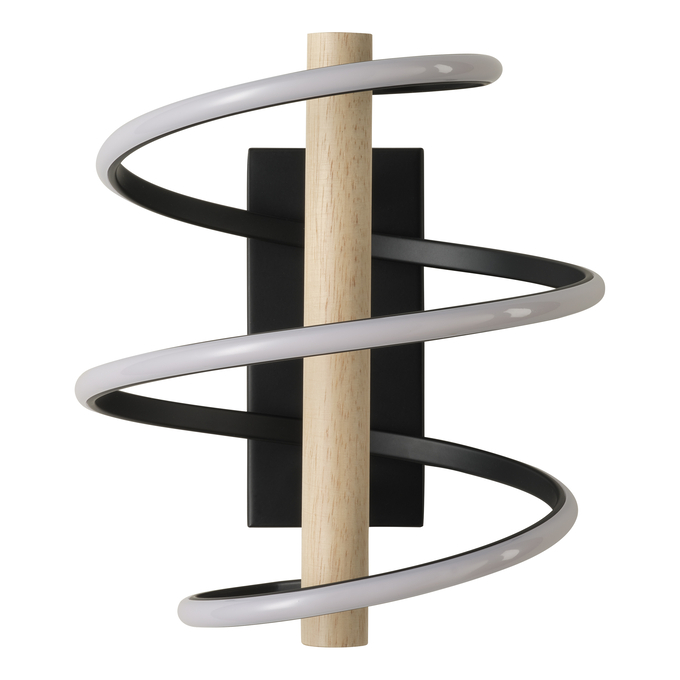

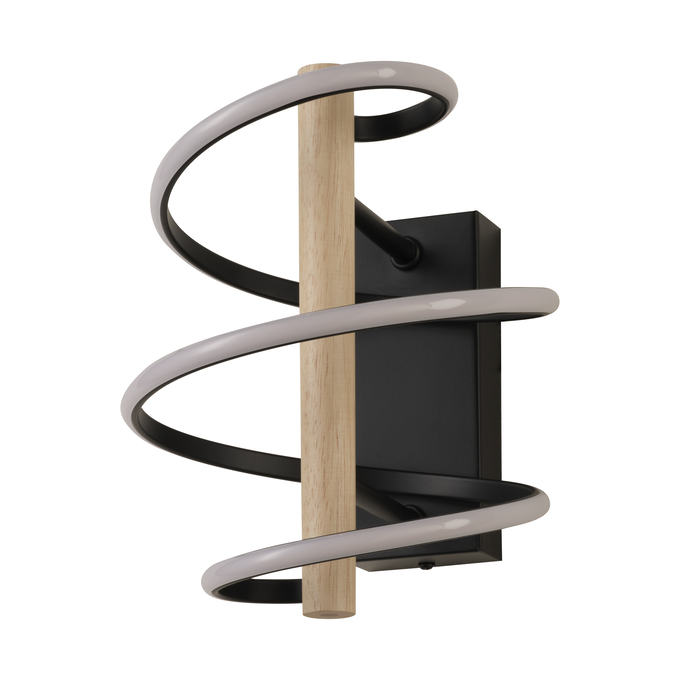

Decor Curly Wall 210 x 180 mm 15 W 840 DIM
4058075859876
Product benefits
- Different types of luminaires with the same design language maintain a consistent style at home
- Stylish and modern design
- Easy mounting
Areas of application
- Indoor
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- High-power LED
- Housing material: real wood and metal
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
- Equipped with 1.5 m cable with in-line switch and EU plug
Safety advice
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
260 °
Body material
STEEL|ALUMINIUM|RUBBERWOOD
Color rendering index Ra
80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polyvinylchlorid (PVC)
Dimmable
Yes
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075859876
Height
210.00 mm
Housing color
Black|Wood decor
Inrush current
4.72 A
Inrush current time Th50
4.438 µs
Length
183.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
106 lm/W
Luminous flux
1600 lm
Max. number of luminaires per miniature circuit breaker B16
107
Max. number of luminaires per miniature circuit breaker C10
67
Max. number of luminaires per miniature circuit breaker C16
107
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wall
Mounting type
Surface
Nominal current
119.000 mA
Nominal voltage
220…240 V
Nominal wattage
15.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Black|Wood decor
Product recyclability
Mostly recyclable product 1)
Product weight
440.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 7 %
Total luminous flux of contained light sources
2187 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
CLICKSWITC
Type of protection
IP20
Width
233.00 mm
With light source
Yes
