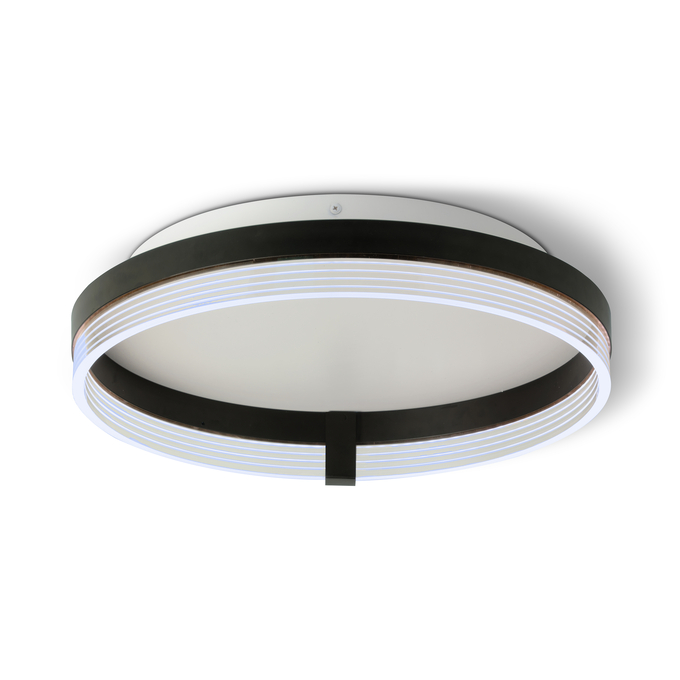

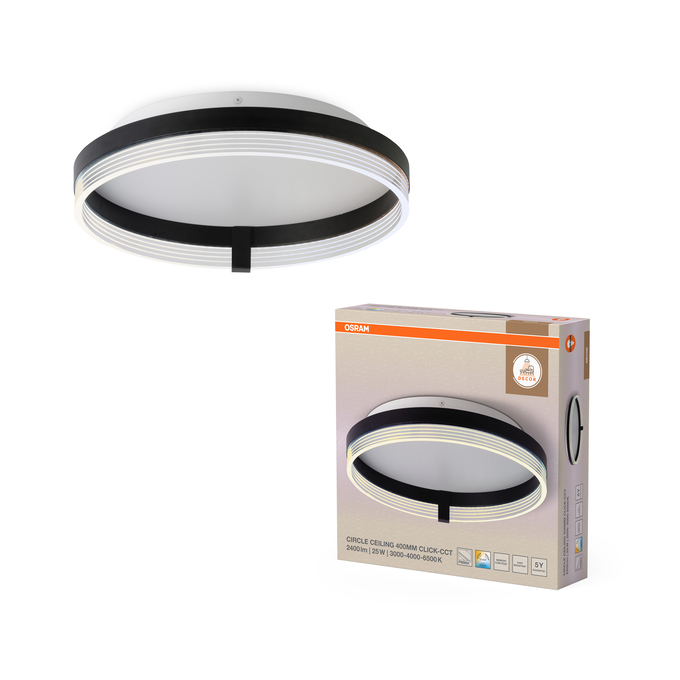

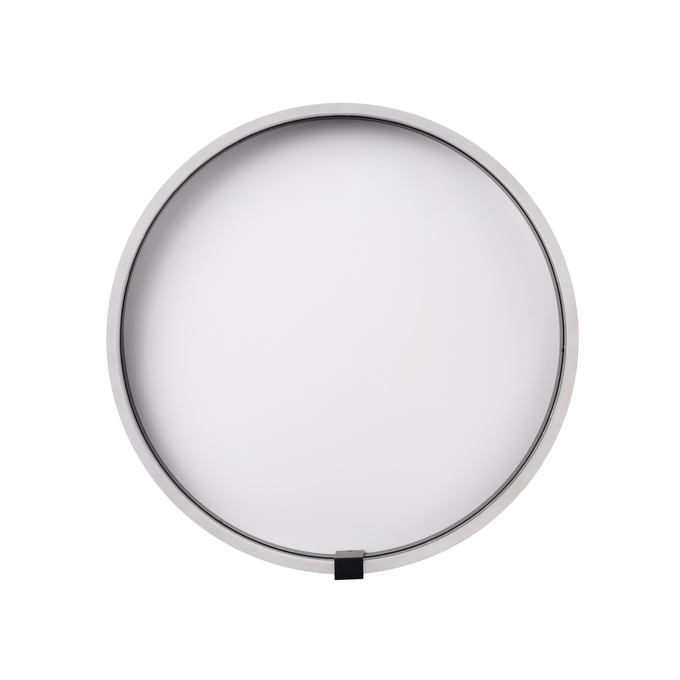

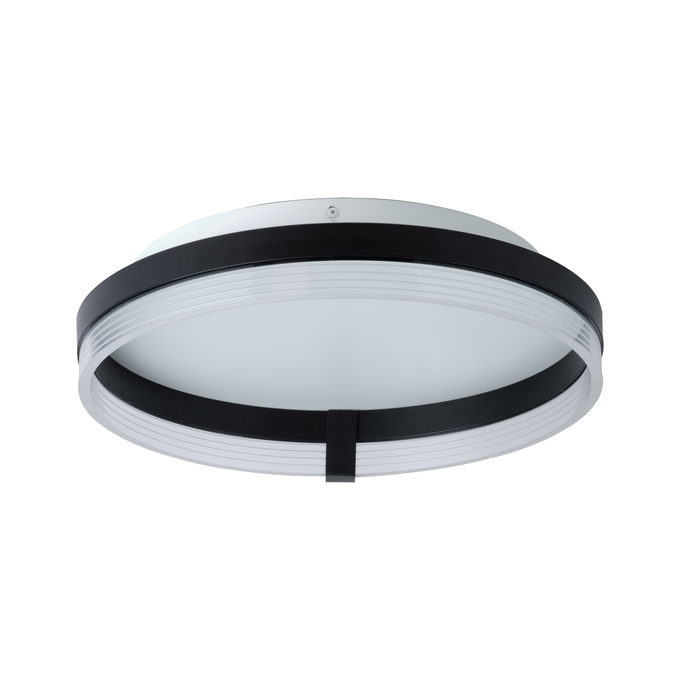

Decor Circle Ceiling 400 25W CLICKCCT Black
4058075847309
Product benefits
- High-quality look and feel
- Minimalistic design with elegant decorative lighting
- Different types of luminaires with the same design language maintain a consistent style at home
- Easy mounting
- Highly versatile due to selectable CCT
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
Product features
- Housing material: acrylic
- High-power LED
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
105 °
Body material
Polymethylmethacrylate (PMMA)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Diameter
400.00 mm
Dimmable
No
Flickering metric (Pst LM)
0.6
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075847309
Height
94.00 mm
Housing color
Black
Inrush current time Th50
192 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
54 lm/W
Luminous flux
1350 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
387
Max. number of luminaires per miniature circuit breaker C10
242
Max. number of luminaires per miniature circuit breaker C16
387
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
112.000 mA
Nominal voltage
220…240 V
Nominal wattage
25.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1920.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
3000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
0,15
Temperature range at storage
-20…+80 °C
Total harmonic distortion
7 %
Total luminous flux of contained light sources
2400 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP20
With light source
Yes
