Decor Butterfly Ceiling 40W Tunable White DIM Remote Control White
4058075856806
Product benefits
- Color temperature adjustment for different application needs
- Set light output from 0-100% for personal comfort
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- White adjustment (CCT) from 2700 K...6000 K via remote control
- Dimmable
Equipment / Accessories
- Mounting screws and dowels included

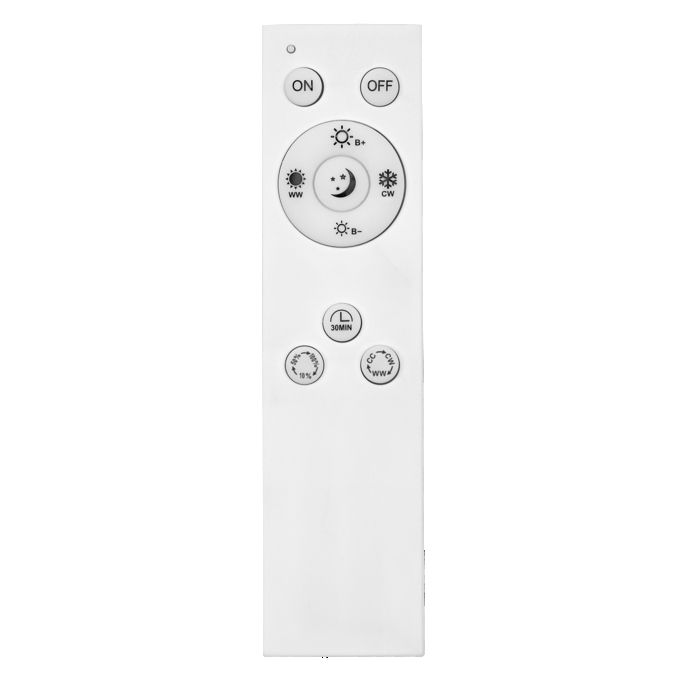

- Batteries required for remote control: 2xAAA (not included)
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
290 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
2600…6000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Silicone
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075856806
Height
85.00 mm
Housing color
White
Inrush current
3 A
Inrush current time Th50
100 µs
Length
540.00 mm
Light color (designation)
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
77 lm/W
Luminous flux
3100 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
73
Max. number of luminaires per miniature circuit breaker C10
41
Max. number of luminaires per miniature circuit breaker C16
66
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
185 mA
Nominal voltage
220…240 V
Nominal wattage
40.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1260.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
2700 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
4700 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
Width
580.00 mm
With light source
Yes
