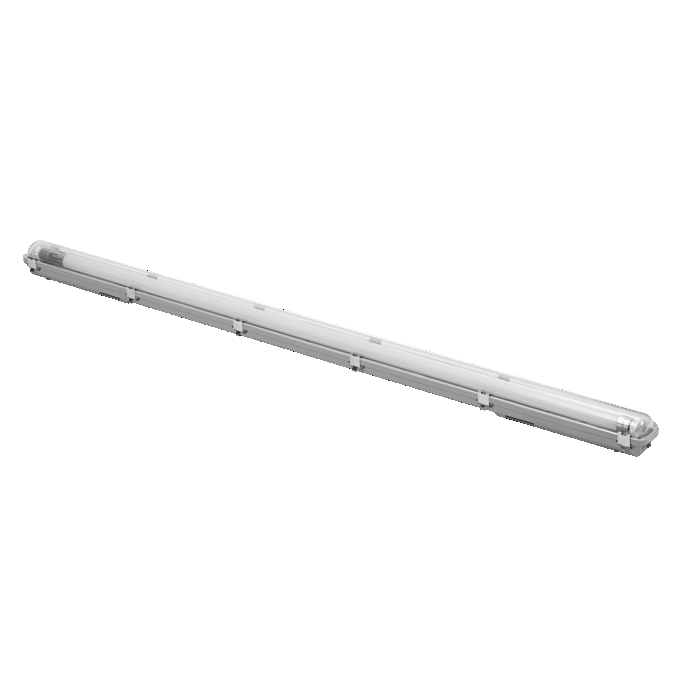

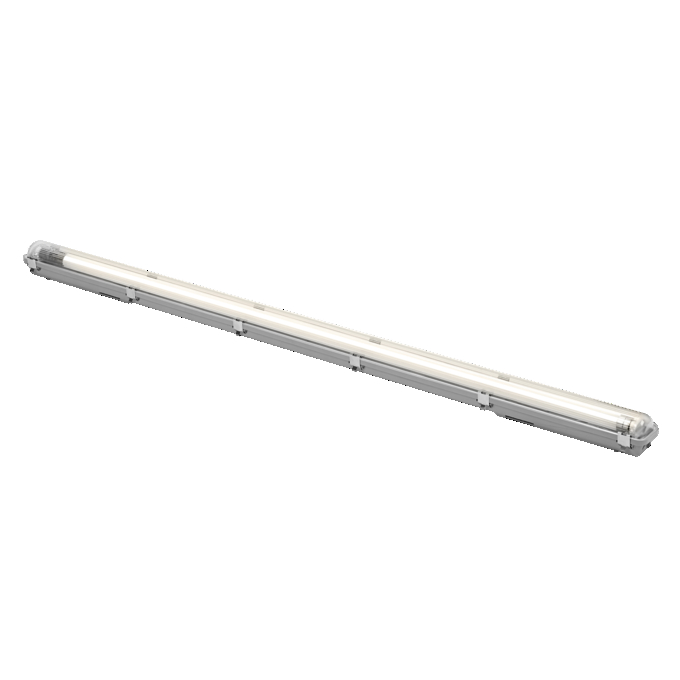

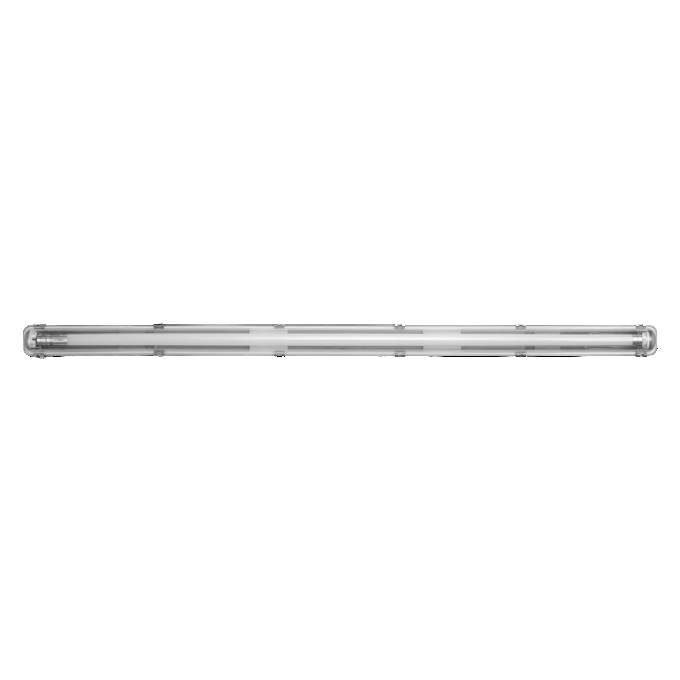

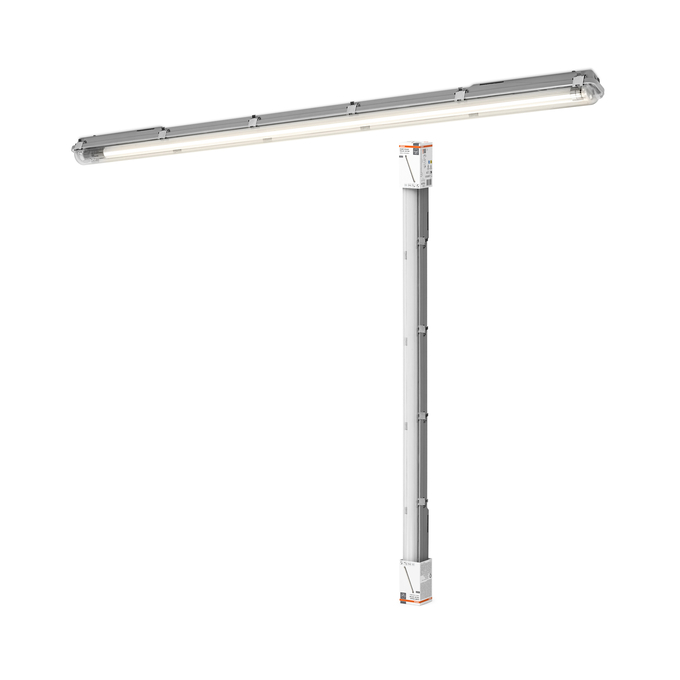

Damp proof value 120cm 1X16W 840
4058075851221
Product benefits
- Suitable for use in dusty and damp outdoor locations thanks to high IP rating
Areas of application
- Basements, garages, warehouses
Product features
- Damp-proof luminaire with LED tube for mains voltage operation
Equipment / Accessories
- LED Tube is delivered with the product
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
130 °
Body material
Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075851221
Height
65.00 mm
Holder designation
G13
Housing color
Gray
Inrush current
12.5 A
Inrush current time Th50
1.1 µs
Length
1277.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
81 lm/W
Luminous flux
1300 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
60
Max. number of luminaires per miniature circuit breaker C10
48
Max. number of luminaires per miniature circuit breaker C16
76
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
130 mA
Nominal voltage
220…240 V
Nominal wattage
16 W
Number of illuminants
1
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.50
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product weight
741.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
0.4
Total harmonic distortion
150 %
Total luminous flux of contained light sources
1800 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP65
Width
65.00 mm
With light source
Yes
