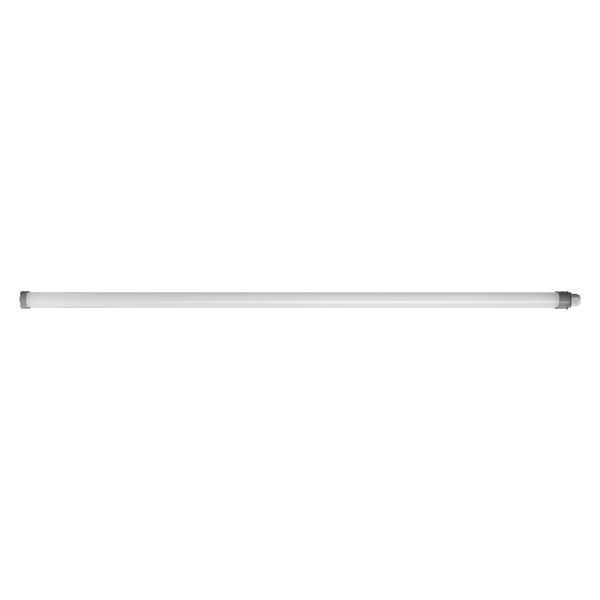

Damp proof Essential Extrusion 36W 1200mm 840
4099854428739
Product benefits
- Easy installation
- Suitable for use in dusty and damp outdoor locations thanks to high IP rating
Areas of application
- Basements, garages, warehouses
Product features
- Robust damp-proof luminaire made from the same mold
- Easy connectable cable gland
Equipment / Accessories
- All required accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
140 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854428739
Height
47.70 mm
Housing color
White
Inrush current time Th50
103 µs
Length
1240.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
4320 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
45
Max. number of luminaires per miniature circuit breaker C10
37
Max. number of luminaires per miniature circuit breaker C16
59
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
160.000 mA
Nominal voltage
220…240 V
Nominal wattage
36.00 W
Number of illuminants
Not relevant
Number of switching cycles
15000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
364.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
5000 lm
Type of connection
Cable, 2-pole
Type of protection
IP65
Width
36.70 mm
With light source
Yes
