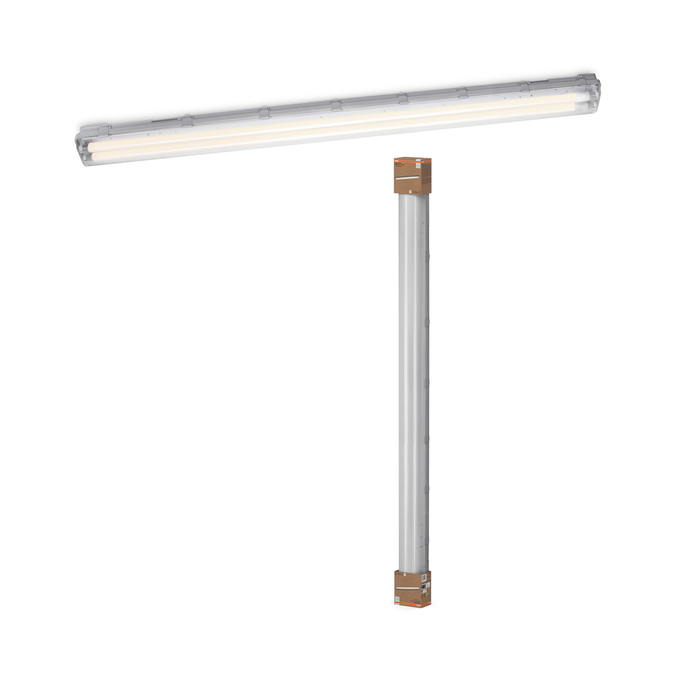

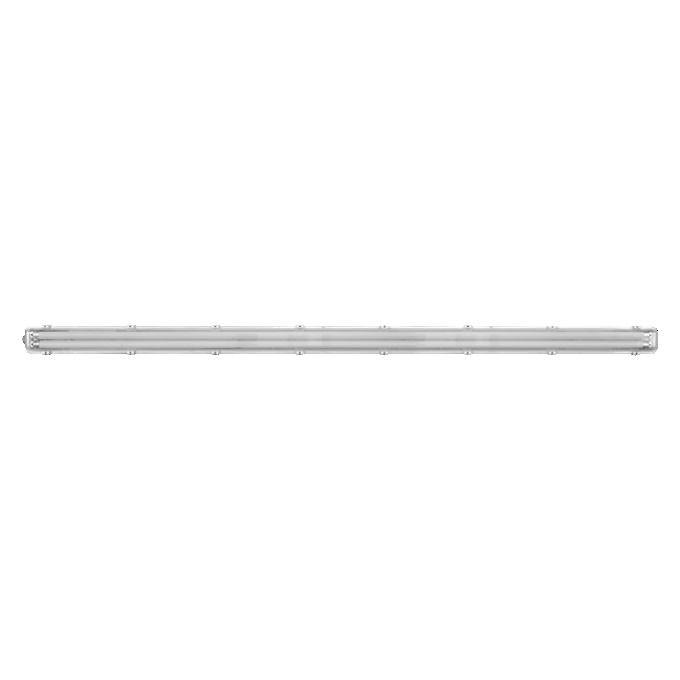

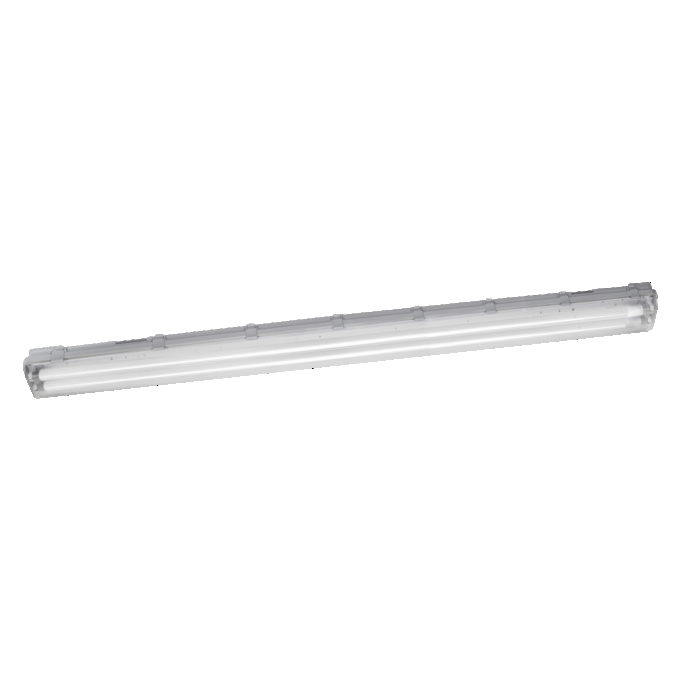

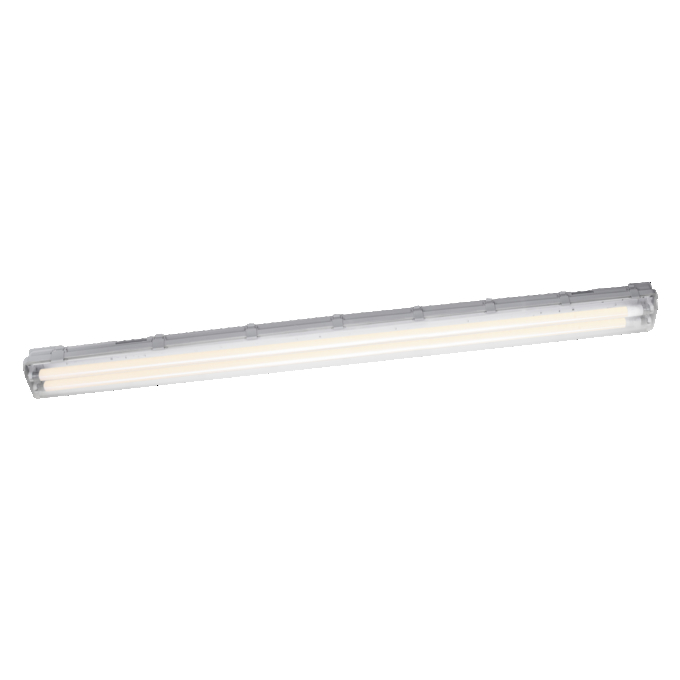

Damp proof Essential 2x19W 1500mm 840
4099854428814
Product benefits
- Suitable for use in dusty and damp outdoor locations thanks to high IP rating
Areas of application
- Basements, garages, warehouses
Product features
- Damp-proof luminaire with LED tube for mains voltage operation
Equipment / Accessories
- LED Tube is delivered with the product
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854428814
Height
64.00 mm
Holder designation
G13
Housing color
Grey
Inrush current time Th50
482 µs
Length
1561.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
89 lm/W
Luminous flux
3400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
12
Max. number of luminaires per miniature circuit breaker C10
12
Max. number of luminaires per miniature circuit breaker C16
20
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
170.000 mA
Nominal voltage
220…240 V
Nominal wattage
38.00 W
Number of illuminants
2
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
1354.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Replaceable light source
Yes
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
4370 lm
Type of connection
Cable, 2-pole
Type of protection
IP65
Width
108.00 mm
With light source
Yes
