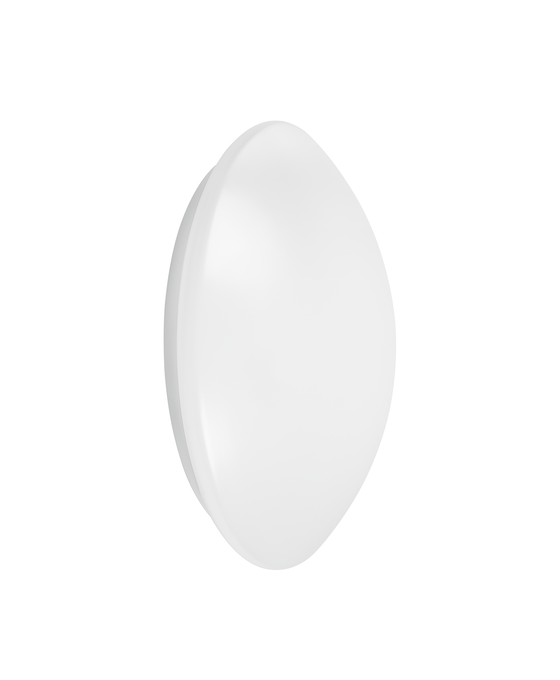

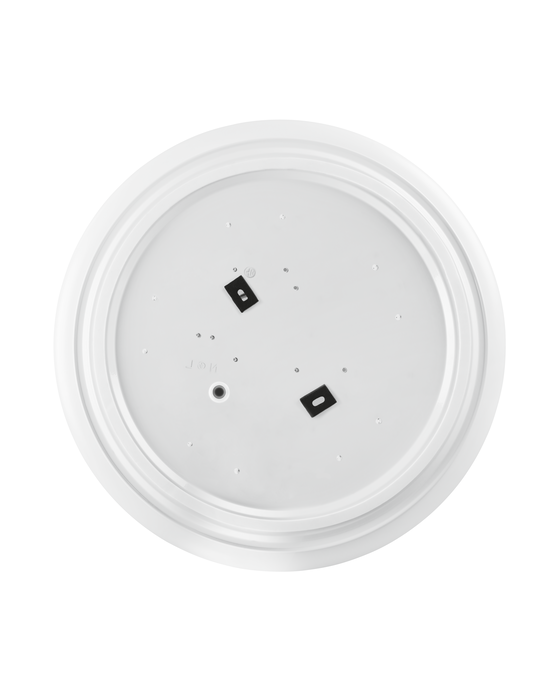

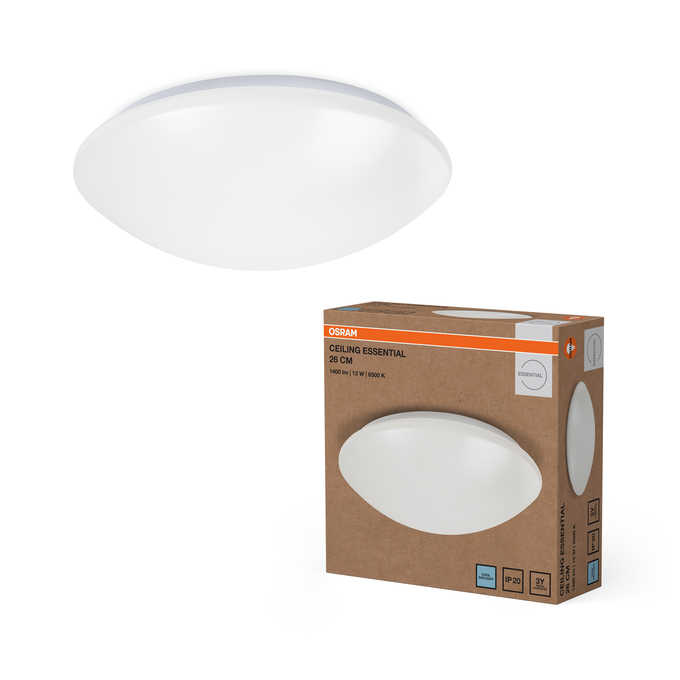

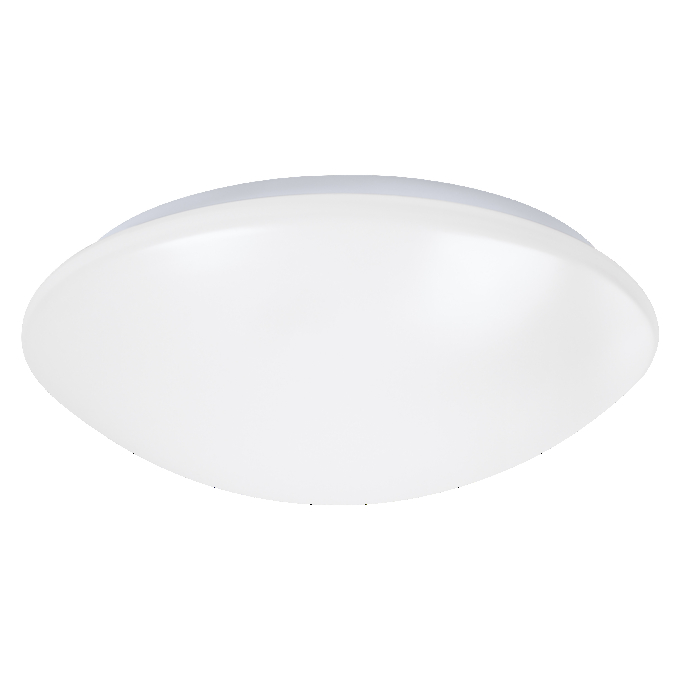

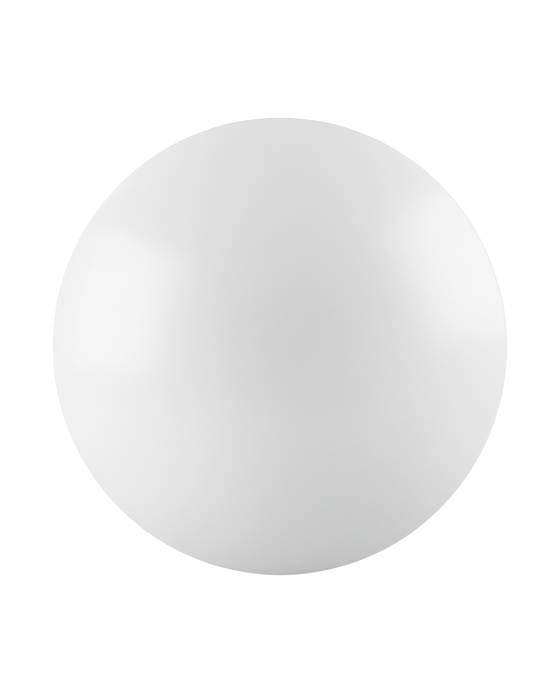

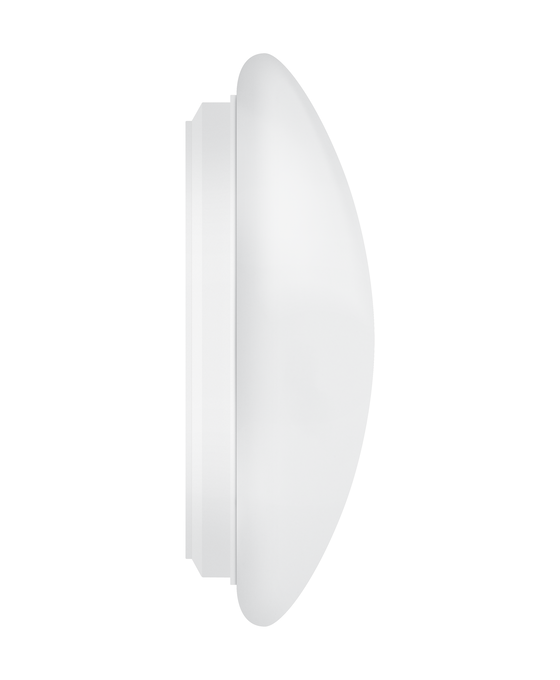

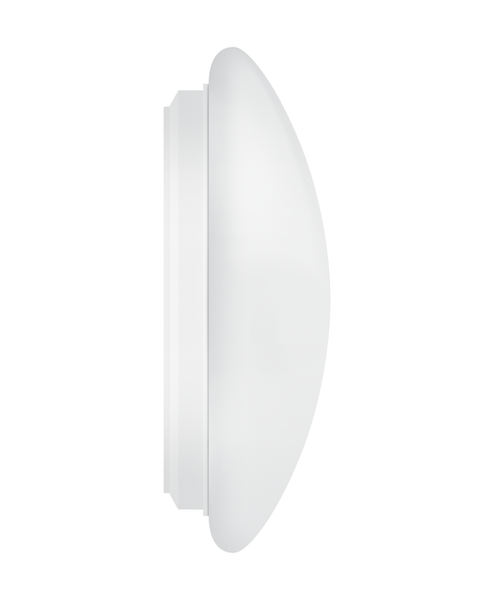

Ceiling Essential 260mm 13W 865
4099854445262
Product benefits
- Simple installation thanks to light-weight design
- Decorative wall light
Areas of application
- Living areas
Product features
- Wall and ceiling luminaire
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Plastic
Color rendering index Ra
> 80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polymethylmethacrylate (PMMA)
Diameter
250.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854445262
Height
91.00 mm
Housing color
White
Inrush current time Th50
6.6 µs
Lifespan L70/B50 at 25 °C
20000 h 1)
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
73 lm/W
Luminous flux
960 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
98
Max. number of luminaires per miniature circuit breaker C16
123
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
65.000 mA
Nominal voltage
220…240 V
Nominal wattage
13.00 W
Number of switching cycles
15000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.70
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
330.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 70 %
Total luminous flux of contained light sources
1500 lm
Type of connection
Cable, 3-pole
Type of protection
IP20
With light source
Yes
