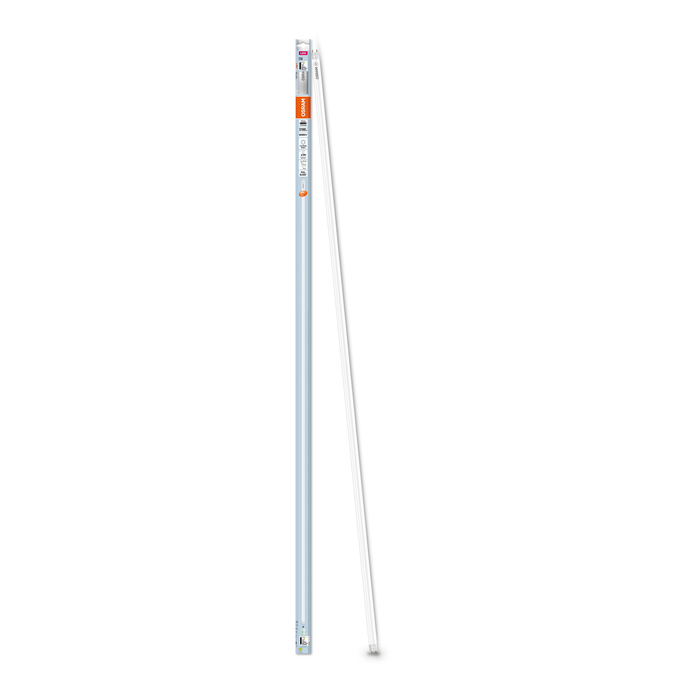

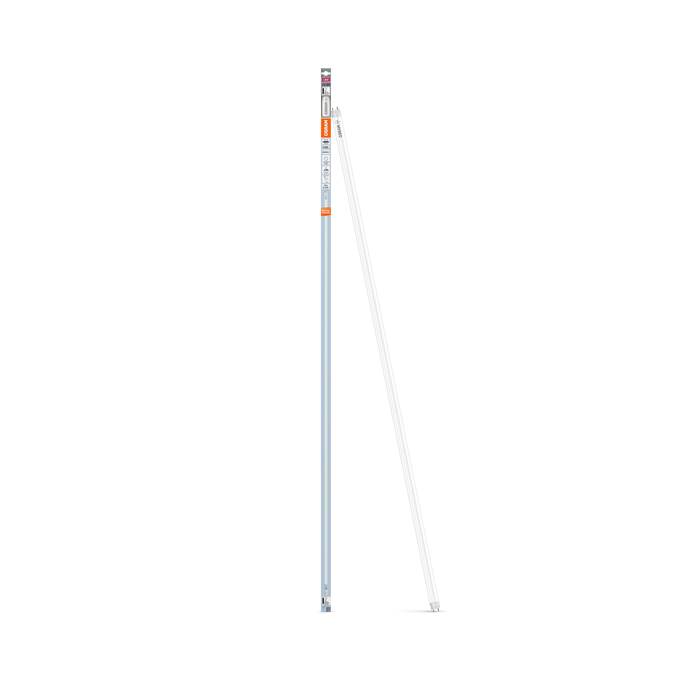

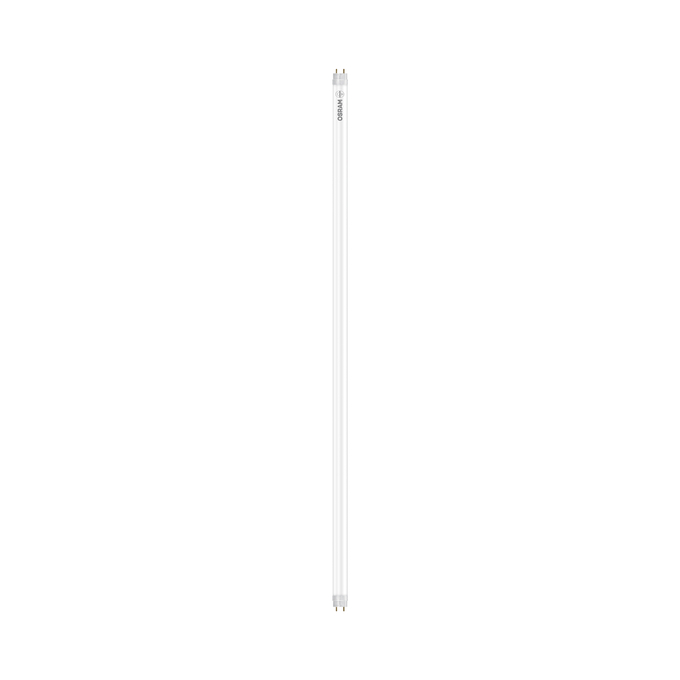

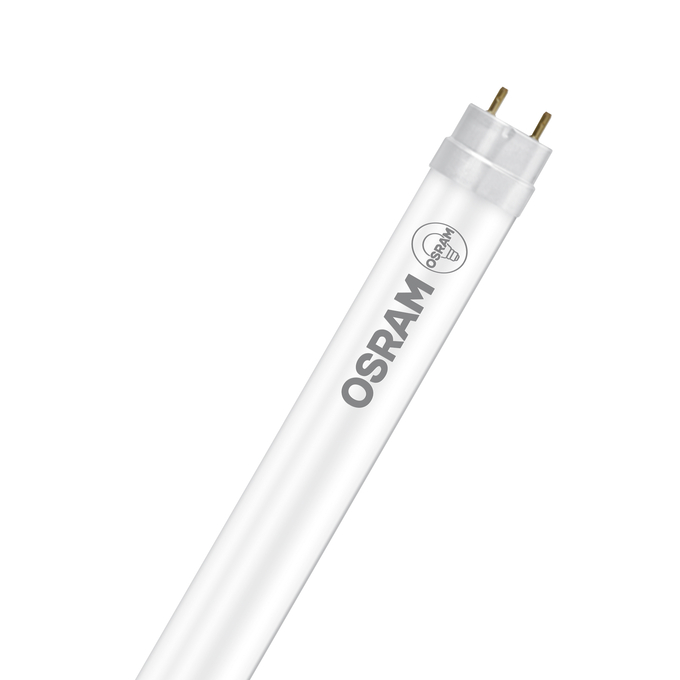

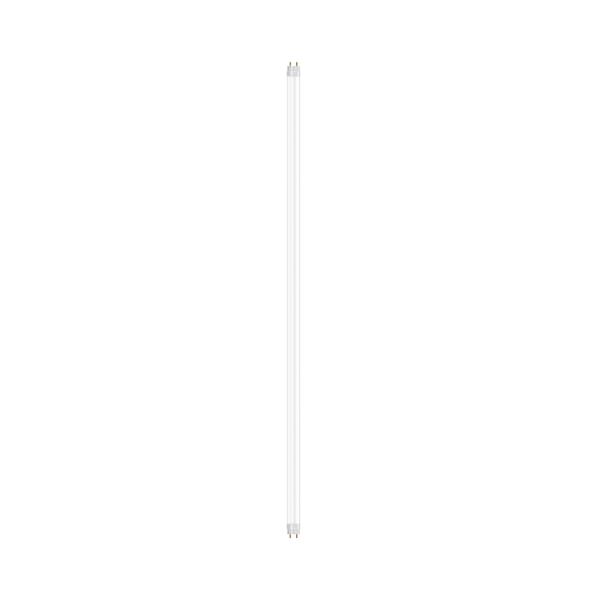

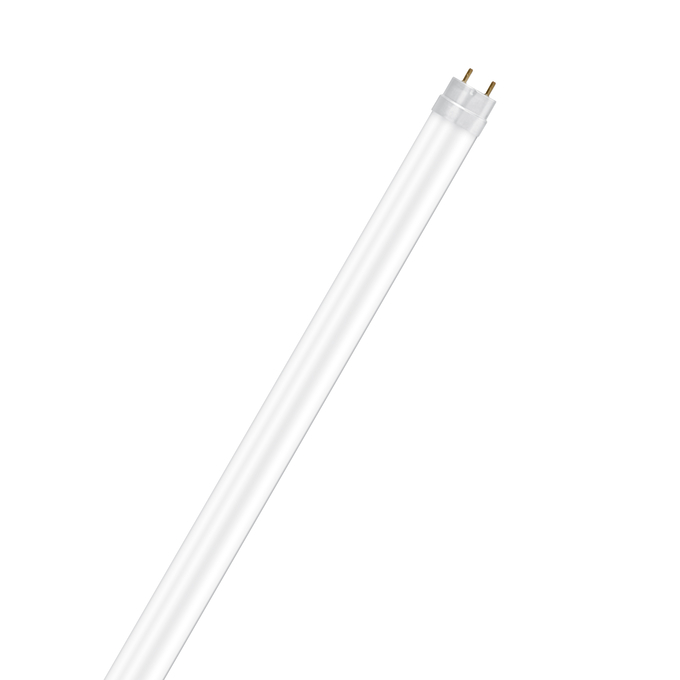

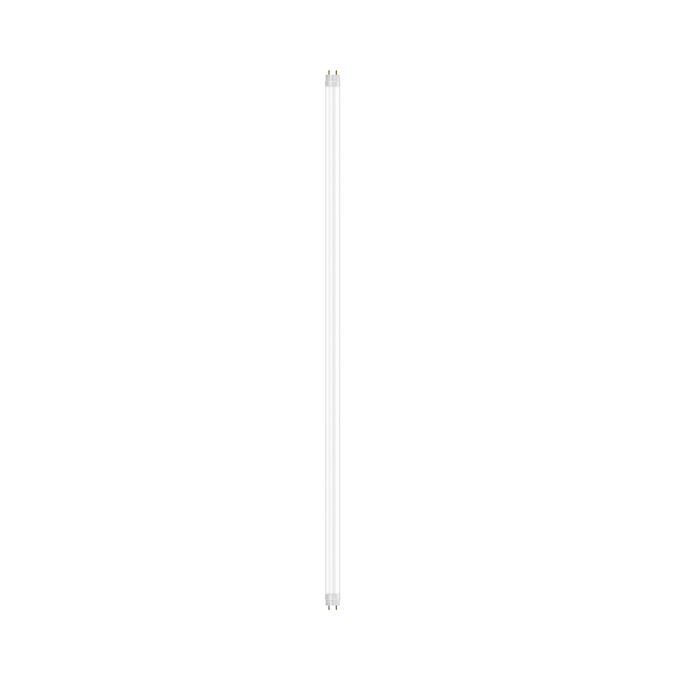

LED TUBE T8 58 EM MOTION SENSOR 1500 mm 19.3W 840
4099854045349
Product benefits
- Energy savings of up to 67 % compared to conventional fluorescent lamp
- Quick, simple and safe replacement of fluorescent lamps
- Suitable for closed luminaires thanks to microwave technology
- No bending thanks to glass tube
- Shatter protection thanks to special PET coating
- Very high resistance to switching loads
- Also suitable for operation at low temperatures
Areas of application
- General illumination within ambient temperatures from -20…+50 °C
- Corridors, stairways, parking garages
- Domestic applications
- Secondary rooms, garages, storerooms, cellars
Product features
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires
- Integrated microwave sensor with motion detection
- Automatic dimming to 20 % light output after 5 minutes without motion detection
- Automatic light switch off 7 minutes after the last motion detection
- Microwave sensor with 5,8 GHz
- Motion detection up to 5 m
Equipment / Accessories
- Suitable for operation with low-loss and conventional control gears
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Not suitable for operation with electronic control gear.
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- Recommended maximum mounting height: 5 m
- Not suitable for emergency lighting.
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-20…+50 °C 1)
Anti-glare shield
No
Base (standard designation)
G13
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,3818
Chromaticity coordinate y
0.3797
Claim of equivalent power
No
Color rendering index Ra
≥80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
26.70 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
20.00 kWh/1000h
Energy efficiency class
C 1)
Envelope
No
EPREL ID
1351269
Flickering metric (Pst LM)
1
GTIN
4099854045349
Height
26.70 mm
High luminance light source
No
Inrush current
10.90 A
LED light source replaces a fluorescent light source
No
Length
1513.00 mm
Length with base excl. base pins/connection
1500.00 mm
Lifespan L70/B50 at 25 °C
60000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
160 lm/W
Luminous flux
3100 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
55
Max. lamp number on MCB B10 A - CCG with compensation
14
Max. lamp number on MCB B10 A - CCG without compensation
55
Max. lamp number on MCB B16 A
68
Max. lamp number on MCB B16 A - CCG with compensation
23
Max. lamp number on MCB B16 A - CCG without compensation
68
Maximum temperature at tc test point
70 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC45304,AC45304
Nominal current
88 mA
Nominal voltage
220…240 V
Nominal wattage
19.3 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
Conventional control gear (CCG), AC Mains
Order reference
LEDTUBE T8 58 E
Overall length
1513.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
275.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤5 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Total harmonic distortion
< 20 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
26.70 mm
