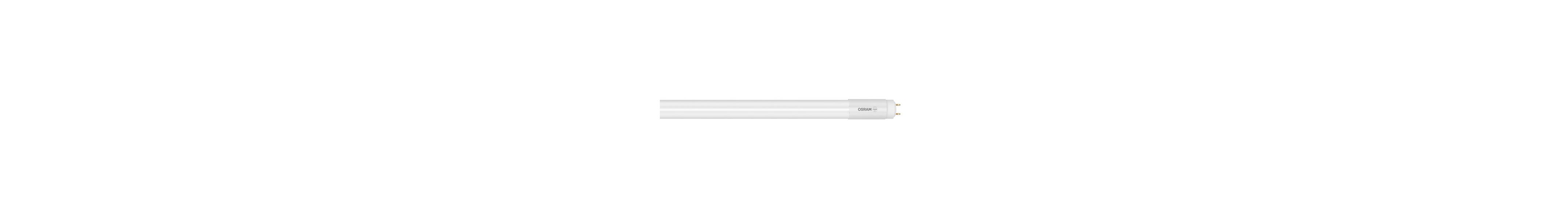

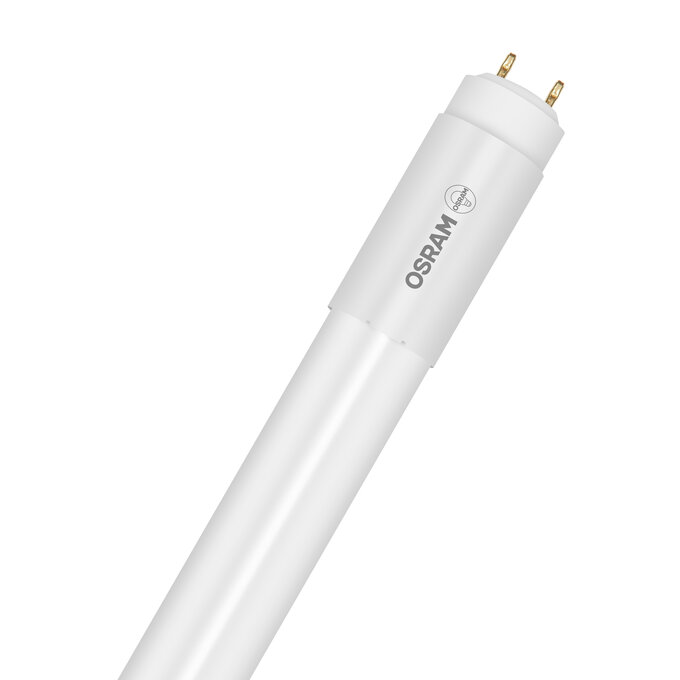

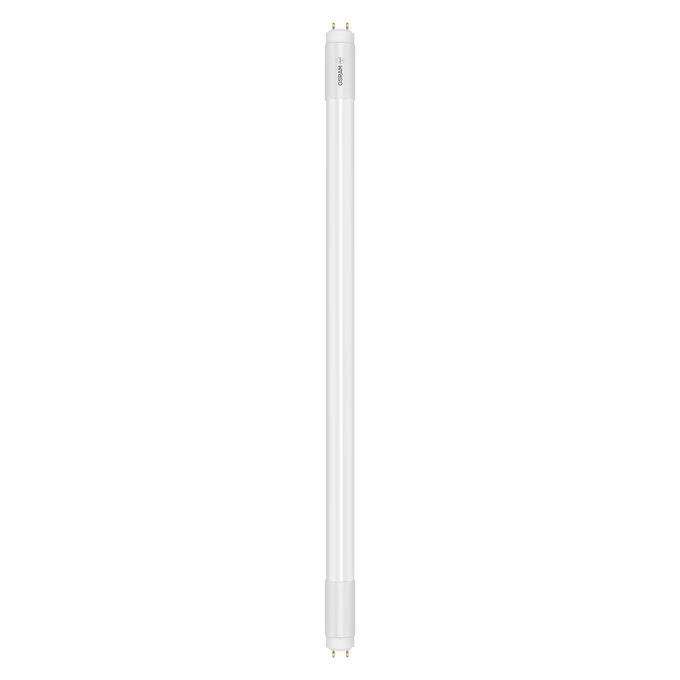

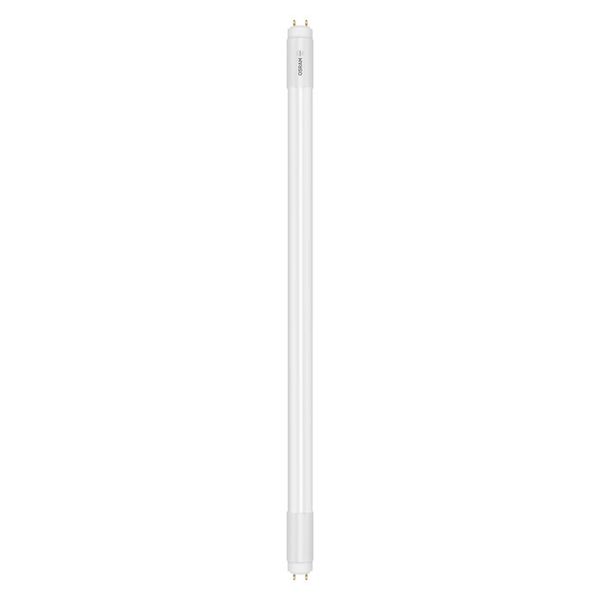

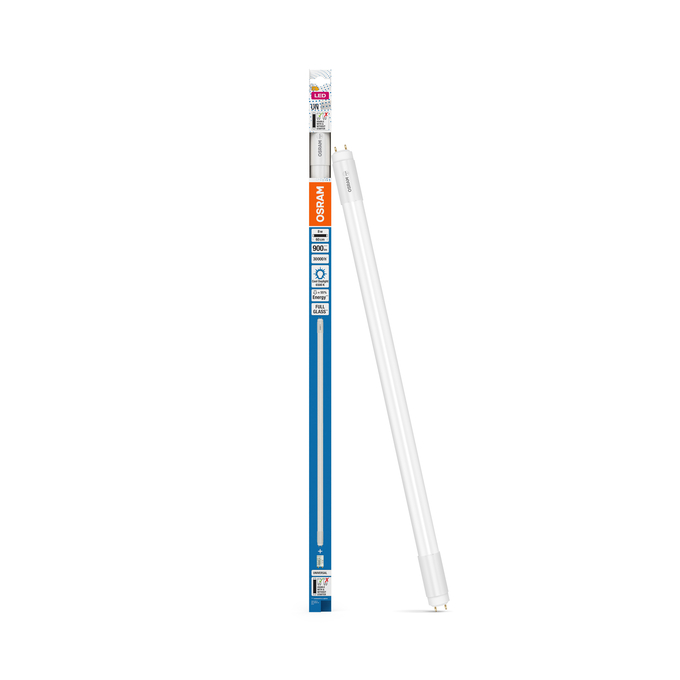

LED TUBE T8 18 UNIVERSAL 600 mm 8W 865
4099854033308
Product benefits
- High color homogeneity
- Energy savings of up to 58 % (compared to T8 fluorescent lamp)
- Instant flickerfree starting
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Corridors, stairways, parking garages
- Domestic applications
Product features
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires and many common ECG luminaires (see compatibility list) or on AC mains
- T8 LED tube made of glass with G13 base
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- Mercury-free and RoHS compliant
- Type of protection: IP20
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
- Not suitable for emergency lighting.
References / Links
- For current information see
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
G13
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.3123
Chromaticity coordinate y
0.3283
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
6500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Diameter
27.80 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
8.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1317774,1407620
Flickering metric (Pst LM)
1.0
GTIN
4099854033308
Height
27.80 mm
High luminance light source
No
Inrush current
7 A
LED light source replaces a fluorescent light source
No
Length
603.00 mm
Length with base excl. base pins/connection
600.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color
865
Light color (designation)
Cool Daylight
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
112 lm/W
Luminous flux
900 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
190
Max. lamp number on MCB B10 A - CCG with compensation
37
Max. lamp number on MCB B10 A - CCG without compensation
190
Max. lamp number on MCB B16 A
305
Max. lamp number on MCB B16 A - CCG with compensation
62
Max. lamp number on MCB B16 A - CCG without compensation
305
Maximum temperature at tc test point
60 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC42594,AC47854,AC47854
Nominal current
39 mA
Nominal voltage
220…240 V
Nominal wattage
8 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
ECG / CCG / Mains
Order reference
LEDTUBE T8 18 U
Overall length
603.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.80
Product recyclability
Mostly recyclable product 1)
Product remark
The declared values in the data sheet refer to the operation of the LED tube on AC mains operation 230VAC 50Hz
Product weight
153.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Standard deviation of color matching
≤5 sdcm
Standards
CE
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
˃0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 30 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
27.80 mm
