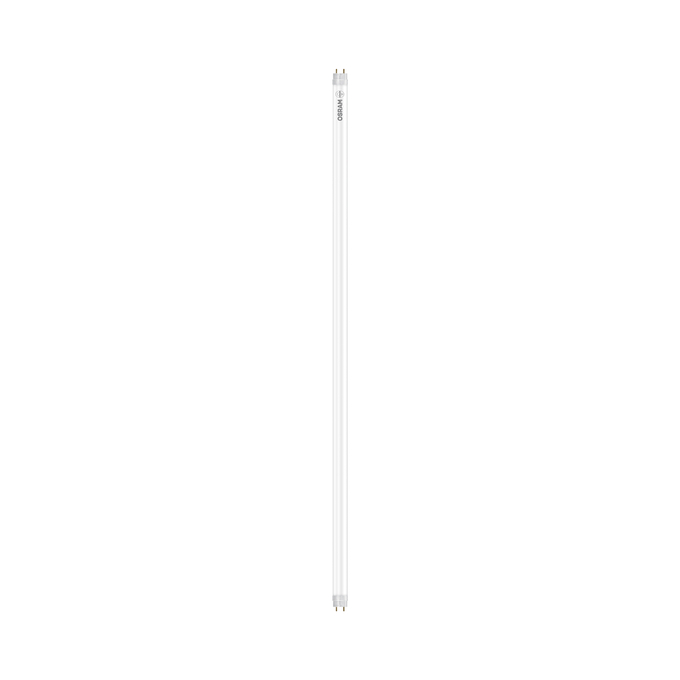

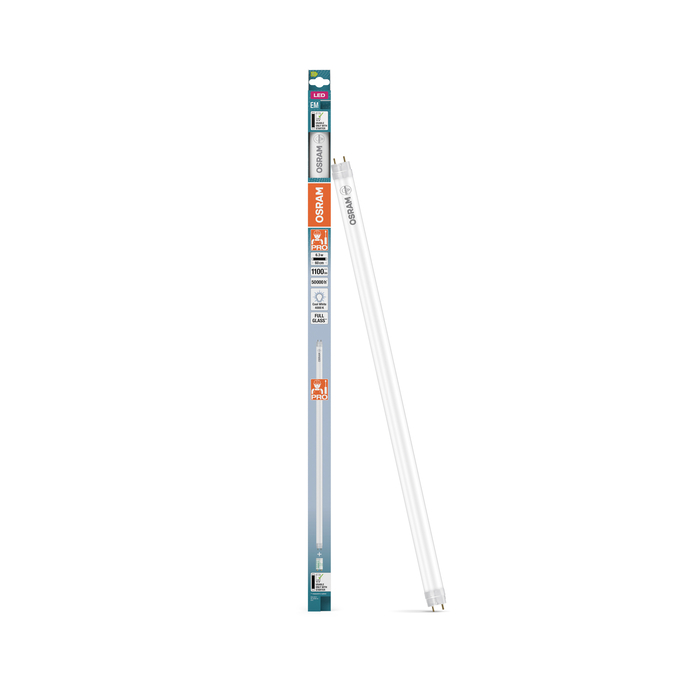

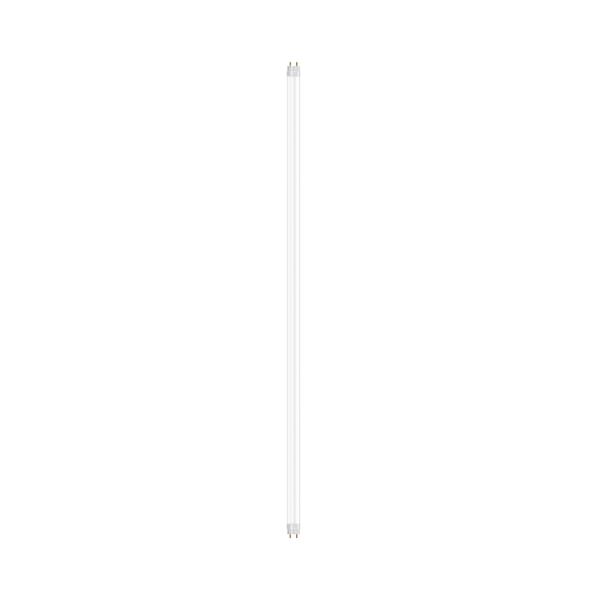

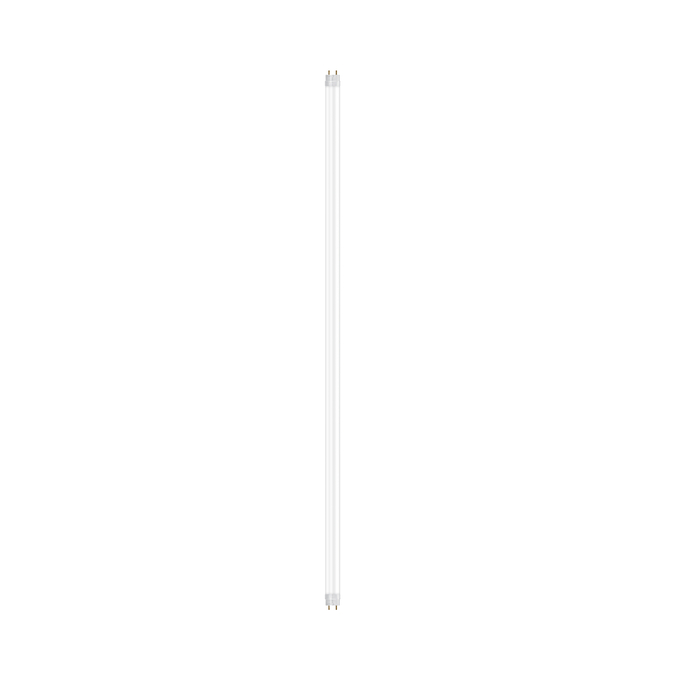

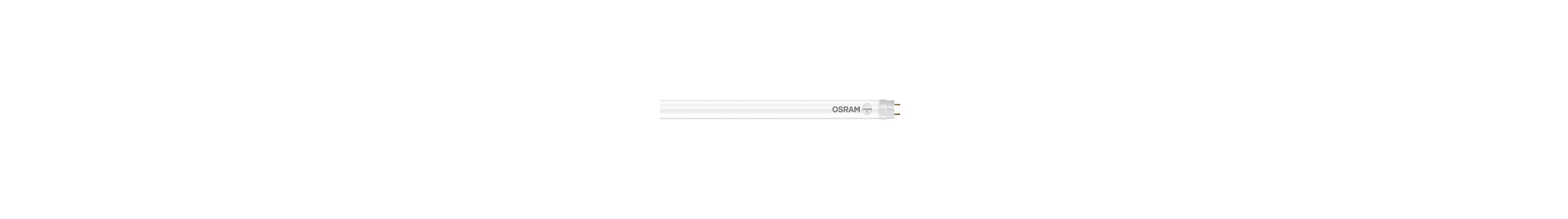

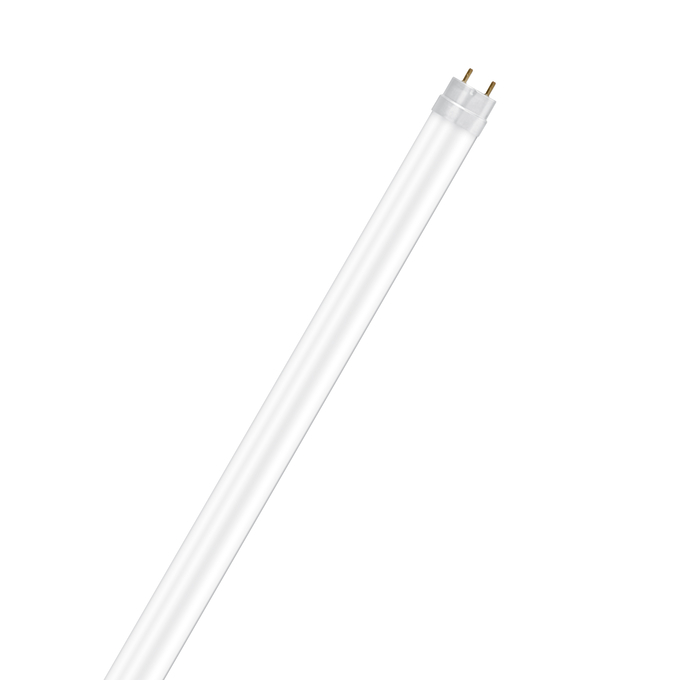

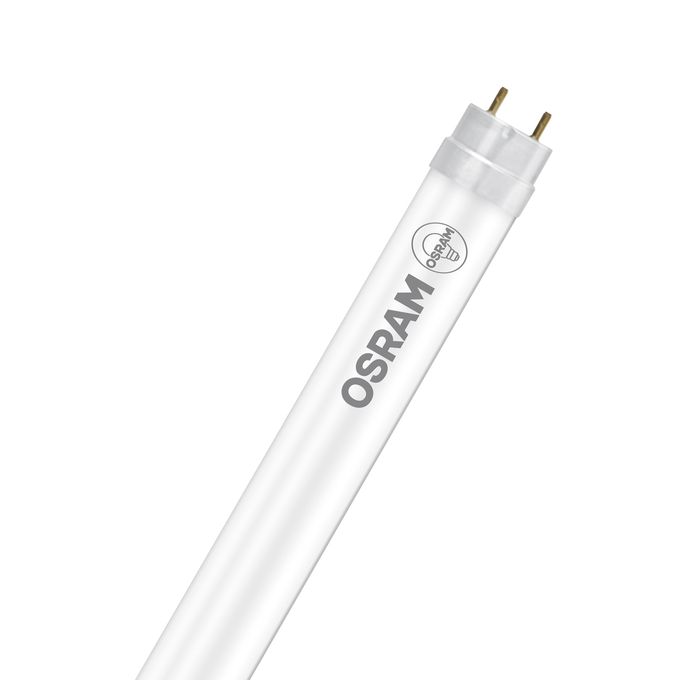

LED TUBE T8 18 EM PRO 600 mm 6.3W 840
4099854753176
Product benefits
- High luminous flux for sophisticated lighting tasks
- Energy savings of up to 71 % compared to conventional T8 fluorescent lamps
- Instant flickerfree starting
- Very high resistance to switching loads
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Corridors, stairways, parking garages
- Domestic applications
Product features
- LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires
- T8 LED tube made of glass with shatter protection
- Very long lifetime of up to 50,000 h
- Mercury-free and RoHS compliant
- Type of protection: IP20
Equipment / Accessories
- Suitable for operation on magnetic control gear
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The Tc Point is located underneath the product label on the front side of the lamp.
- Not suitable for emergency lighting.
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
G13
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.3818
Chromaticity coordinate y
0.3797
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Diameter
26.00 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
7.00 kWh/1000h
Energy efficiency class
C 1)
Envelope
No
EPREL ID
2497881
Flickering metric (Pst LM)
1
GTIN
4099854753176
Height
26.00 mm
High luminance light source
No
Input voltage DC
186…260 V
Inrush current
3.04 A
LED light source replaces a fluorescent light source
No
Length
604.00 mm
Length with base excl. base pins/connection
600.00 mm
Lifespan L70/B50 at 25 °C
50000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
G13
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
174 lm/W
Luminous flux
1100 lm
Mains frequency
50/60 Hz 1)
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
197
Max. lamp number on MCB B10 A - CCG with compensation
30
Max. lamp number on MCB B10 A - CCG without compensation
85
Max. lamp number on MCB B16 A
247
Max. lamp number on MCB B16 A - CCG with compensation
38
Max. lamp number on MCB B16 A - CCG without compensation
107
Maximum temperature at tc test point
65 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC89720,AC89720
Nominal current
30 mA
Nominal voltage
220…240 V
Nominal wattage
6.3 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
CCG, AC Mains
Order reference
LEDTUBE T8 18 E
Overall length
604.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
54 °C 2)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
100.00 g
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤5 sdcm
Standby power
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Suitable for DC input
Yes
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
26.00 mm
