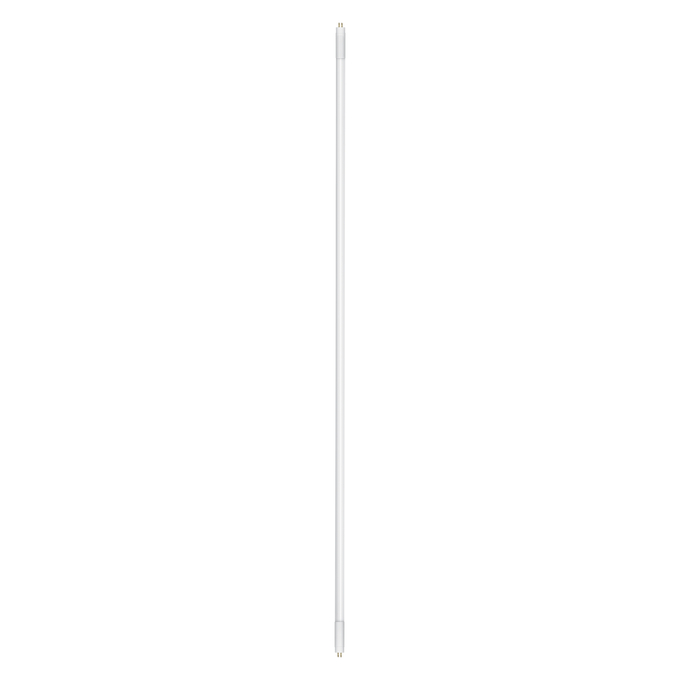

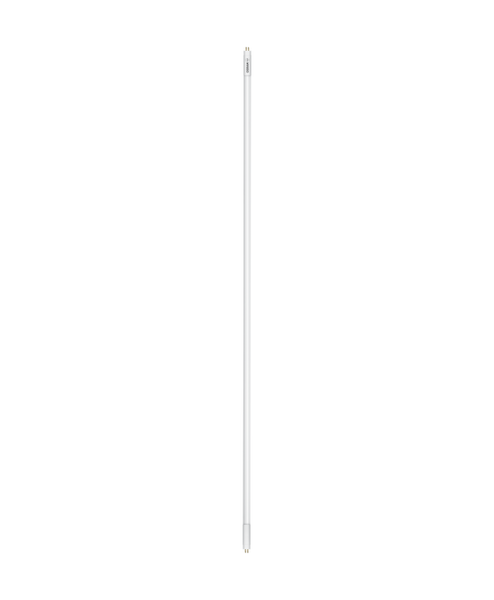

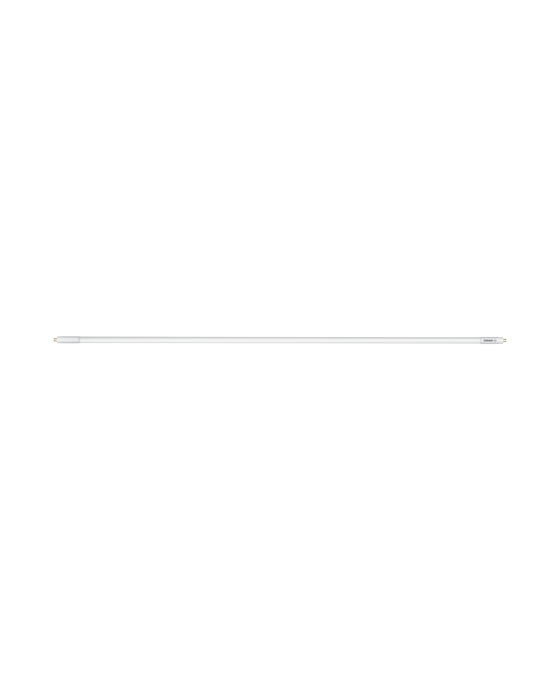

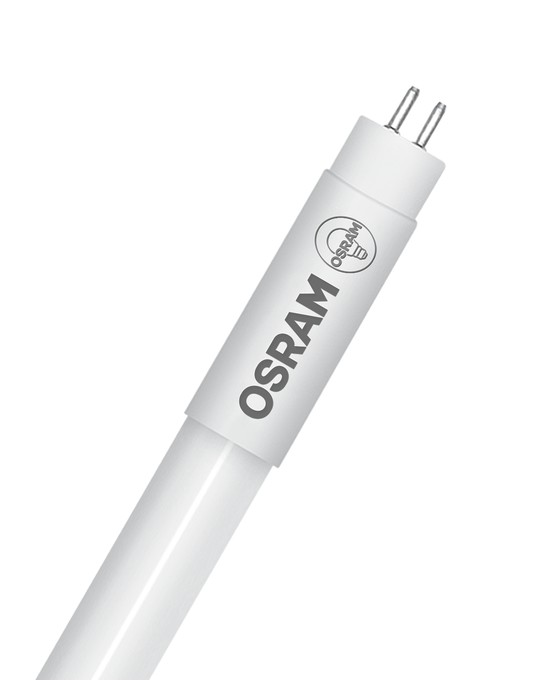

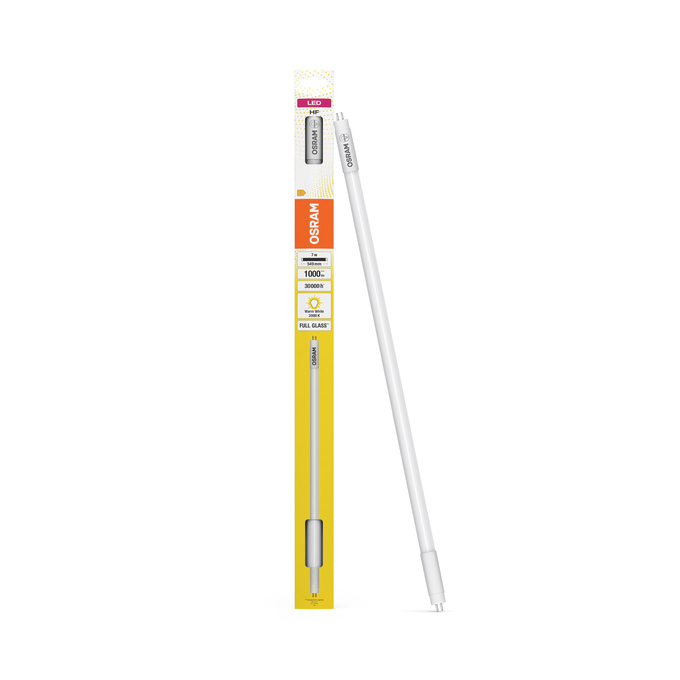

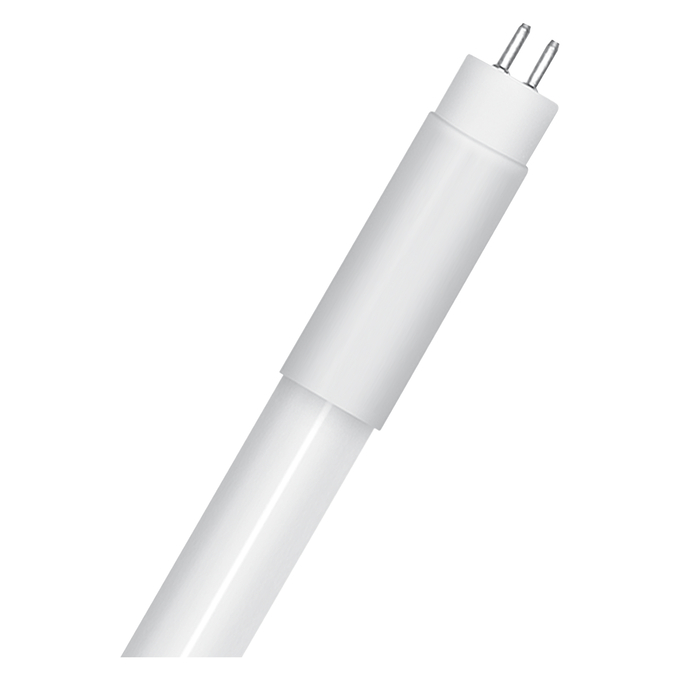

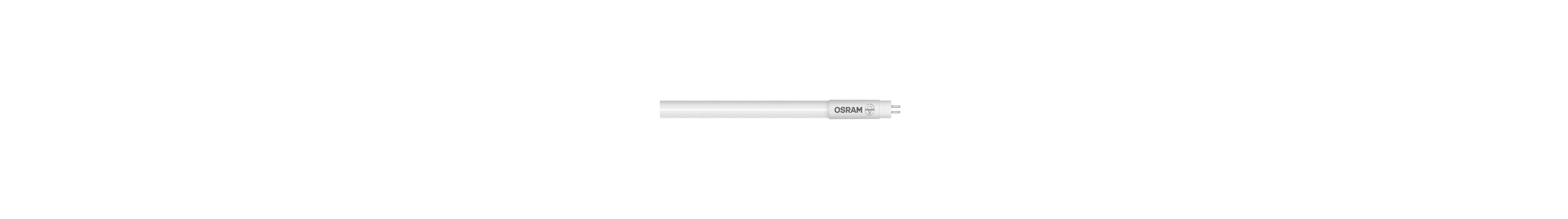

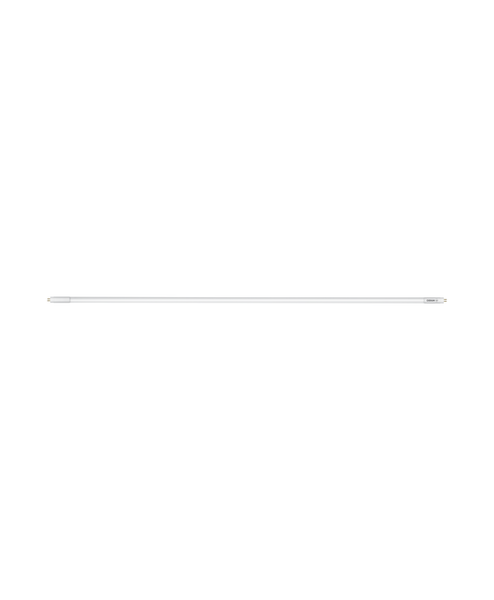

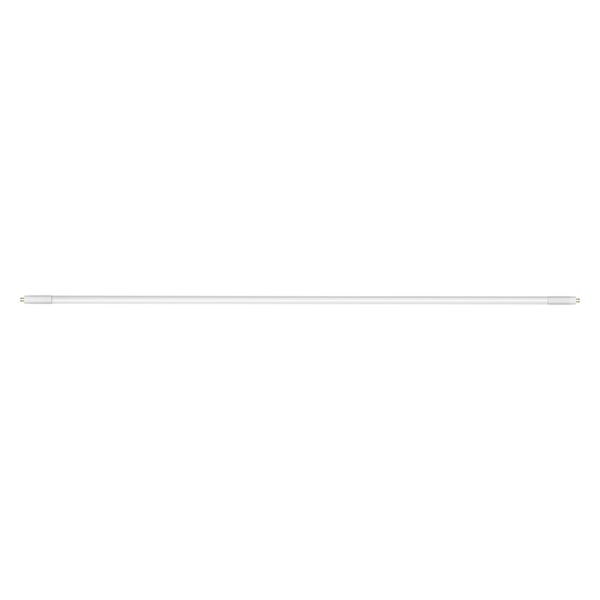

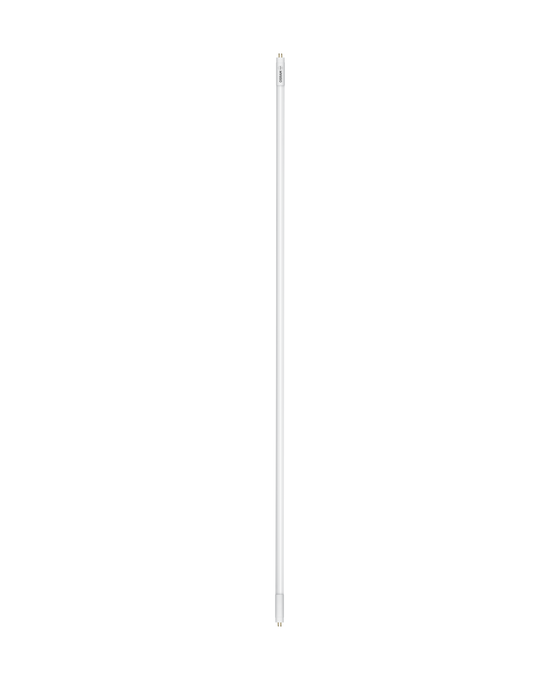

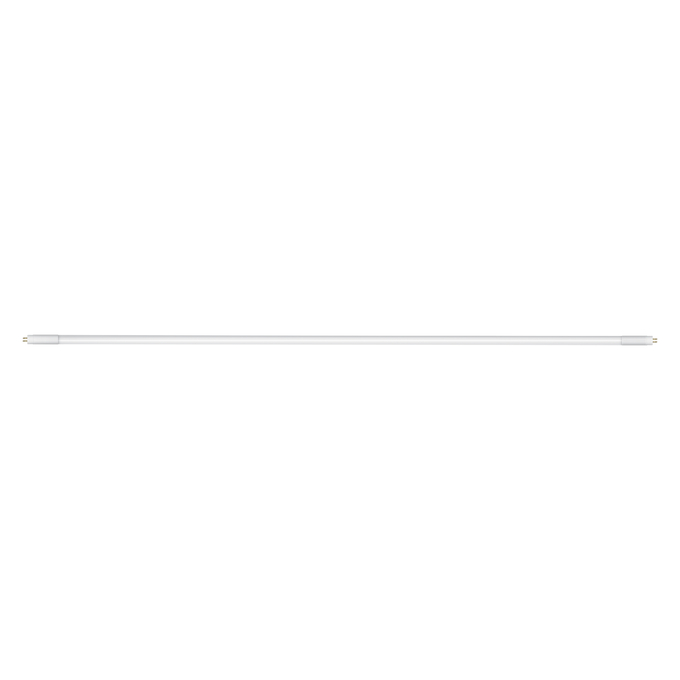

LED TUBE T5 HF HE14 549 mm 7W 830
4058075823891
Product benefits
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- High luminous flux for sophisticated lighting tasks
- Also suitable for operation at low temperatures
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Offices, public buildings
- Supermarkets and department stores
- Industry
Product features
- Retrofit replacement of existing T5 lamps on HF ballast installations
- Lamp tube made of glass with splinter protection e.g. for food industry applications
- High color consistency: ≤ 5 sdcm
- Lifetime up to 30,000 h
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- Type of protection: IP20
- Compatible with many common electronic control gears (see also )
Legal advice
- When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- Not suitable for emergency lighting.
References / Links
- For current information see
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
G5
Beam angle
190 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.434
Chromaticity coordinate y
0.403
Claim of equivalent power
No
Color rendering index Ra
80
Color temperature
3000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
18.50 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
7.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1407637,1317788,2209922
Flickering metric (Pst LM)
1
GTIN
4058075823891
Height
18.50 mm
High luminance light source
No
Inrush current
12 A
LED light source replaces a fluorescent light source
No
Length
563.00 mm
Length with base excl. base pins/connection
549.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color
830
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
G5
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
142 lm/W
Luminous flux
1000 lm
Mains frequency
25…75 kHz
Mains or non-mains
NMLS
Max. lamp number on MCB B10 A
17
Max. lamp number on MCB B16 A
28
Maximum temperature at tc test point
70 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC44162,AC38767,AC70954,AC70954
Networked standby power for CLS
0 W
Nominal current
185 mA
Nominal voltage
40…70 V
Nominal wattage
7 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
25…75 kHz
Operating mode
Electronic control gear (ECG)
Order reference
LEDTUBE T5 HF H
Overall length
563.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Performance temp. acc. to IEC 62717
50 °C 2)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.80
Product recyclability
Mostly recyclable product 1)
Product weight
77.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤5 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
20 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 2.00 s
Width
18.50 mm
