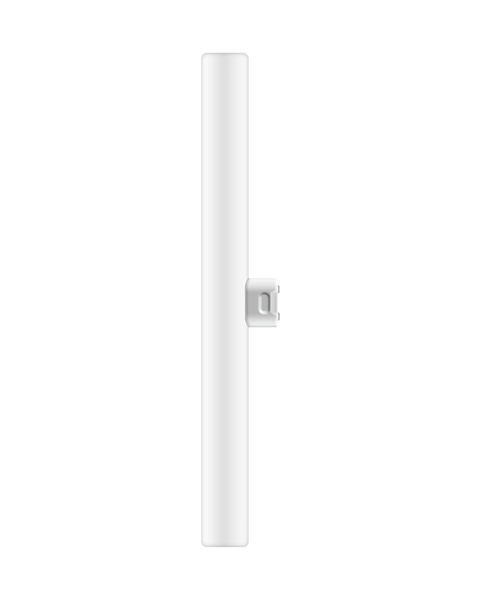

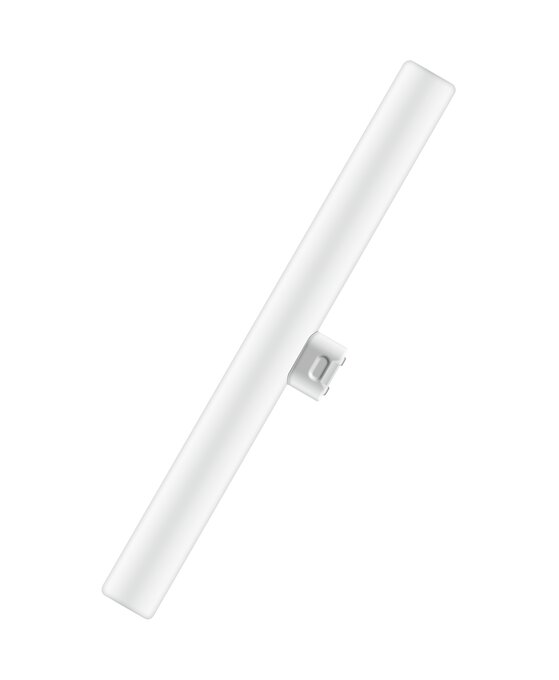

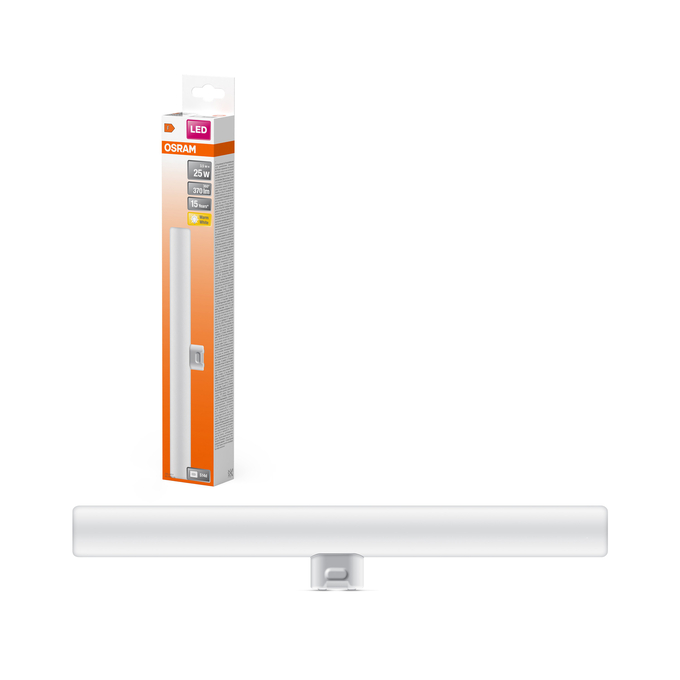

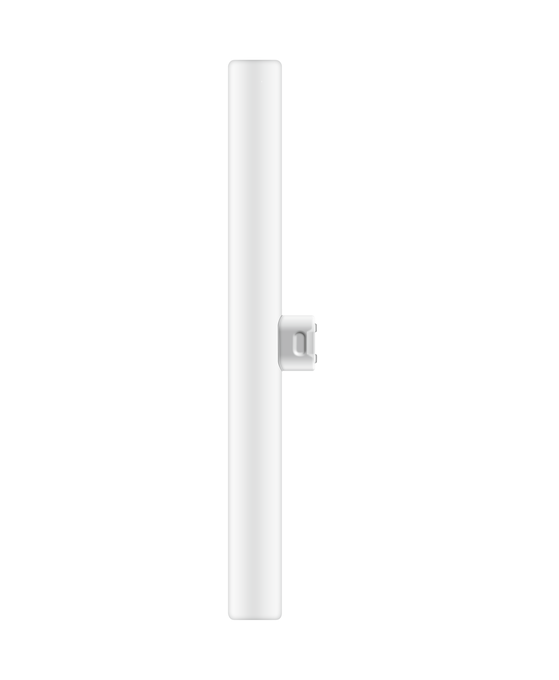

LEDinestra Base 30CM 25 145° 3.5W 827 Frosted S14d
4058075762398
Product benefits
- Long lifetime of up to 15,000 h
- Lower energy consumption than incandescent or halogen lamps
- Good color rendering
Areas of application
- Ideal for mirror lighting
- Hotels, restaurants
- Domestic applications
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to tubular incandescent lamps
- Uniform illumination
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For Guarantee see
- For dimming conformity see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
S14d
Beam angle
145 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,4644
Chromaticity coordinate y
0,4212
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
25 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
3.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
28.00 mm
Dimmable
No
Displacement factor
0.9
Energy consumption
4.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1256750
Flickering metric (Pst LM)
1
GTIN
4058075762398
Height
28.00 mm
High luminance light source
No
Inrush current
1.02 A
LED light source replaces a fluorescent light source
No
Length
300.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
S14d
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
105 lm/W
Luminous flux
370 lm
Mains frequency
50/60 Hz
Mains or non-mains
NMLS
Max. lamp number on MCB B10 A
307
Max. lamp number on MCB B16 A
492
Maximum diameter
28 mm
Maximum temperature at tc test point
50 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC42806,AC42806
Nominal current
29 mA
Nominal useful luminous flux 90°
370 lm
Nominal voltage
220…240 V
Nominal wattage
3.5 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDIBASE30CM 3
Overall length
300.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
45.3 g
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
28.00 mm
