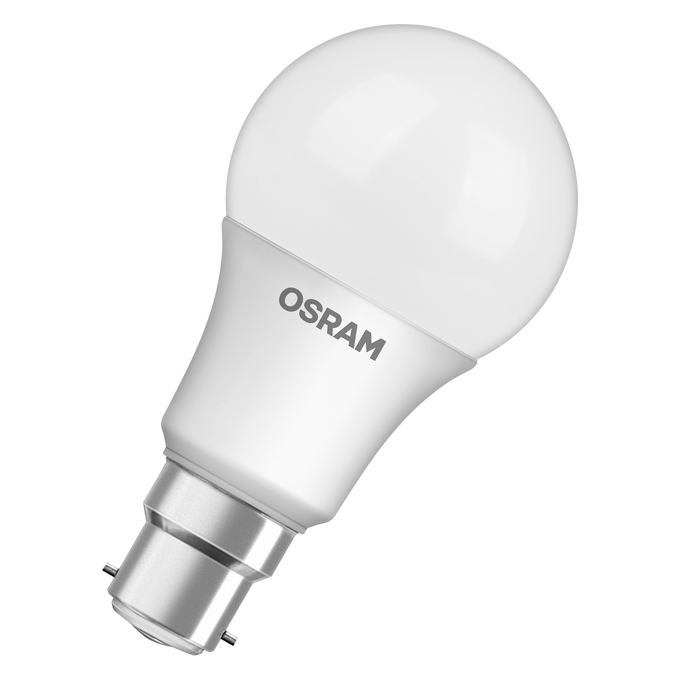

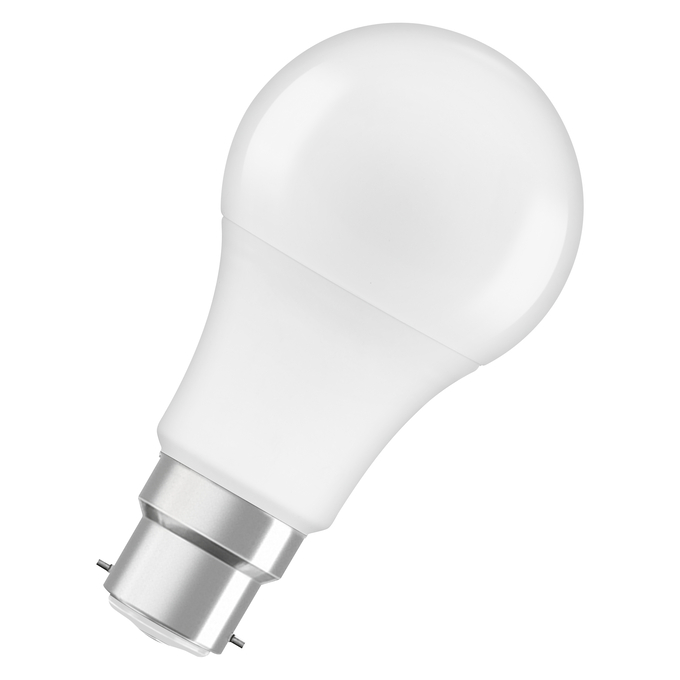

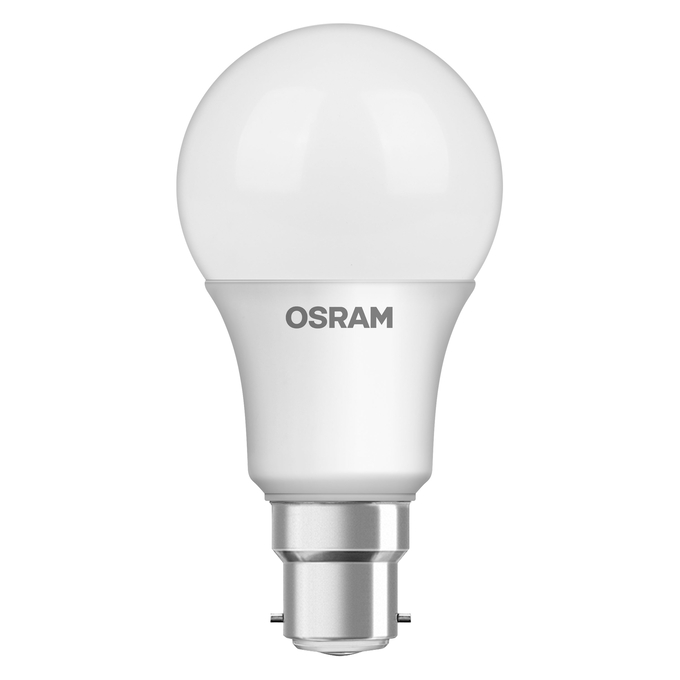

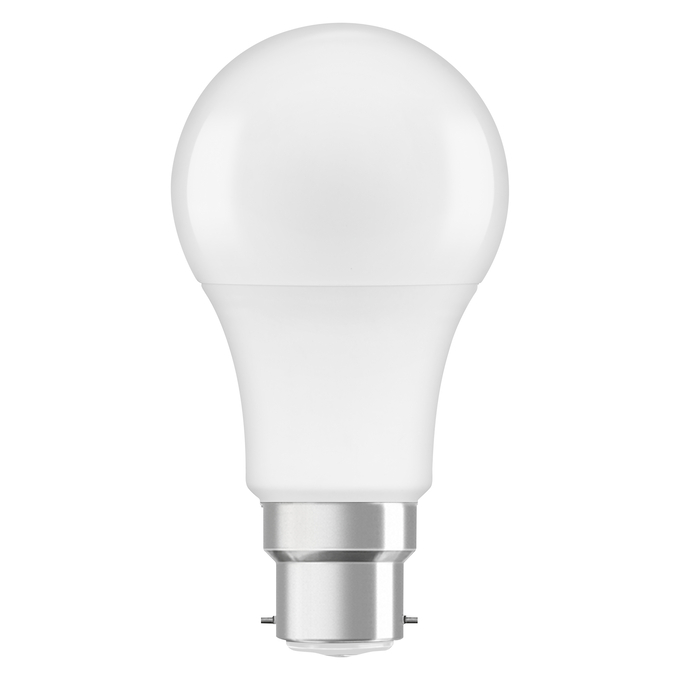

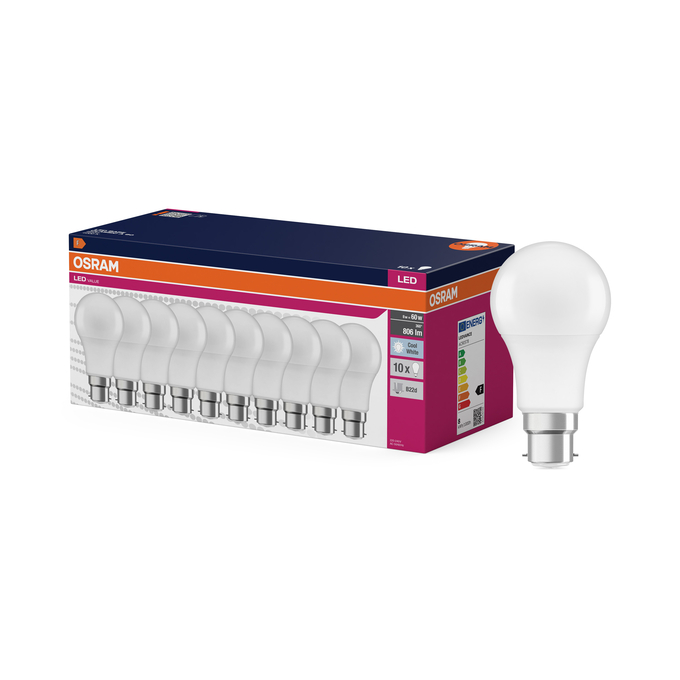

LED Value Classic A 75 8W 840 Frosted B22d
4099854812545
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Can be easily fitted instead of ordinary light bulbs
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Not dimmable
- Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
B22d
Beam angle
180 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.382
Chromaticity coordinate y
0.380
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
60 W
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
8.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
59.00 mm
Dimmable
No
Displacement factor
0.947
Energy consumption
8.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
2479635
Flickering metric (Pst LM)
1.0
GTIN
4099854812545
Height
59.00 mm
High luminance light source
No
Inrush current
1.76 A
LED light source replaces a fluorescent light source
No
Length
104.00 mm
Lifespan L70/B50 at 25 °C
10000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
B22d
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.93
Lumen maintenance at end of service lifetime
0.93
Luminous efficacy
100 lm/W
Luminous flux
806 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
95
Max. lamp number on MCB B16 A
119
Maximum diameter
59 mm
Maximum temperature at tc test point
105 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC90578
Nominal current
62 mA
Nominal voltage
220…240 V
Nominal wattage
8 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
VALUECLA60 8W/8
Overall length
104.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
‹ 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
20.5 g
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0.00 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
113 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
59.00 mm
