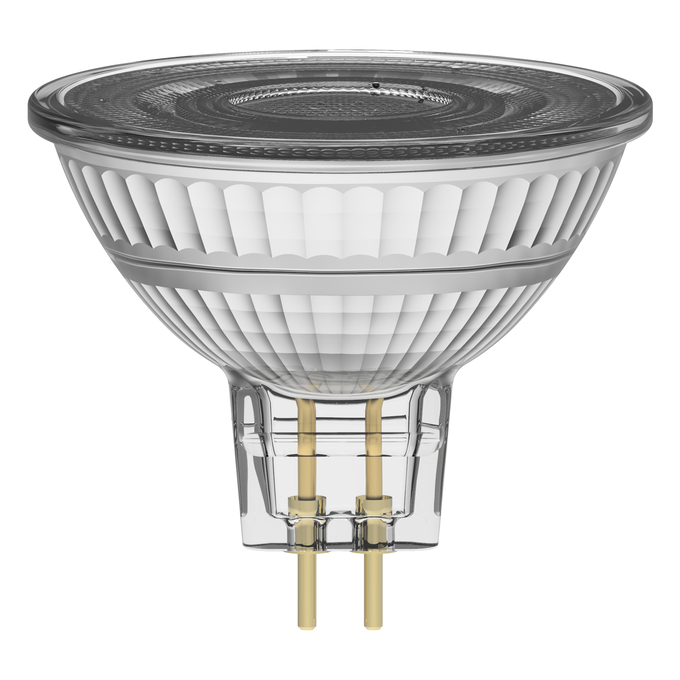

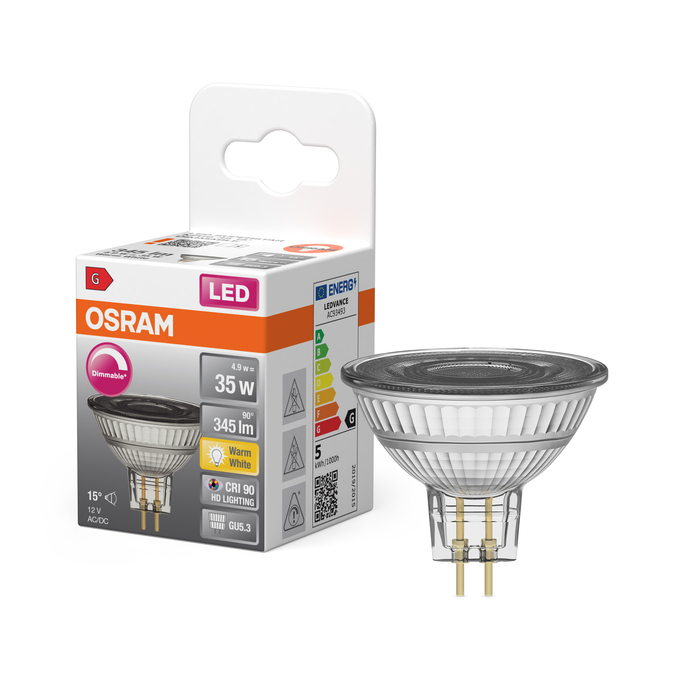

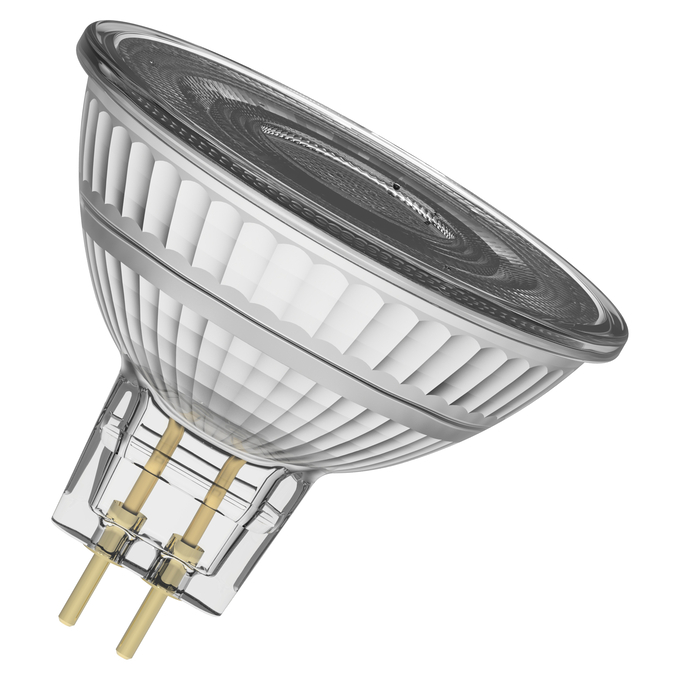

LED SUPERSTAR MR16 35 15° 4.9W 927 GU5.3
4099854770425
Product benefits
- Very long lifetime of up to 25,000 h
- Lower energy consumption than incandescent or halogen lamps
- High color consistency thanks to narrow binning
- Easy replacement of halogen lamps due to compact full glass design and single optic
- Ideal for economical spotlighting
Areas of application
- Shops
- Hospitality
- Museums, art galleries
- Residential interiors
- As a downlight for marking walkways, doors, stairs, etc.
- Spotlighting for accents
- Display cabinets and shop windows
- Spotlighting heat-sensitive objects such as food, plants, etc.
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional low voltage lamps
- Dimmable (with many common dimmers, see also )
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For further products and actual information concerning LED lamps see
- For Guarantee see
- Further information see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
GU5.3
Beam angle
15 °
Beam angle correspondence
NARROW_CONE_90
Chromaticity coordinate x
0.4609
Chromaticity coordinate y
0.4197
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
35 W
Color rendering index Ra
90
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
4.90 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
Spot
Diameter
50.00 mm
Dimmable
Yes 1)
Displacement factor
0.5
Energy consumption
5.00 kWh/1000h
Energy efficiency class
G 1)
Envelope
No
EPREL ID
2511459
Flickering metric (Pst LM)
1.0
GTIN
4099854770425
Height
50.00 mm
High luminance light source
No
Inrush current
1.97 A
LED light source replaces a fluorescent light source
No
Length
44.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
927
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
GU5.3
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
70 lm/W
Luminous flux
345 lm
Luminous intensity
1250 cd
Mains or non-mains
NMLS
Max. lamp number on MCB B10 A
29
Max. lamp number on MCB B16 A
56
Maximum diameter
50 mm
Maximum temperature at tc test point
105 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC93493
Nominal current
450 mA
Nominal useful luminous flux 90°
345 lm
Nominal voltage
12 V
Nominal wattage
4.9 W
Non-directional or directional
DLS
Number of switching cycles
100000
Operating mode
12V AC/DC
Order reference
LSMR16D3515 4,9
Overall length
44.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.40
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
35.5 g
R9 Colour rendering index
1
Rated peak intensity
1250 cd
Standard deviation of color matching
≤5 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Temperature range at storage
-20…+80 °C
Total harmonic distortion
150 %
Type of current
AC/DC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
50.00 mm
