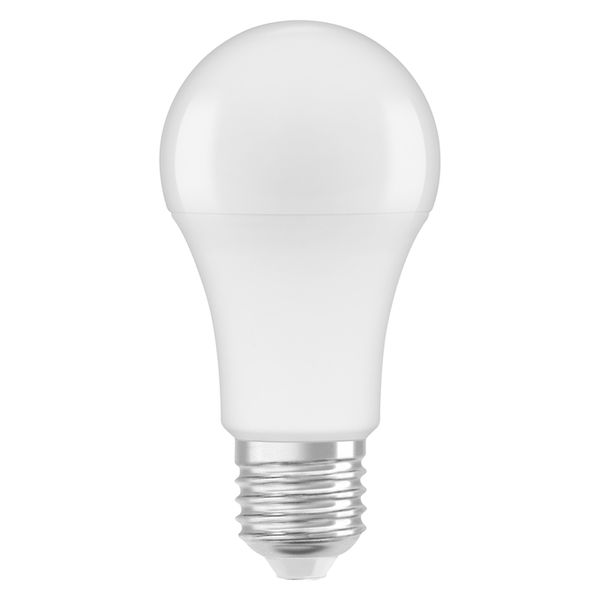

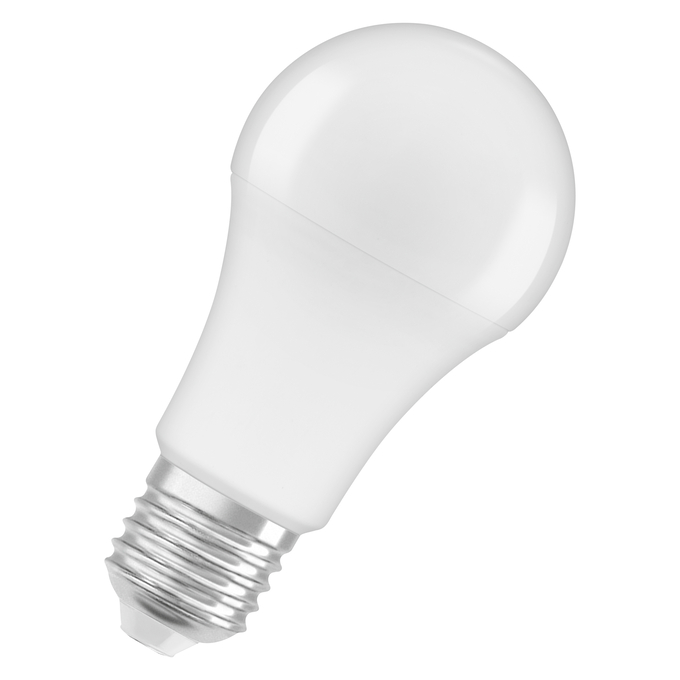

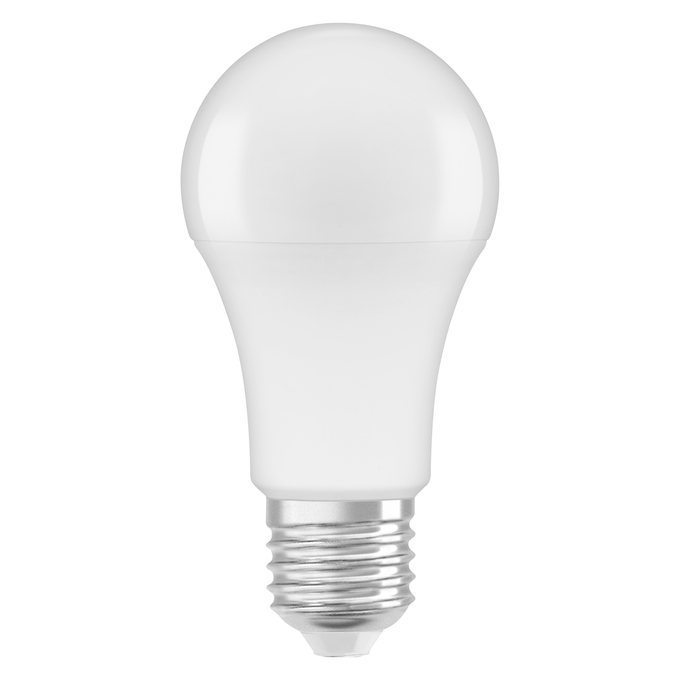

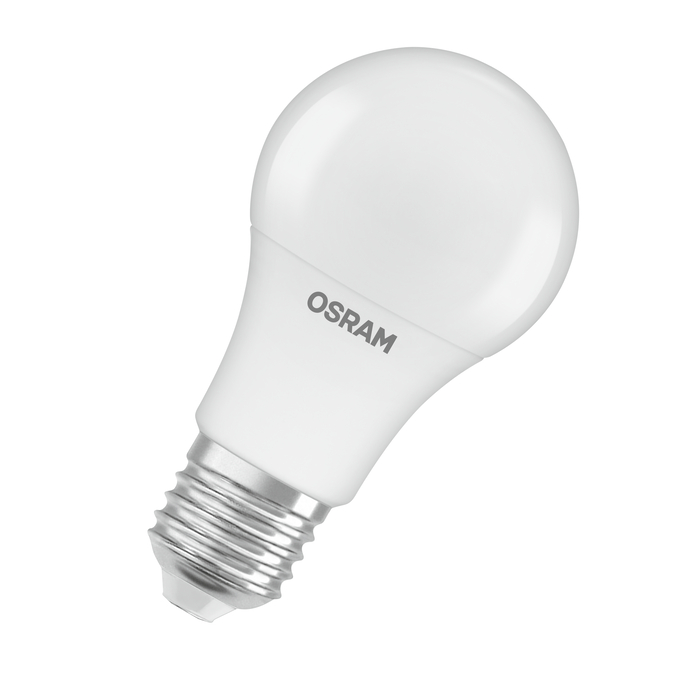

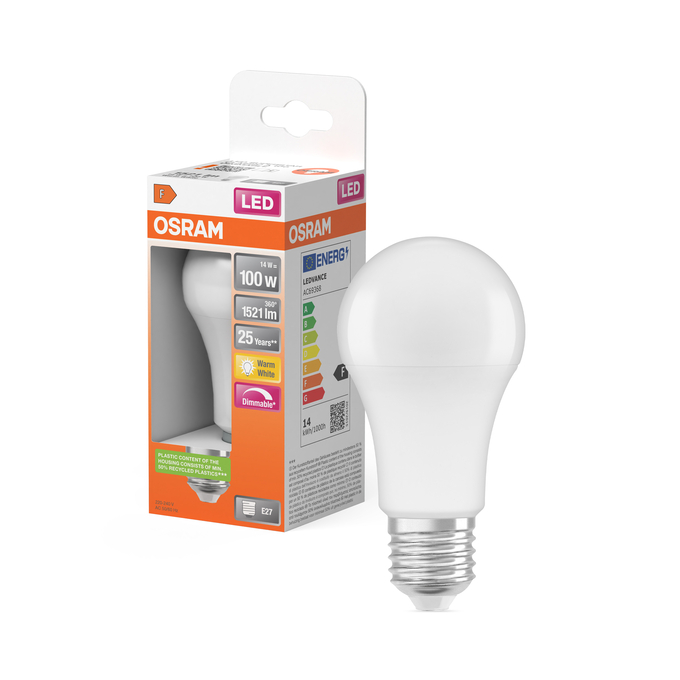

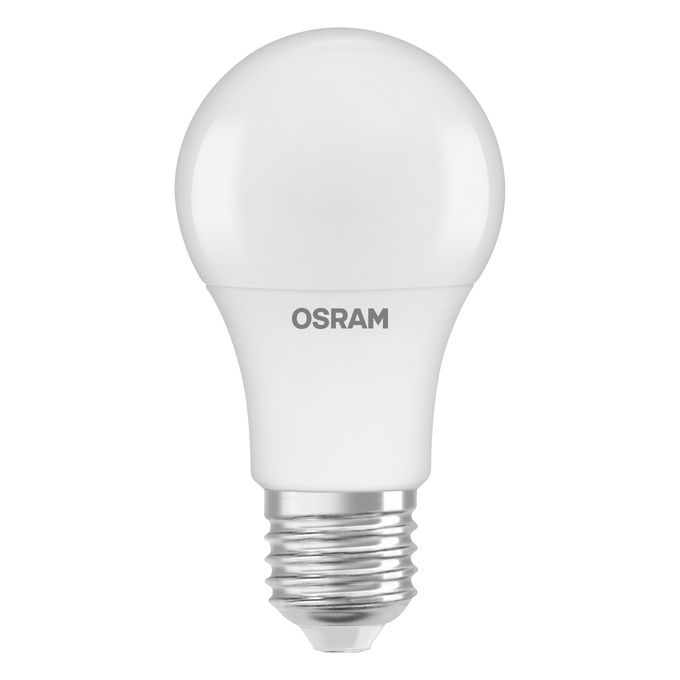

LED Superstar Classic A 100 DIM 14W 827 Frosted E27
4058075433823
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- High color consistency thanks to narrow binning
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Good quality of light; color rendering index CRI 80; constant chromaticity
- High color consistency: ≤ 6 SDCM
- Dimmable (with many common dimmers, see also )
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For further products and actual information concerning LED lamps see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
200 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.4578
Chromaticity coordinate y
0.4101
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
100 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
14.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
60.00 mm
Dimmable
Yes 1)
Displacement factor
0.95
Energy consumption
14.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1403219,523283,1338695,2190101
Flickering metric (Pst LM)
1.0
GTIN
4058075433823
Height
60.00 mm
High luminance light source
No
Inrush current
1.04 A
LED light source replaces a fluorescent light source
No
Length
118.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
108 lm/W
Luminous flux
1521 lm
Mains frequency
50…60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
85
Max. lamp number on MCB B16 A
122
Maximum diameter
60 mm
Maximum temperature at tc test point
82.8 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC31125,AC45053,AC24703,AC69368,AC69368
Nominal current
70 mA
Nominal voltage
220…240 V
Nominal wattage
14 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50…60 Hz
Operating mode
AC Mains
Order reference
LEDSCLA100D 14W
Overall length
118.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.94
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
40.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0.00 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
19.9 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
0.50 s
Width
60.00 mm
