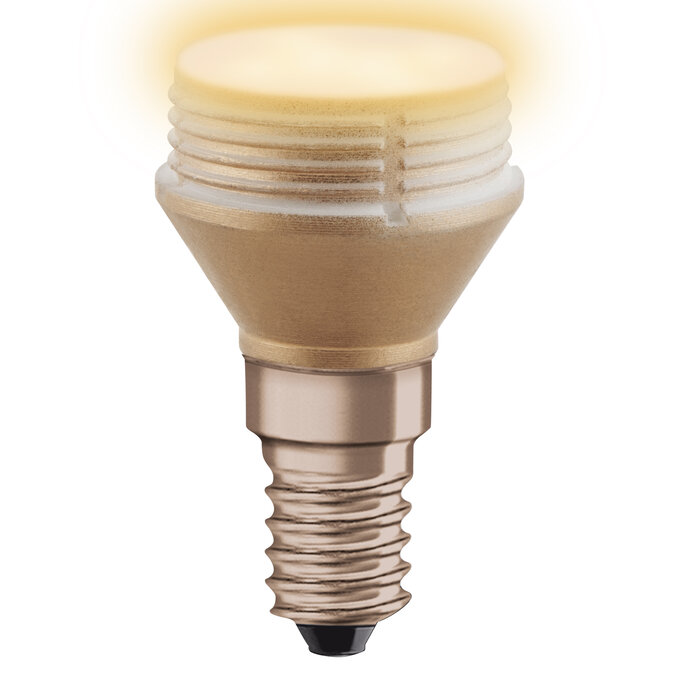

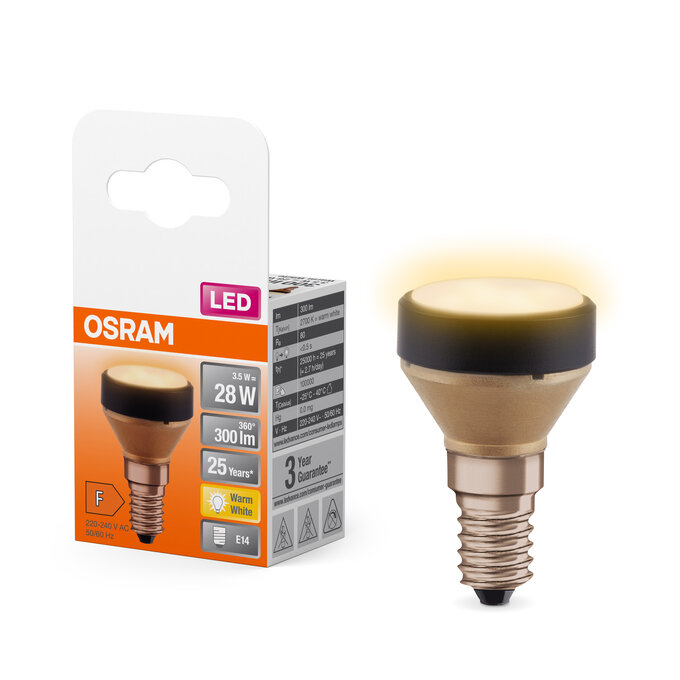

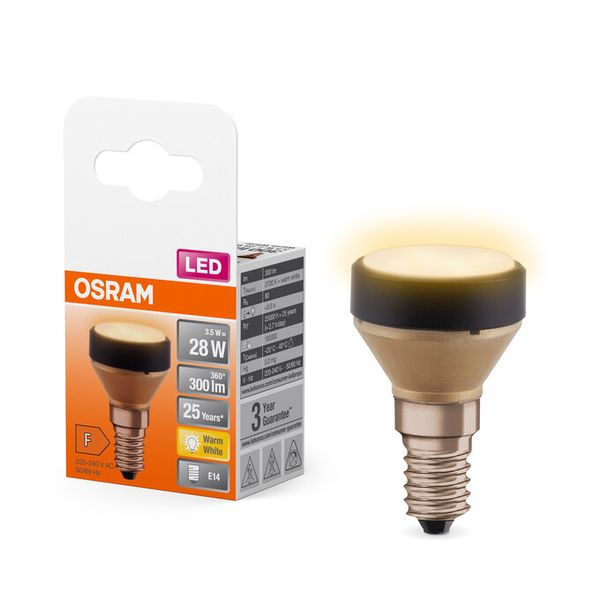

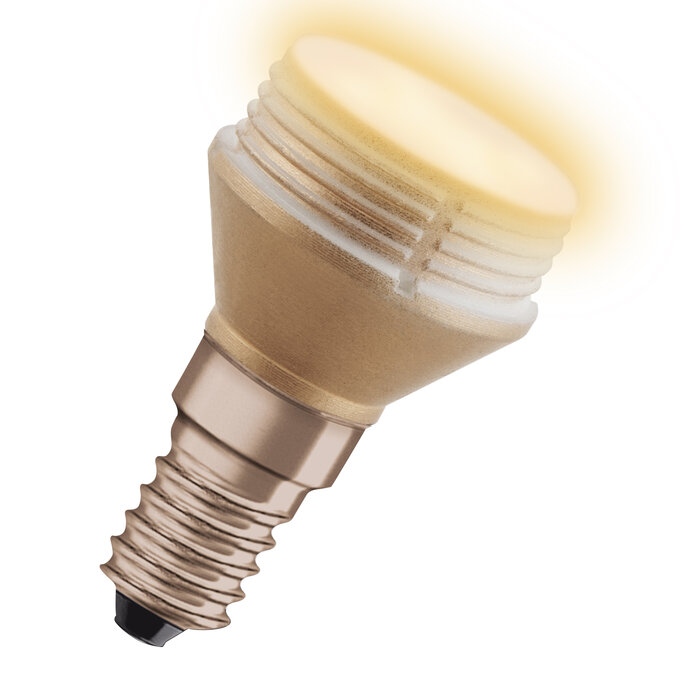

LED STAR FLAT 28 Non-DIM 3.5W 827 Frosted E14
4099854356773
Product benefits
- Ultra-compact design lamp without bulb-shaped diffuser
- The lamp´s shape highlights the beauty of the luminaire used
- The special design offers comfortable light distribution
- Lower energy consumption than incandescent or halogen lamps
Areas of application

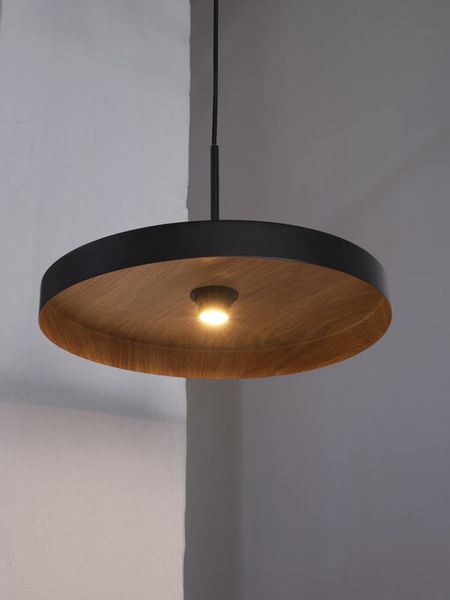

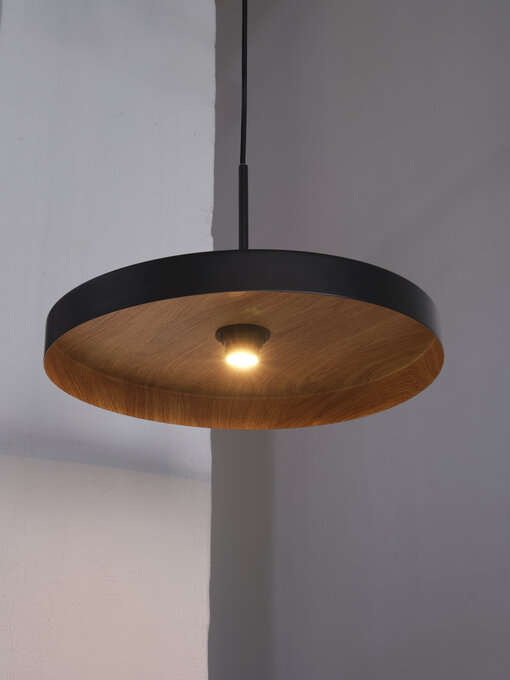

- Perfect for decorative installations
- General illumination
- Outdoor use in outdoor luminaires only (minimum IP65)
Product features

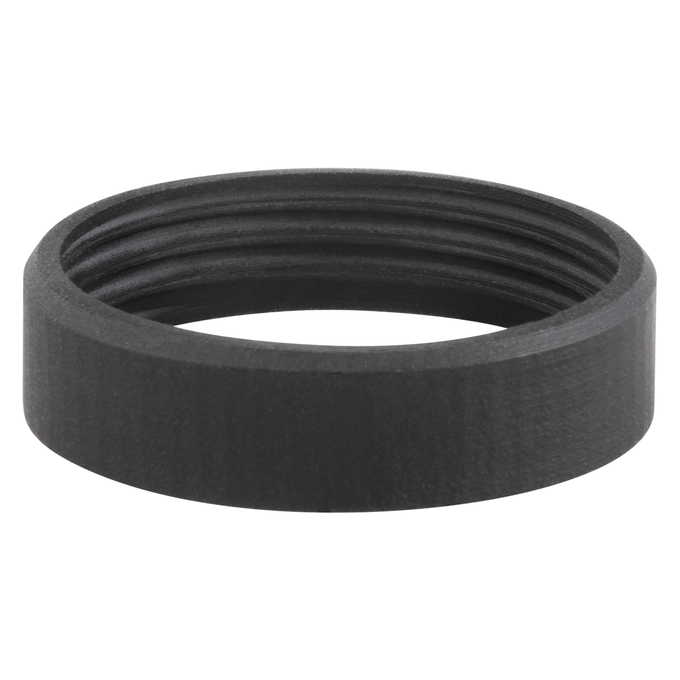

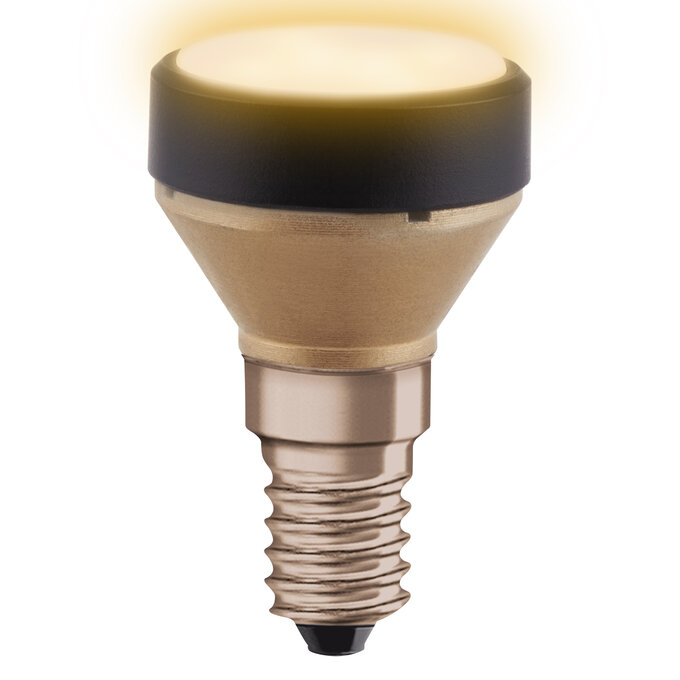

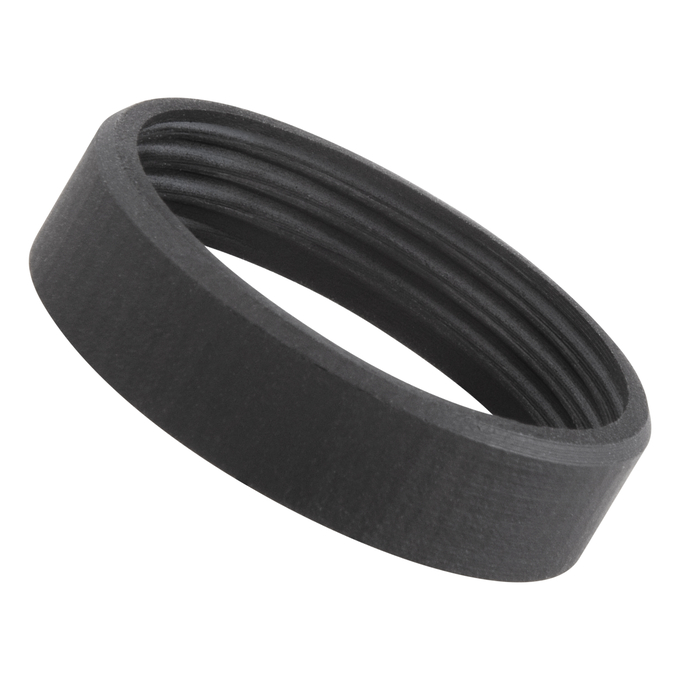

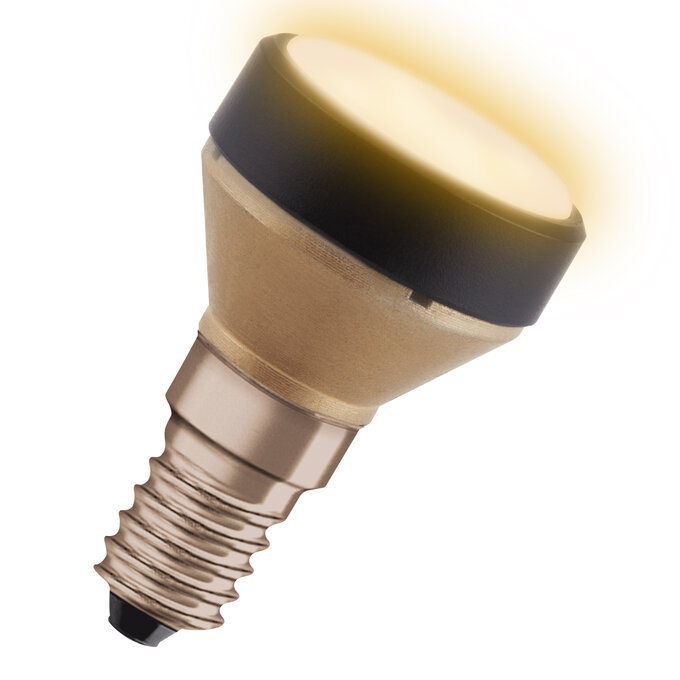

- Two rings (black and white) are included for customization, allowing for different luminaire colors
- Lifetime up to 25,000 h
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-25…+40 °C
Anti-glare shield
No
Base (standard designation)
E14
Beam angle
100 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.458
Chromaticity coordinate y
0.410
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
28 W
Color rendering index Ra
≥80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
3.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
35.00 mm
Dimmable
No
Displacement factor
0.964
Energy consumption
4.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
2042333
Flickering metric (Pst LM)
1
GTIN
4099854356773
Height
35.00 mm
High luminance light source
No
Inrush current
2.36 A
LED light source replaces a fluorescent light source
No
Length
54.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E14
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
85 lm/W
Luminous flux
300 lm
Luminous intensity
Not relevant
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
76
Max. lamp number on MCB B16 A
96
Maximum diameter
35 mm
Maximum temperature at tc test point
90 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC65818
Nominal current
32 mA
Nominal voltage
220…240 V
Nominal wattage
3.5 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDCLFLAT28 3,5
Overall length
54.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.47
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
21.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.9
Temperature range at storage
-25…+80 °C
Total harmonic distortion
177.60 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
35.00 mm
