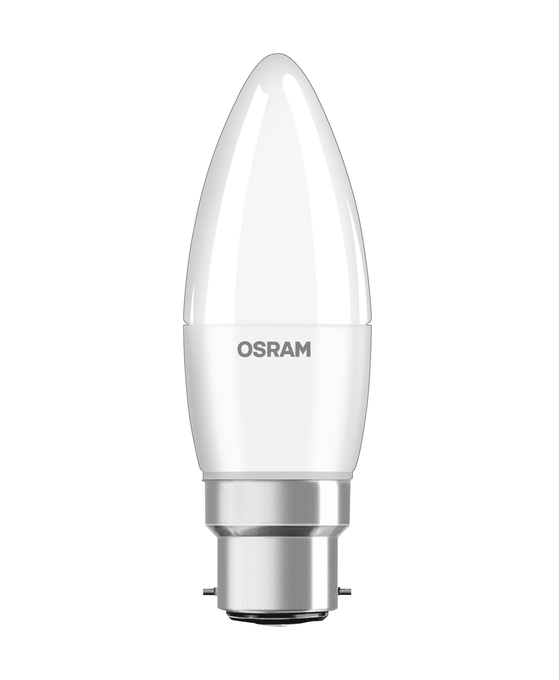

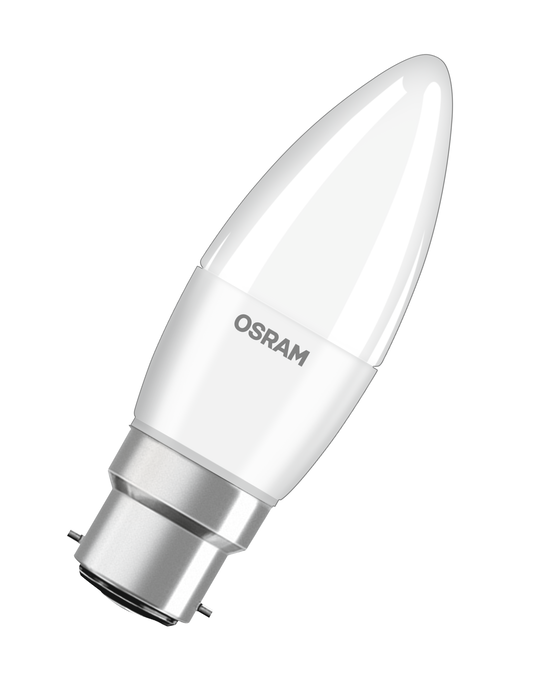

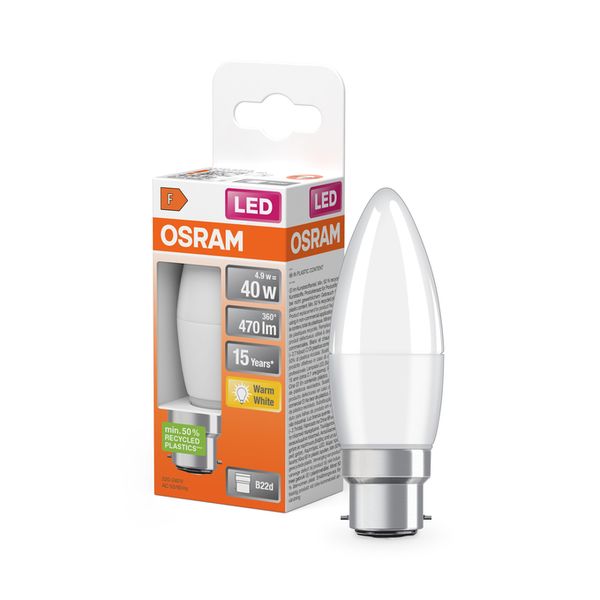

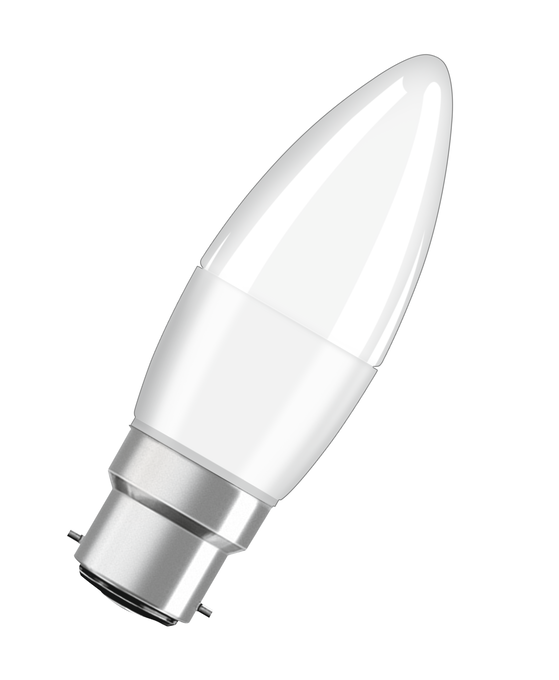

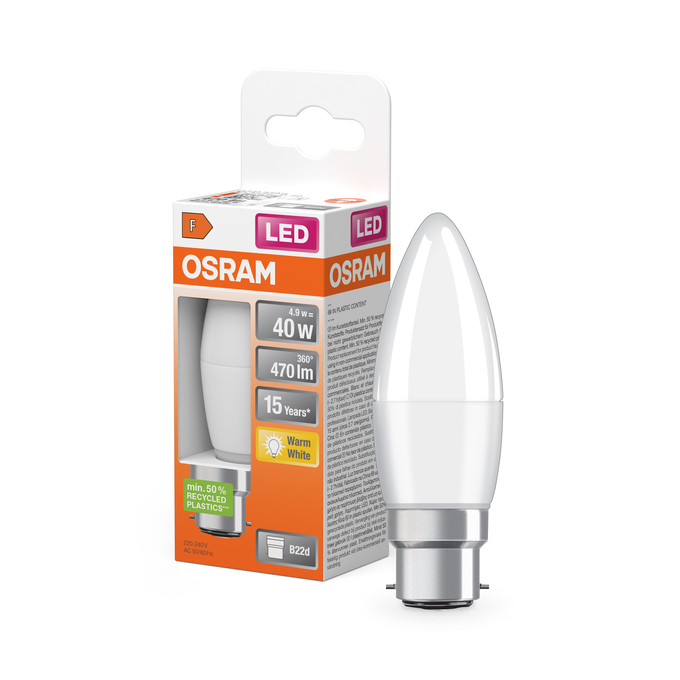

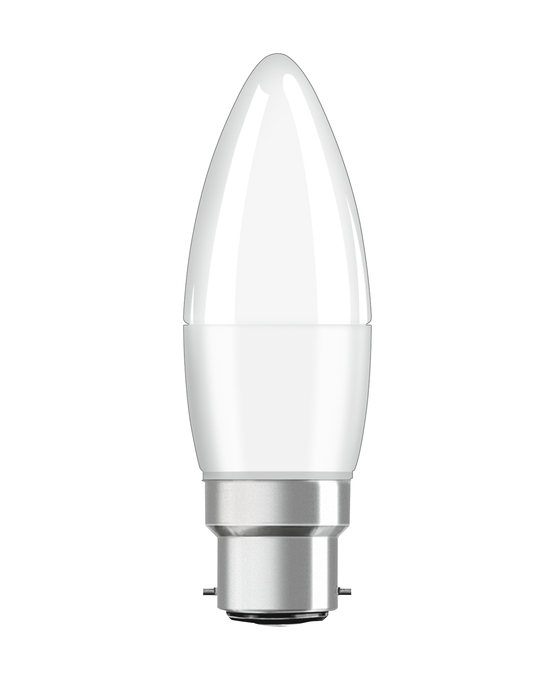

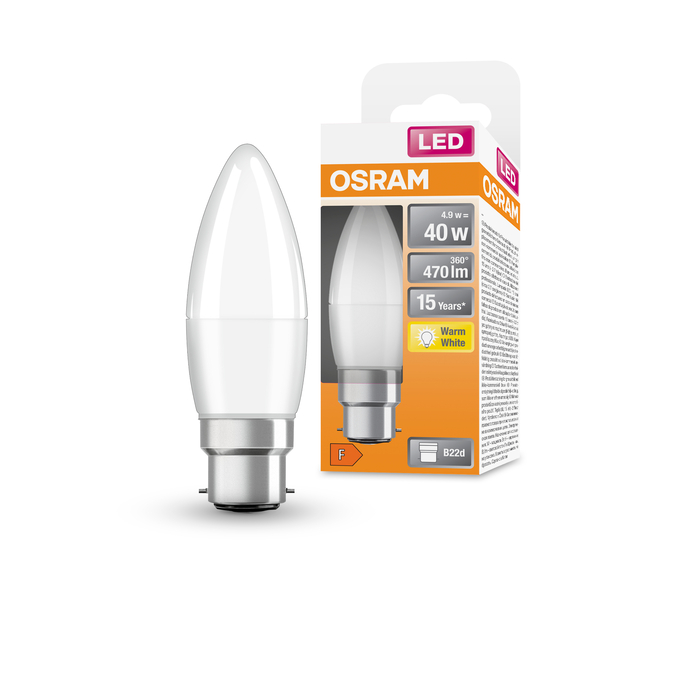

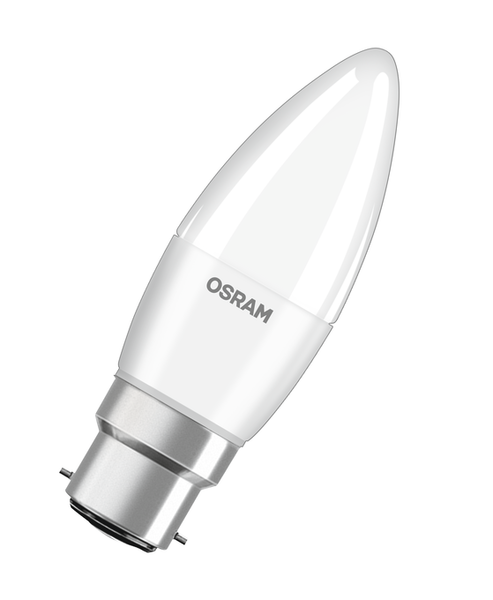

LED Star Classic B 40 4.9W 827 Frosted B22d
4058075504240
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Domestic applications
- General illumination
- Chandeliers
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For further products and actual information concerning LED lamps see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
B22d
Beam angle
200 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.4578
Chromaticity coordinate y
0.4101
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
40 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
4.90 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
37.00 mm
Dimmable
No
Displacement factor
0.95
Energy consumption
5.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1403057,523319,1351517,2192492,2505607
Flickering metric (Pst LM)
1.0
GTIN
4058075504240
Height
37.00 mm
High luminance light source
No
Inrush current
0.182 A
LED light source replaces a fluorescent light source
No
Length
100.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
B22d
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.93
Lumen maintenance at end of service lifetime
0.93
Luminous efficacy
95 lm/W
Luminous flux
470 lm
Mains frequency
50…60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
190
Max. lamp number on MCB B16 A
304
Maximum diameter
37 mm
Maximum temperature at tc test point
105 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC31161,AC45015,AC24795,AC69320,AC91934,AC69320,AC91934
Nominal current
42 mA
Nominal voltage
220…240 V
Nominal wattage
4.9 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50…60 Hz
Operating mode
AC Mains
Order reference
LEDSCLB40 4,9W/
Overall length
100.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.51
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
17.00 g
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0.00 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
158.9 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
37.00 mm
