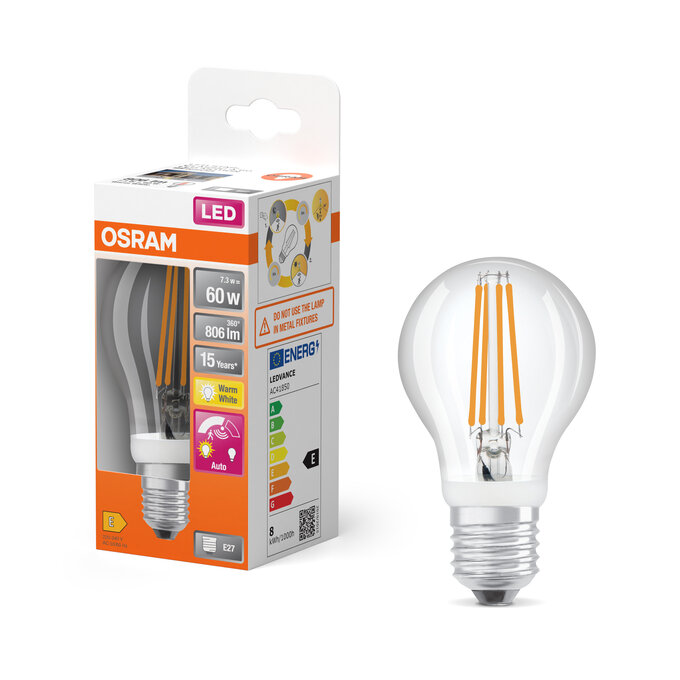

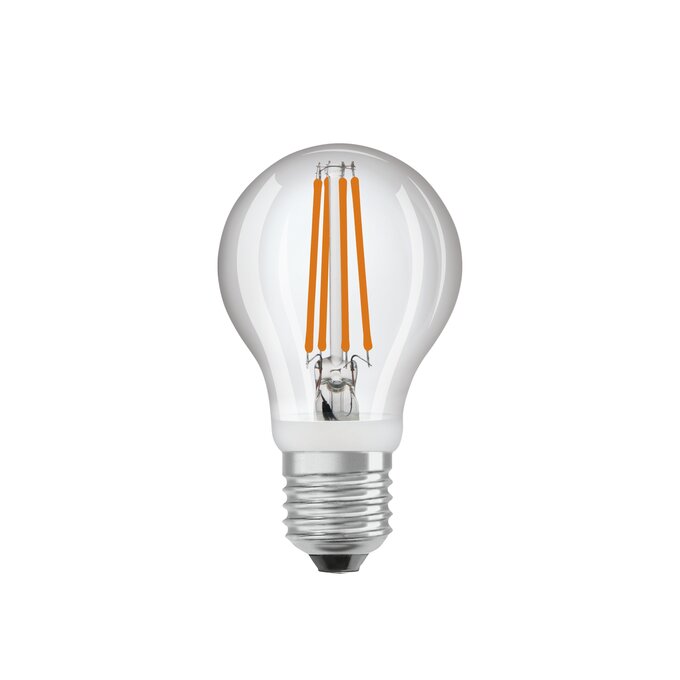

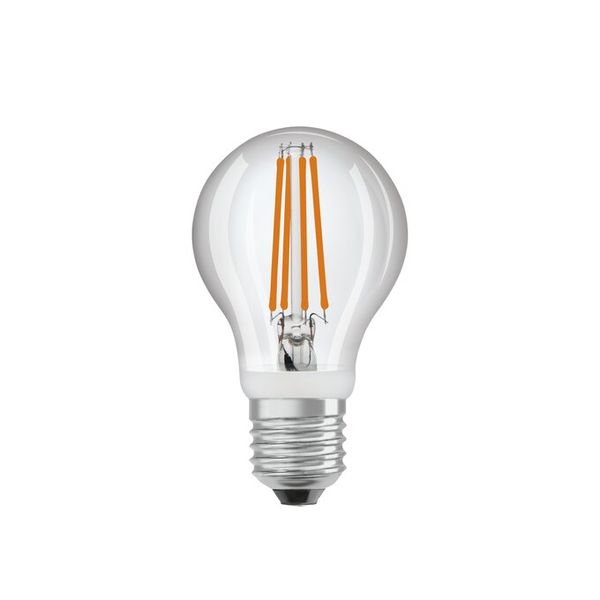

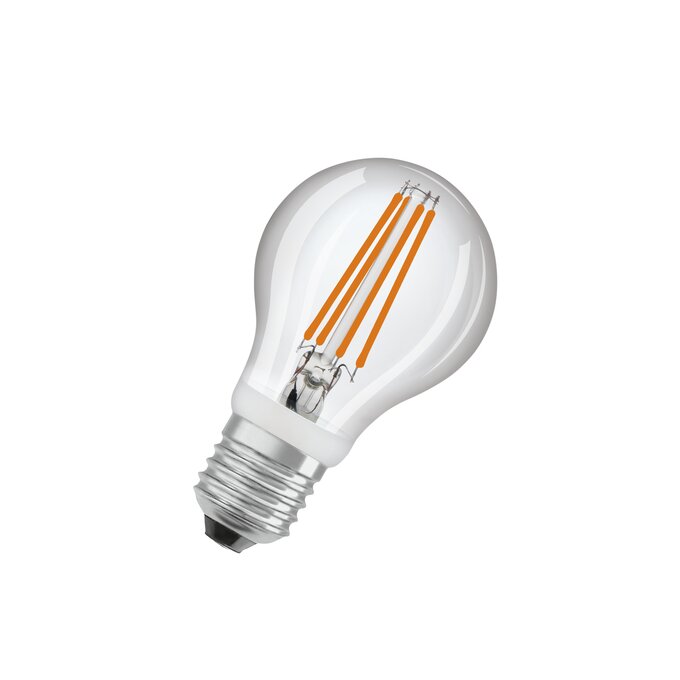

LED Star Classic A 60 Filament Motion Sensor 7.3W 827 Clear E27
4058075762039
Product benefits
- Short payback period thanks to low energy consumption and maintenance costs
- Integrated motion sensor active through day and night
- Automatic light switch off 30 seconds after the last motion detection
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Staircases, corridor, basement, entrance
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- High color consistency: ≤ 6 SDCM
- Mercury-free lamps
- Detection range up to 3 meter and 90°
- Integrated microwave sensor can detect fine movement also through plastic and glass fixtures
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
320 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.463
Chromaticity coordinate y
0.420
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
60 W
Color rendering index Ra
≥80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
7.30 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
SINGLE_VALUE
Design / version
Clear
Diameter
60.00 mm
Dimmable
No
Displacement factor
0,7
Energy consumption
8.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1206272
Flickering metric (Pst LM)
1,0
GTIN
4058075762039
Height
60.00 mm
High luminance light source
No
Inrush current
3.76 A
LED light source replaces a fluorescent light source
No
Length
116.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)
Lumen main.fact.at end of nom.life time
0.93
Lumen maintenance at end of service lifetime
0.93
Luminous efficacy
110 lm/W
Luminous flux
806 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
66
Max. lamp number on MCB B16 A
106
Maximum diameter
60 mm
Maximum temperature at tc test point
51,2 °C
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC41850
Networked standby power for CLS
not applicable
Nominal current
48 mA
Nominal useful luminous flux 90°
806 lm
Nominal voltage
220…240 V
Nominal wattage
7.3 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDSCLA60MS 7,3
Overall length
116.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.70
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
38.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standby power
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0,4
Survival factor
0,9
Total harmonic distortion
50 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
60.00 mm
