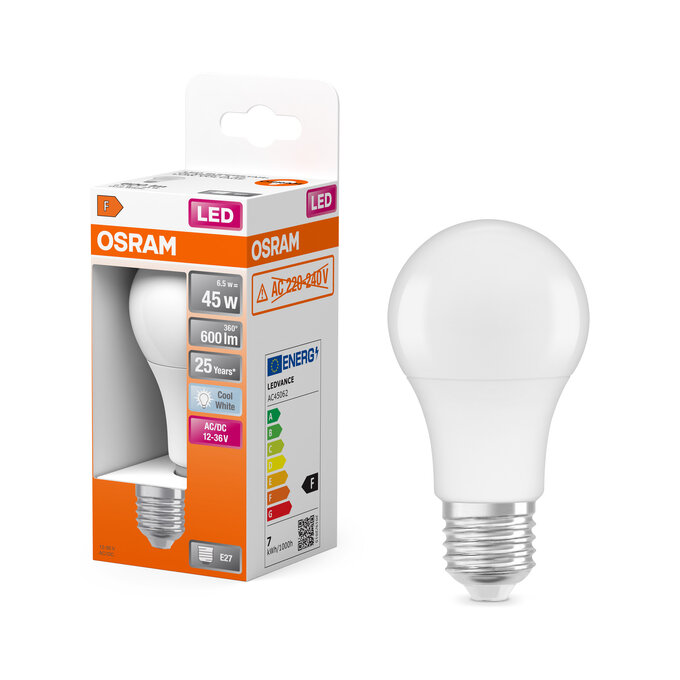

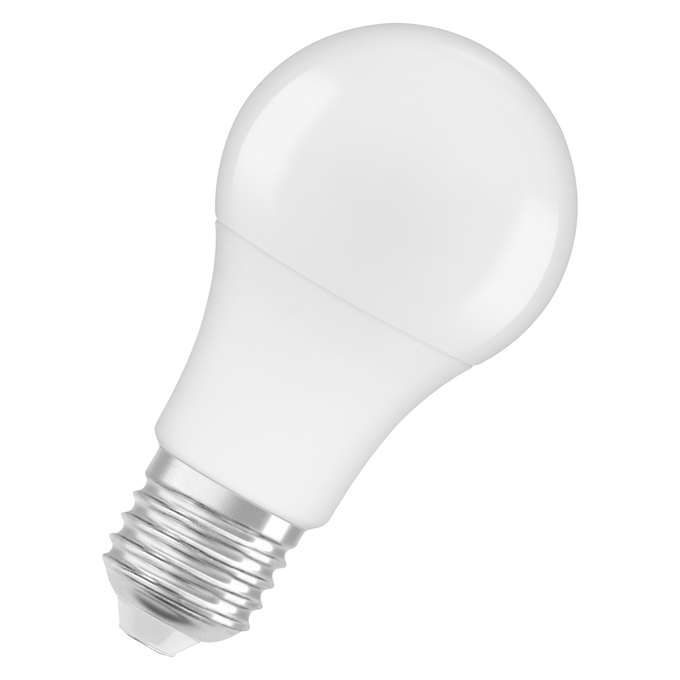

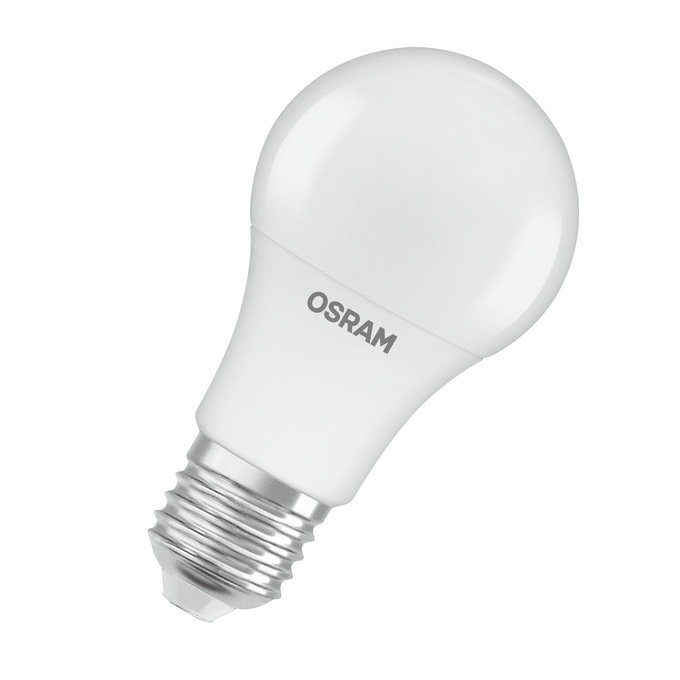

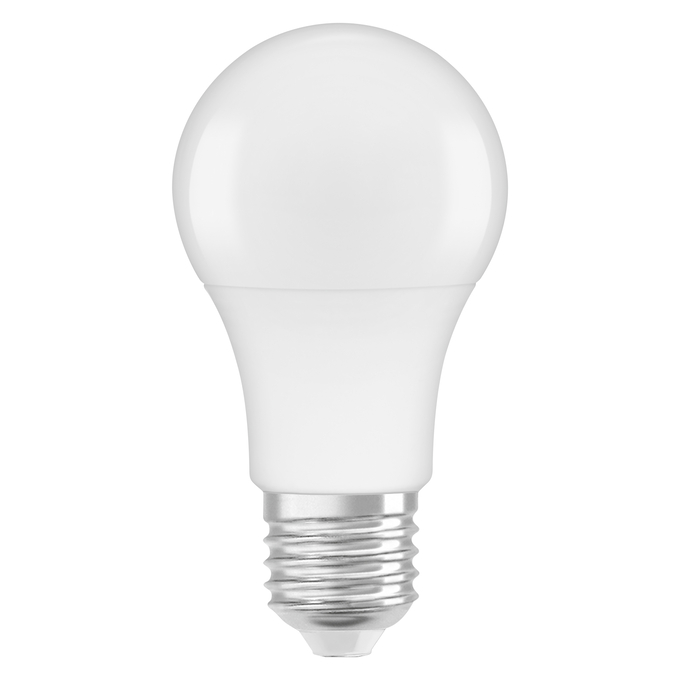

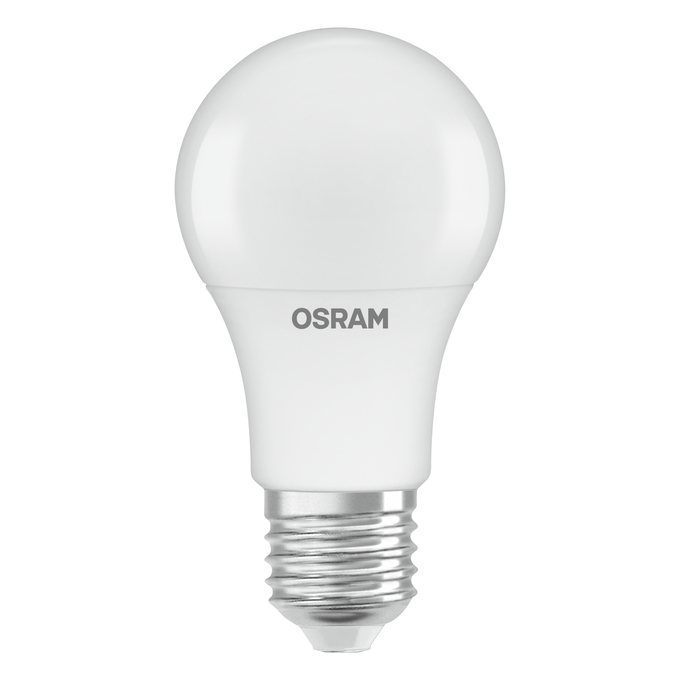

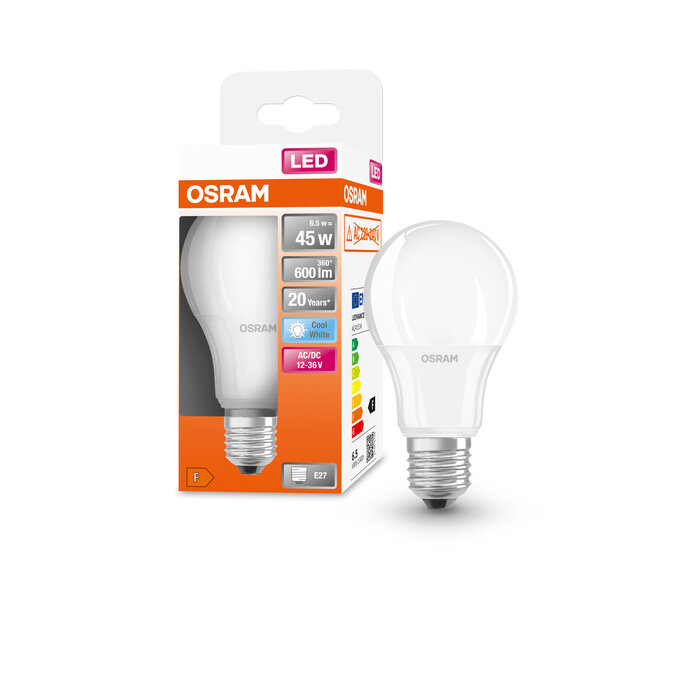

LED Star Classic A 45 6.5W 840 12-36V Frosted E27
4058075757608
Product benefits
- Fit for off-grid use
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Battery power system without main connection
- Camping, Camper, Garden house
- Outdoor applications only in suitable luminaires
Product features
- LED lamp for low voltage power system (AC/DC 12 V - 36 V)
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For Guarantee see
Ambient temperature range
-20…40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
200 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.382
Chromaticity coordinate y
0.380
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
45 W
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
6.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
60.00 mm
Dimmable
No
Displacement factor
0.5
Energy consumption
7.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1162270,1338700
Flickering metric (Pst LM)
1.0
GTIN
4058075757608
Height
60.00 mm
High luminance light source
No
Inrush current
3.44 A
LED light source replaces a fluorescent light source
No
Length
112.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
92 lm/W
Luminous flux
600 lm
Mains or non-mains
NMLS
Max. lamp number on MCB B10 A
9
Max. lamp number on MCB B16 A
15
Maximum diameter
60 mm
Maximum temperature at tc test point
82.9 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC41514,AC45062,AC45062
Networked standby power for CLS
0.00 W
Nominal current
800 mA
Nominal useful luminous flux 90°
600 lm
Nominal voltage
12…36 V
Nominal wattage
6.5 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating mode
12V-36V AC/DC
Order reference
LEDSCLA45 6,5W/
Overall length
112.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
35.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standards
CE
Standby power
0.00 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
130 %
Type of current
AC/DC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
60.00 mm
