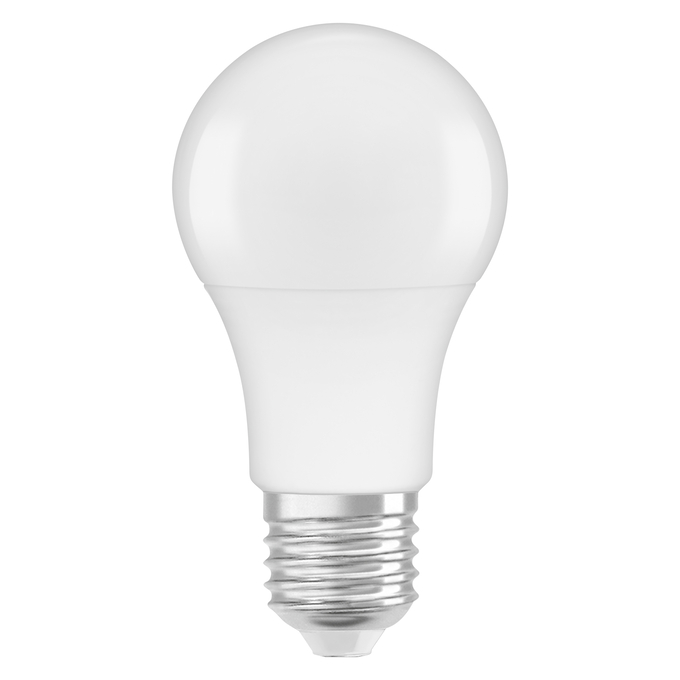

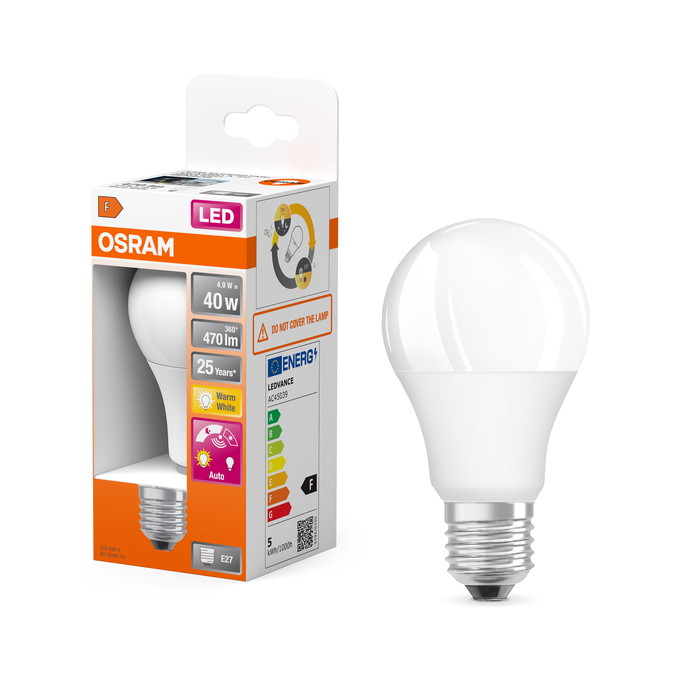

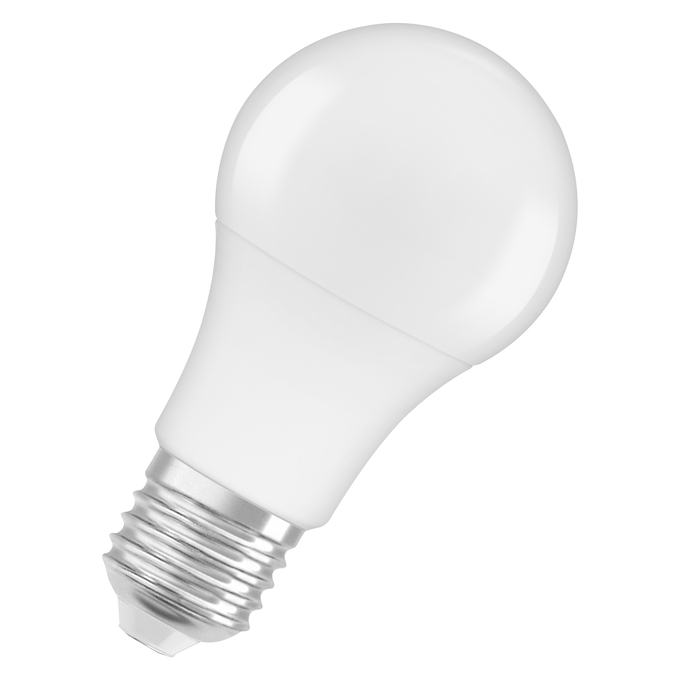

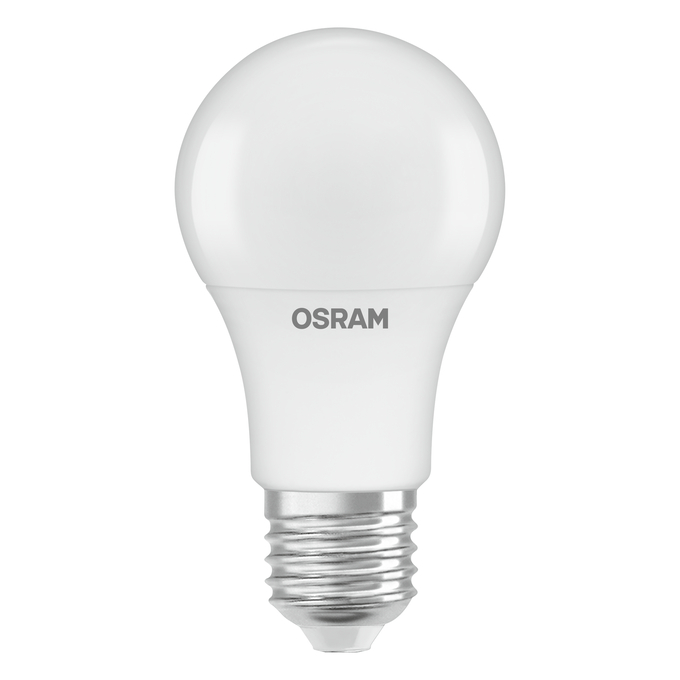

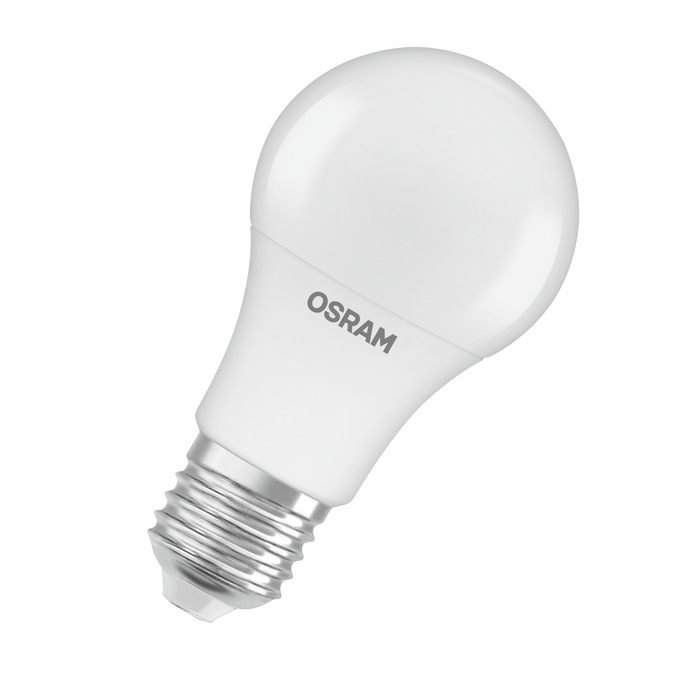

LED Star Classic A 40 Daylight Sensor 4.9W 827 Frosted E27
4058075428300
Product benefits
- Short payback period thanks to low energy consumption and maintenance costs
- Energy-saving lighting solutions thanks to automatic switch off at daylight (> 20 lux)
- Safety through automatic switch-on at darkness (< 20 lux)
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Outdoor use in suitable outdoor luminaires only
- Wherever constant lighting is necessary at night
Product features
- LED alternative to conventional lamps
- High color consistency: ≤ 6 SDCM
- Mercury-free lamps
- The integrated light sensor detects daylight level every 10 minutes and turns on/off automatically
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
200 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.458
Chromaticity coordinate y
0.410
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
40 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
4.90 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
60.00 mm
Dimmable
No
Displacement factor
0.5
Energy consumption
5.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
523274,1338682
Flickering metric (Pst LM)
1.0
GTIN
4058075428300
Height
60.00 mm
High luminance light source
No
ILCOS
DRAA/F-5,5/827-220-240-E27-60
Inrush current
7.36 A
LED light source replaces a fluorescent light source
No
Length
108.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
95 lm/W
Luminous flux
470 lm
Mains frequency
50…60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
35
Max. lamp number on MCB B16 A
45
Maximum diameter
60 mm
Maximum temperature at tc test point
73.1 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC31115,AC45039,AC45039
Networked standby power for CLS
0,50 W
Nominal current
42 mA
Nominal useful luminous flux 90°
470 lm
Nominal voltage
220…240 V
Nominal wattage
4.9 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50…60 Hz
Operating mode
AC Mains
Order reference
LEDSCLA40DS 4,9
Overall length
108.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.40
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
22.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤6 sdcm
Standards
CE
Standby power
0.50 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
151.2 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
0.50 s
Width
60.00 mm
