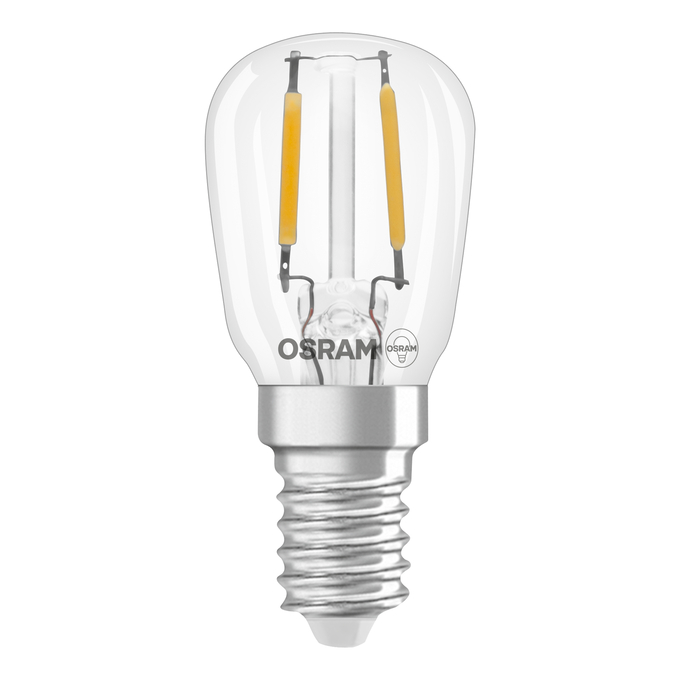

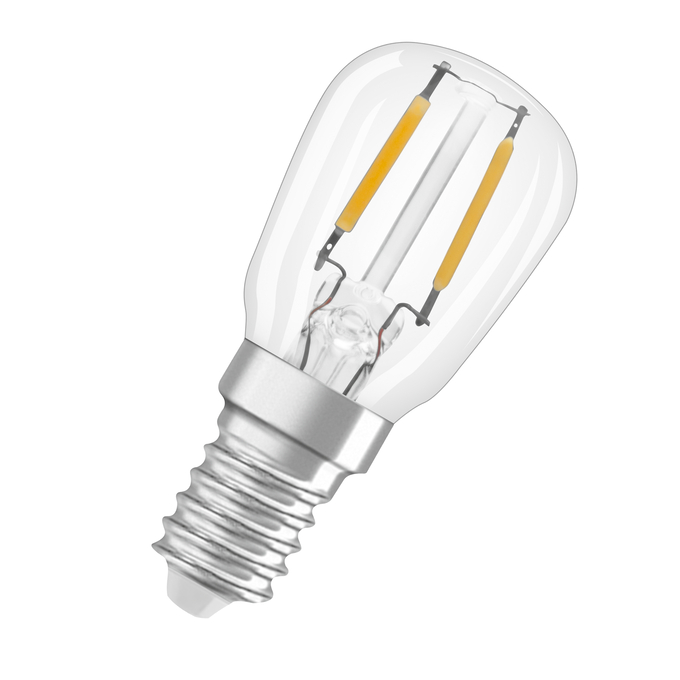

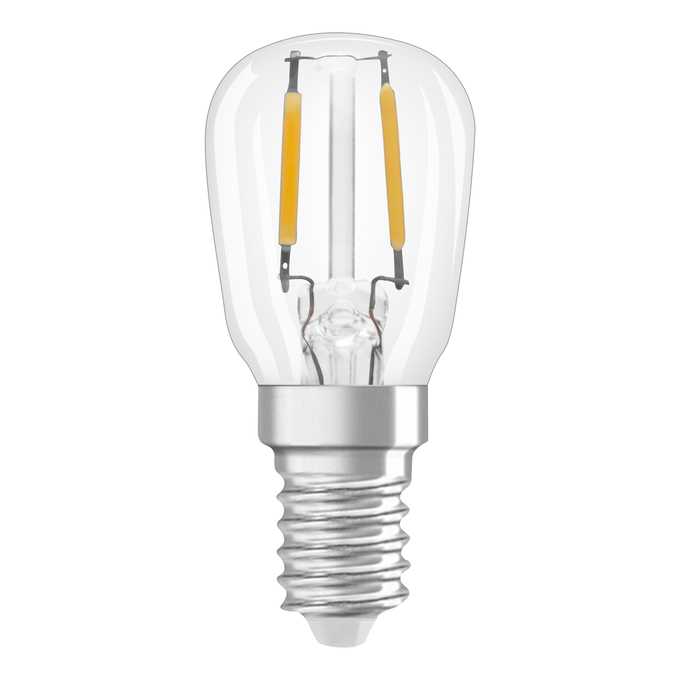

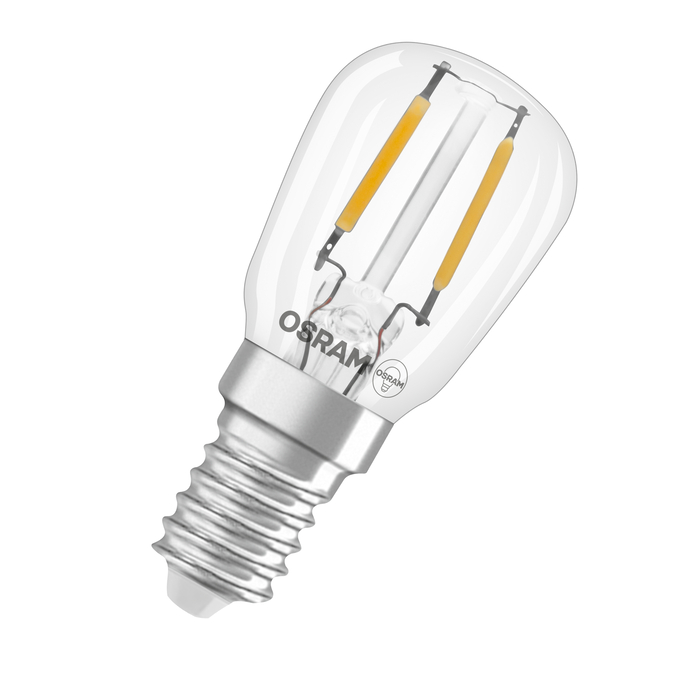

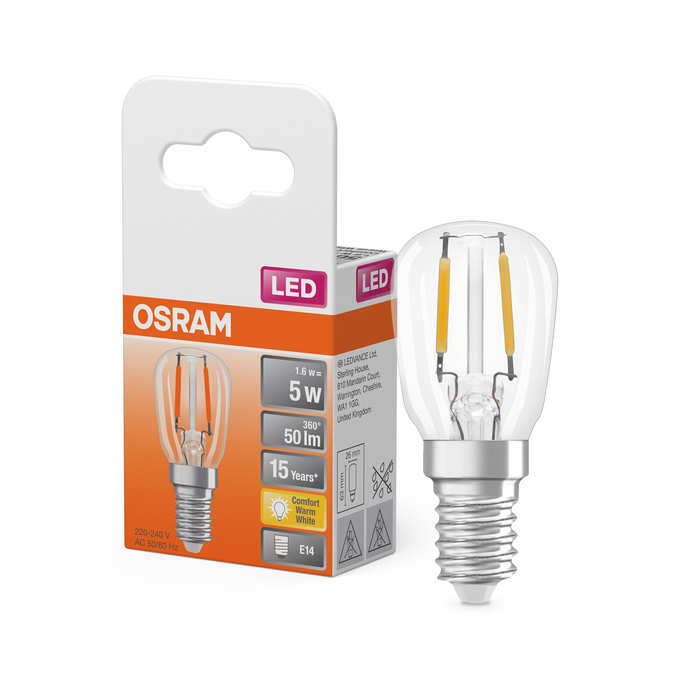

LED Special T26 5 300° Filament 1.6W 824 Clear E14
4058075432819
Product benefits
- Extremely small dimensions
- Good all-around light emission
- Ideal for decorative and free-burning applications
- Long lifetime of up to 15,000 h
- Three year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Domestic refrigerators
- Atmospheric accent lighting throughout the home
- Small designer luminaires
- Sewing machines
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional high voltage lamps
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E14
Beam angle
300 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.485
Chromaticity coordinate y
0.415
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
5 W
Color rendering index Ra
80
Color temperature
2400 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
1.60 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Design / version
Clear
Diameter
26.00 mm
Dimmable
No
Displacement factor
0.5
Envelope
No
EPREL ID
522858,1368316
Flickering metric (Pst LM)
1.0
GTIN
4058075432819
Height
26.00 mm
High luminance light source
No
Inrush current
1.2 A
LED light source replaces a fluorescent light source
No
Length
63.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
824
Light color (designation)
Warm Comfort Light
Light source cap-type (or other electric interface)
E14
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.93
Lumen maintenance at end of service lifetime
0.93
Luminous efficacy
31 lm/W
Luminous flux
50 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
27
Max. lamp number on MCB B16 A
44
Maximum diameter
26 mm
Maximum temperature at tc test point
55 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC32147,AC45879
Nominal current
10 mA
Nominal useful luminous flux 90°
50 lm
Nominal voltage
220…240 V
Nominal wattage
1.6 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDT265 1,6W/82
Overall length
63.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.40
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
8.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 125 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
26.00 mm
