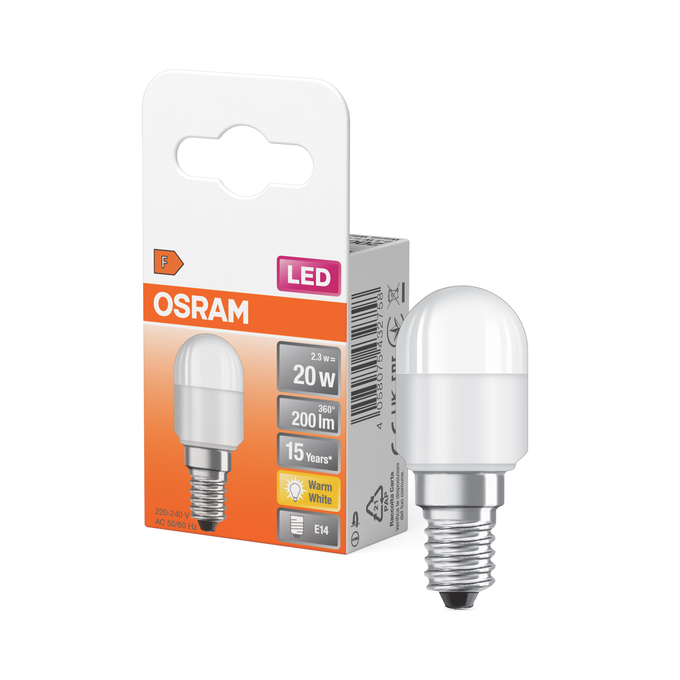

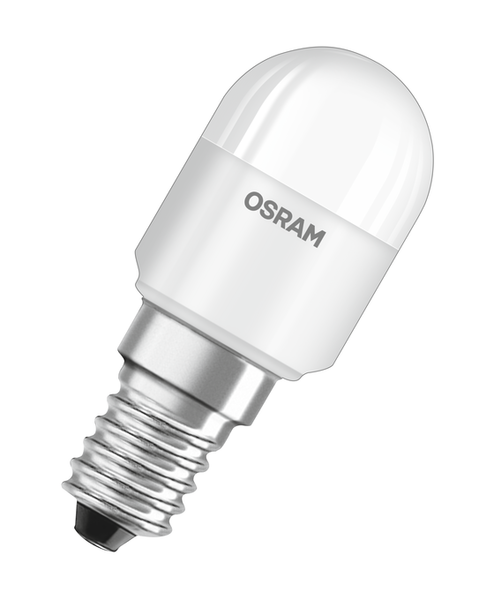

LED Special T26 20 200° 2.3W 827 Frosted E14
4058075432758
Product benefits
- Extremely small dimensions
- Good all-around light emission
- Ideal for decorative and free-burning applications
- Long lifetime of up to 15,000 h
- Three year guarantee
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Domestic refrigerators
- Atmospheric accent lighting throughout the home
- Small designer luminaires
- Sewing machines
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional high voltage lamps
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see
- For Guarantee see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E14
Beam angle
200 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.458
Chromaticity coordinate y
0.410
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
20 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
2.30 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
25,0 mm
Dimmable
No
Displacement factor
0.5
Energy consumption
3.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1403257,522880,1368322
Flickering metric (Pst LM)
≤1
GTIN
4058075432758
Height
25,0 mm
High luminance light source
No
Inrush current
4.6 A
LED light source replaces a fluorescent light source
No
Length
58.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E14
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
86 lm/W
Luminous flux
200 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
30
Max. lamp number on MCB B16 A
38
Maximum diameter
25 mm
Maximum temperature at tc test point
59 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC32153,AC45895,AC24758,AC45895
Nominal current
22 mA
Nominal useful luminous flux 90°
200 lm
Nominal voltage
220…240 V
Nominal wattage
2.3 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDT2620 2,3W/8
Overall length
58.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.40
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
12.00 g
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standby power
0.00
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 175 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
25,0 mm
