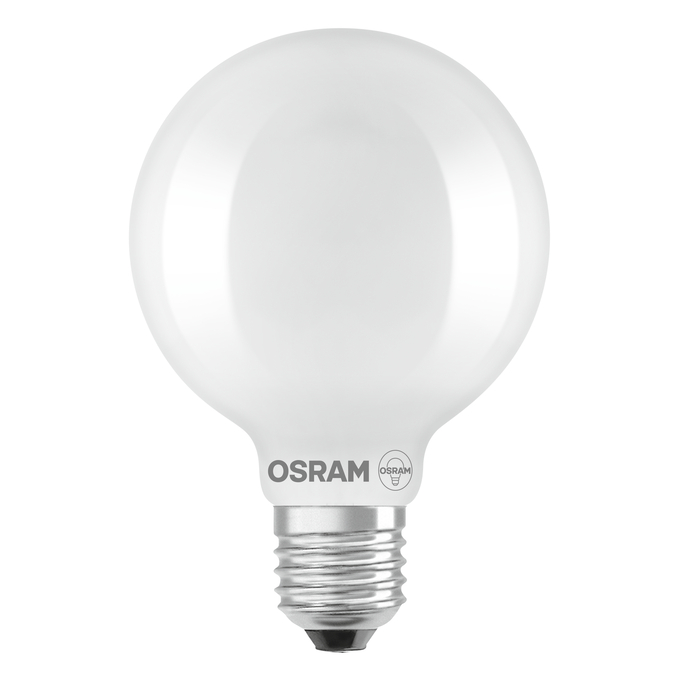

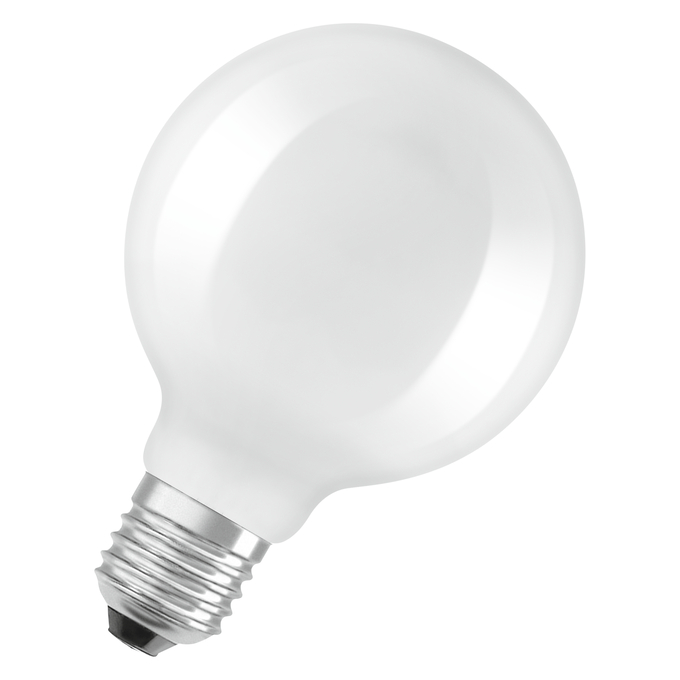

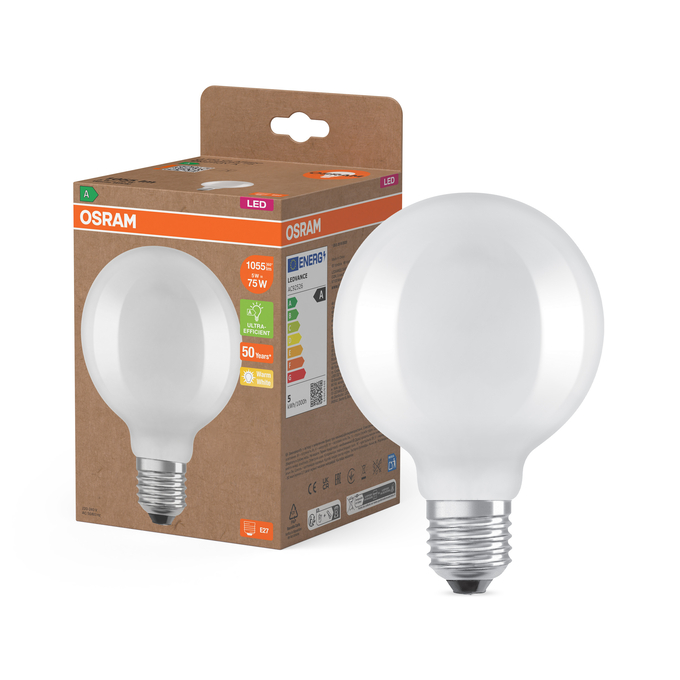

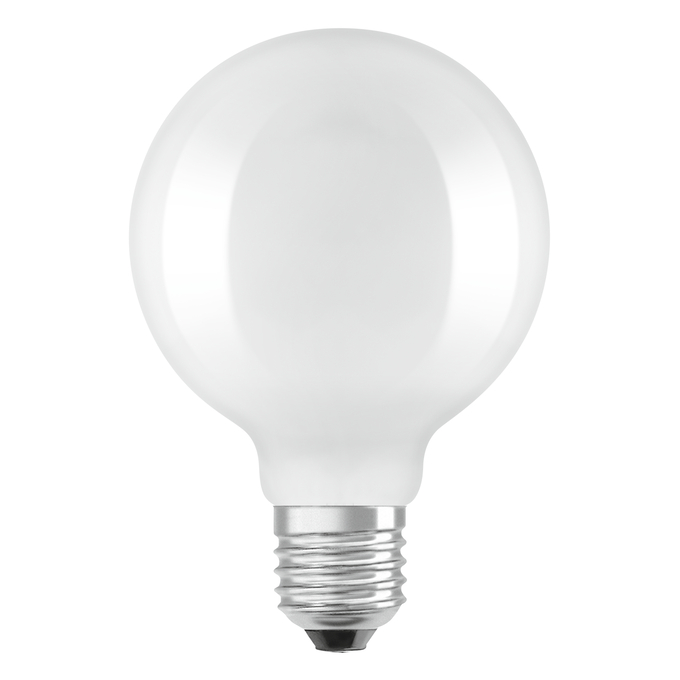

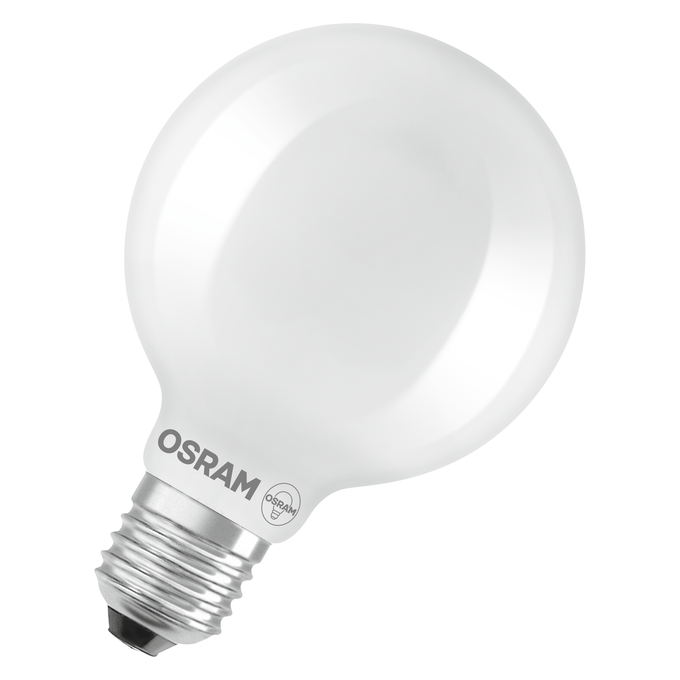

LED Classic Globe 95 75 Filament Energy efficiency class A 5W 827 Frosted E27
4058075839540
Product benefits
- Lamps with innovative LED "filament" technology
- Design, dimensions, luminous flux comparable to a halogen lamp
- Low energy consumption
- Instant 100 % light, no warm-up time
- Low flickering
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED lamps for line voltage
- Beam angle: up to 300°
- Very long lifetime of up to 50,000 h
- Very high number of switching cycles up to 100,000
- Luminous efficacy: up to 210 lm/W
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
300 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.463
Chromaticity coordinate y
0.420
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
75 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
5.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
95.00 mm
Dimmable
No
Displacement factor
>0.5
Energy consumption
5.00 kWh/1000h
Energy efficiency class
A 1)
Envelope
No
EPREL ID
1902989,2185095,2506871
Flickering metric (Pst LM)
≤1.0
GTIN
4058075839540
Height
95.00 mm
High luminance light source
No
Inrush current
3.68 A
LED light source replaces a fluorescent light source
No
Length
135.00 mm
Lifespan L70/B50 at 25 °C
50000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
211 lm/W
Luminous flux
1055 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
59
Max. lamp number on MCB B16 A
70
Maximum diameter
95 mm
Maximum temperature at tc test point
57 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC59156,AC70026,AC92526,AC92526
Networked standby power for CLS
Not relevant
Nominal current
42 mA
Nominal voltage
220…240 V
Nominal wattage
5 W
Non-directional or directional
NDLS
Number of switching cycles
500000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LSSPG9575 5W/82
Overall length
135.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
54.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
120 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
95.00 mm
