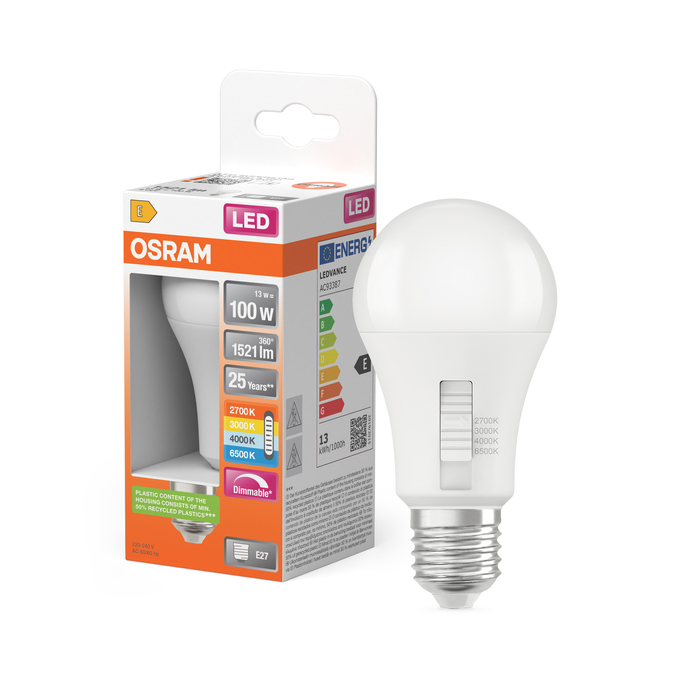

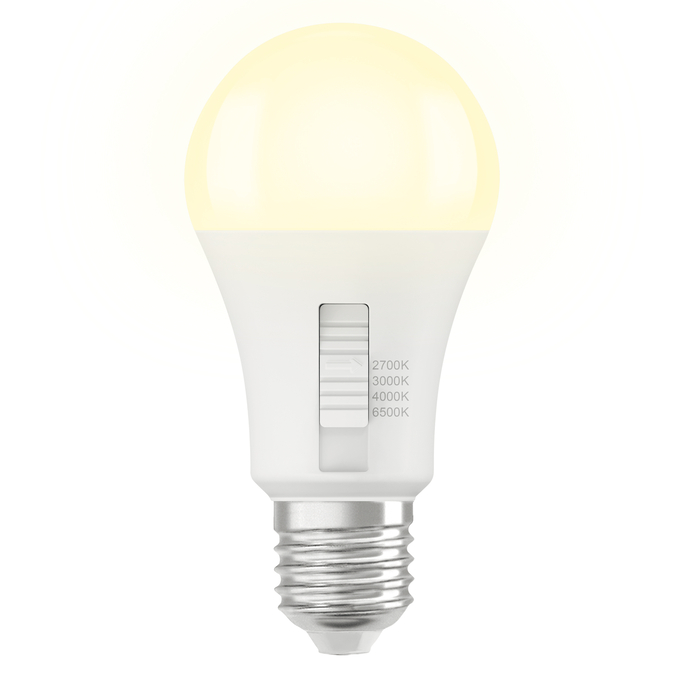

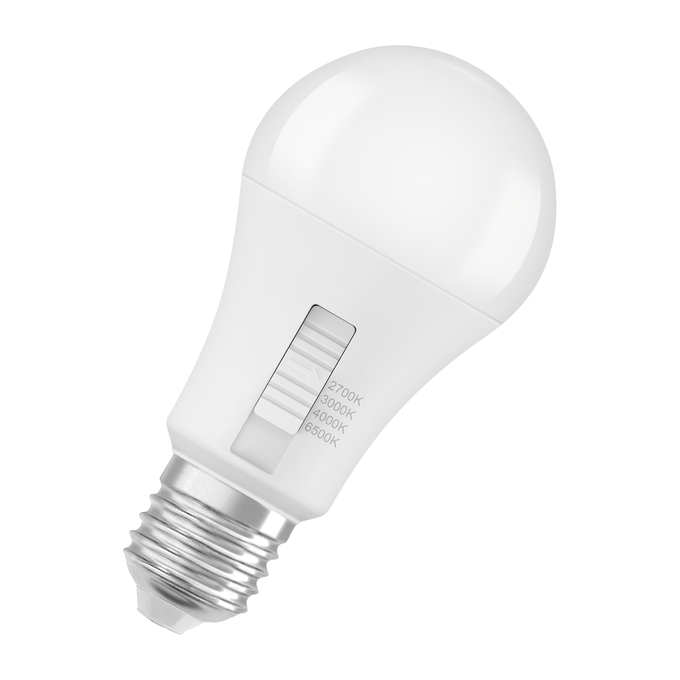

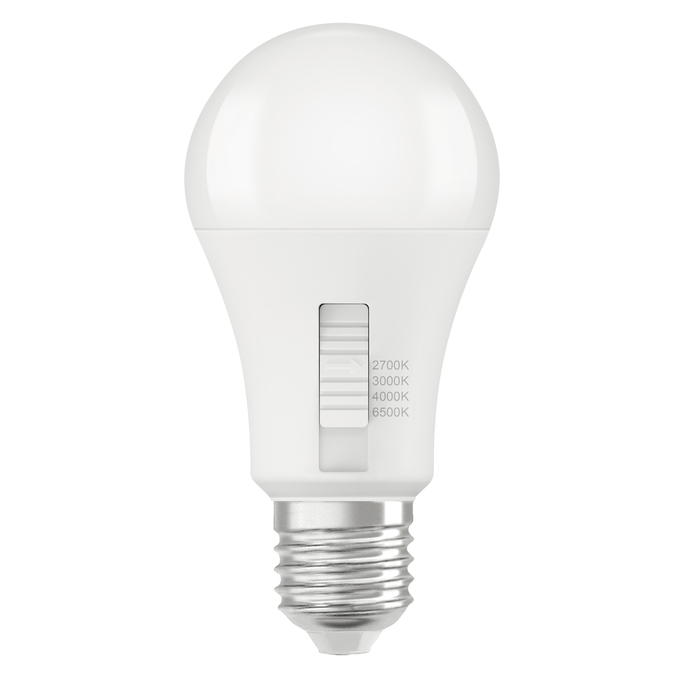

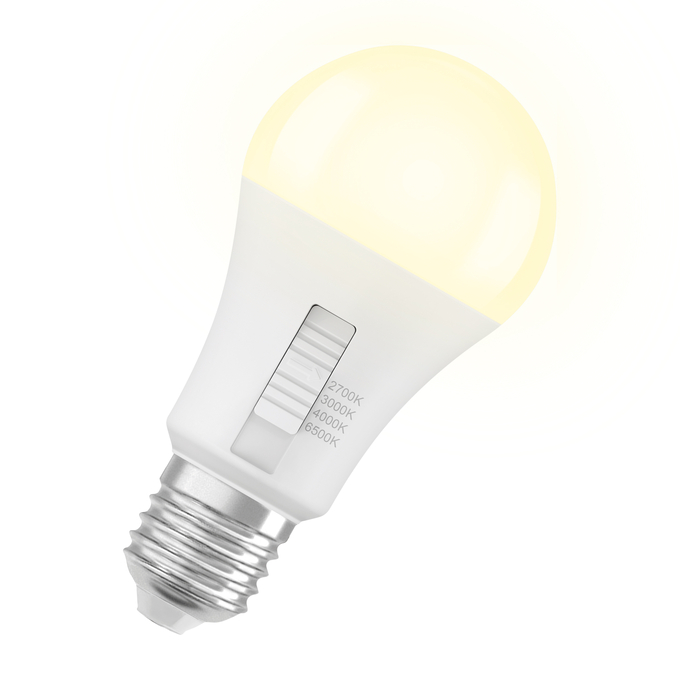

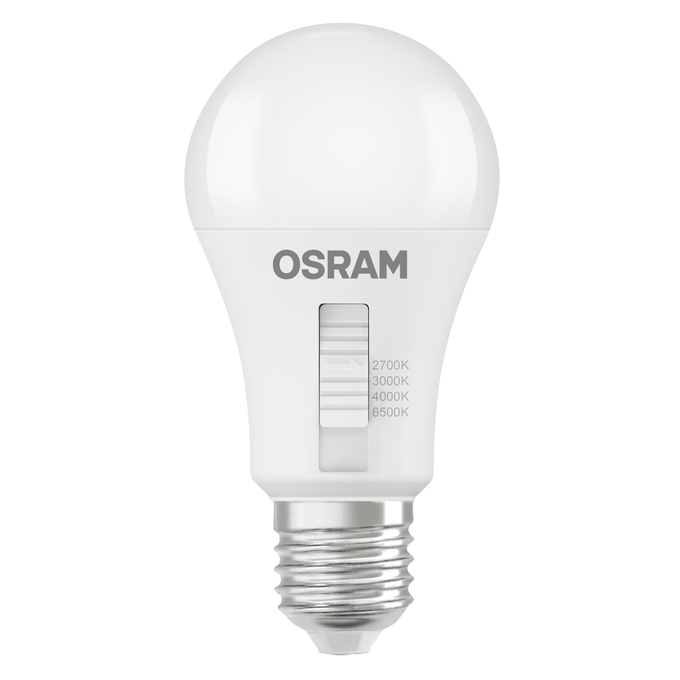

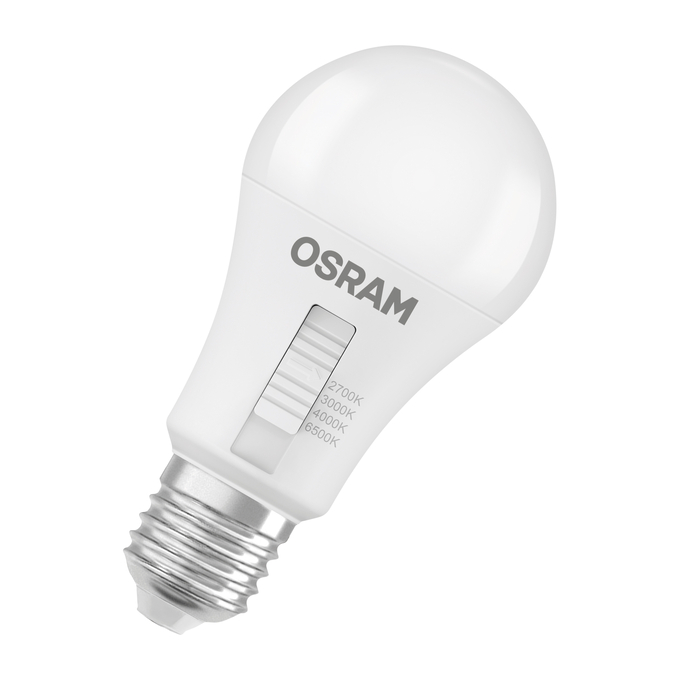

LED CLASSIC A100 DIM CCT SELECT 13W 827/830/840/865 FROSTED E27
4099854771057
Product benefits
- Adjustable light color for different lighting environment
- Selectable light color from warm to cool white by the integrated dip switch
- Lower energy consumption than incandescent or halogen lamps
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Light color easily selectable via the integrated dip switch
- Multi CCT per each type (Filament: 5 colors, Classic A shape plastic: 4 colors, Classic B and P plastic: 3 colors, Spot: 3 colors)
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
200 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.458
Chromaticity coordinate y
0.410
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
100 W
Color rendering index Ra
80
Color temperature
2700/3000/4000/6500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
13.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
STEPS
Design / version
Frosted
Diameter
60.00 mm
Dimmable
Yes 1)
Displacement factor
0.9
Energy consumption
13.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
2511479
Flickering metric (Pst LM)
1.0
GTIN
4099854771057
Height
60.00 mm
High luminance light source
No
Inrush current
2.76 A
LED light source replaces a fluorescent light source
No
Length
118.00 mm
Lifespan L70/B50 at 25 °C
25000 h
Light color
827/830/840/865
Light color (designation)
Warm Whi
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.96
Lumen maintenance at end of service lifetime
0.96
Luminous efficacy
117 lm/W
Luminous flux
1521 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
36
Max. lamp number on MCB B16 A
47
Maximum diameter
60 mm
Maximum temperature at tc test point
82.1 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC93387,AC93387
Networked standby power for CLS
0 W
Nominal current
65 mA
Nominal voltage
220…240 V
Nominal wattage
13 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDSCLA100D 13W
Overall length
118.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
48.00 g
R9 Colour rendering index
1
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
18.7 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
0.50 s
Width
60.00 mm
