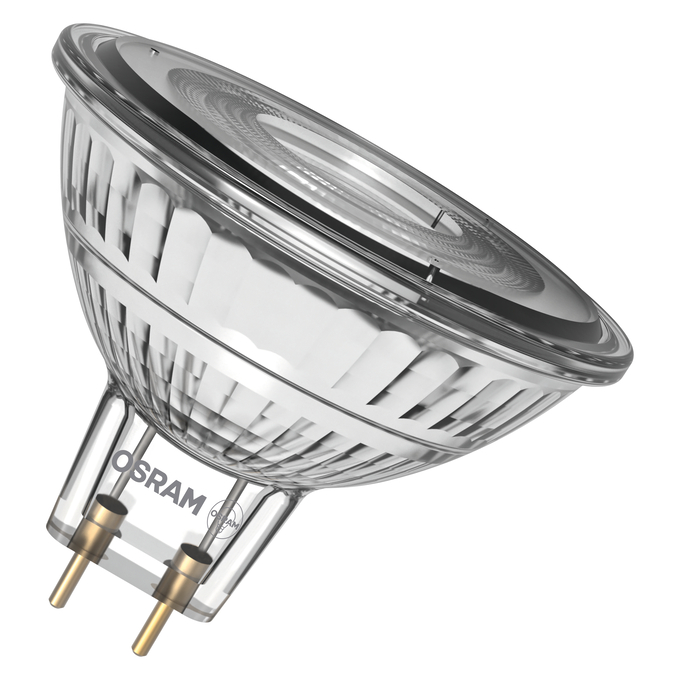

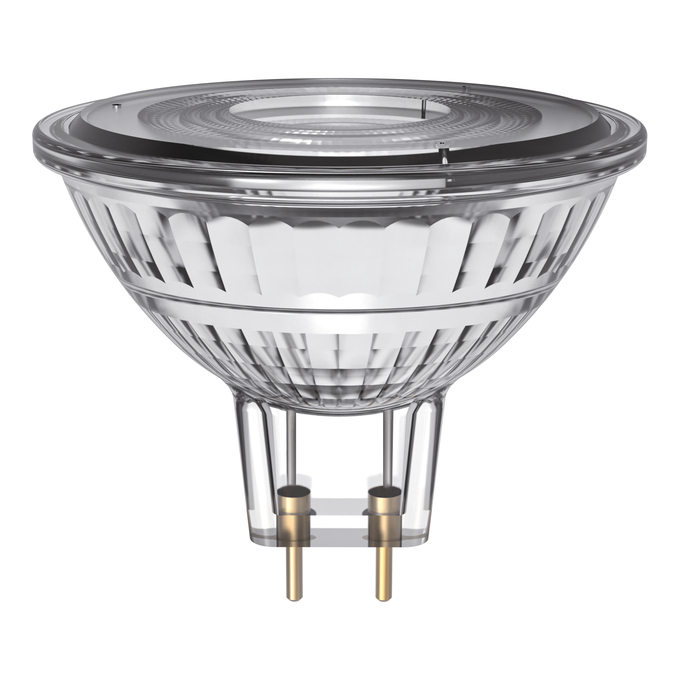

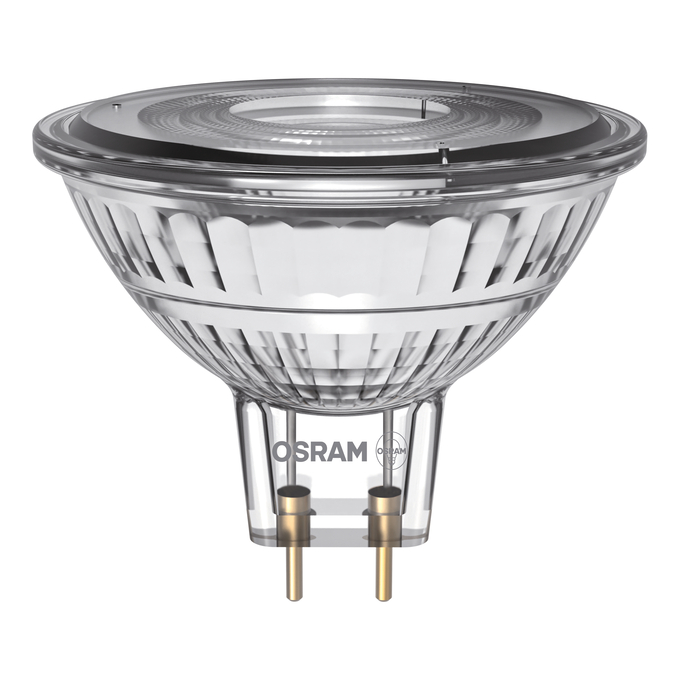

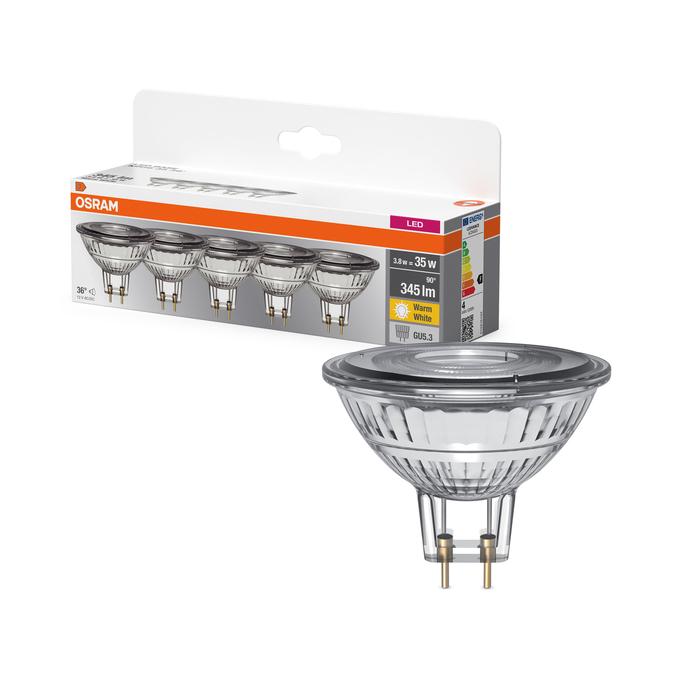

LED Base MR16 35 36° 3.8W 827 GU5.3
4099854334337
Product benefits
- Ideal for economical spotlighting
- Alternative to line-voltage halogen lamps
- Lower energy consumption than incandescent or halogen lamps
- No UV and near-IR radiation in the light beam
- Shockproof and vibration-proof thanks to LED technology
- Professional thermal management
Areas of application
- Spotlighting for accents
- Domestic applications
- Spotlighting heat-sensitive objects such as food, plants, etc.
- Outdoor use in suitable outdoor luminaires only
- As a downlight for marking walkways, doors, stairs, etc.
- Atmospheric accent lighting throughout the home
- All domestic rooms, especially where the lamps are visible
Product features
- LED lamps for low voltage
- Not dimmable
- Base: GU10
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
GU5.3
Beam angle
36 °
Beam angle correspondence
NARROW_CONE_90
Chromaticity coordinate x
0.4578
Chromaticity coordinate y
0.4101
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
35 W
Color rendering index Ra
80
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
3.80 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Spot
Diameter
50.00 mm
Dimmable
No
Displacement factor
≥ 0.5
Energy consumption
4.00 kWh/1000h
Energy efficiency class
F 1)
Envelope
No
EPREL ID
1368249,2363515
Flickering metric (Pst LM)
1.0
GTIN
4099854334337
Height
50.00 mm
High luminance light source
No
Inrush current
3.18 A
LED light source replaces a fluorescent light source
No
Length
44.00 mm
Lifespan L70/B50 at 25 °C
10000 h
Light color
827
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
GU5.3
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.95
Lumen maintenance at end of service lifetime
0.95
Luminous efficacy
90 lm/W
Luminous flux
345 lm
Luminous intensity
700 cd
Mains or non-mains
NMLS
Max. lamp number on MCB B10 A
19
Max. lamp number on MCB B16 A
30
Maximum diameter
50 mm
Maximum temperature at tc test point
77.5 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC45632,AC45632,AC84000
Nominal current
460 mA
Nominal useful luminous flux 90°
345 lm
Nominal voltage
12 V
Nominal wattage
3.8 W
Non-directional or directional
DLS
Number of switching cycles
100000
Operating mode
12V AC/DC 1)
Order reference
BASMR163536 3,8
Overall length
44.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
31.00 g
R9 Colour rendering index
1
Rated peak intensity
700 cd
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
80.6 %
Type of current
AC/DC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
50.00 mm
