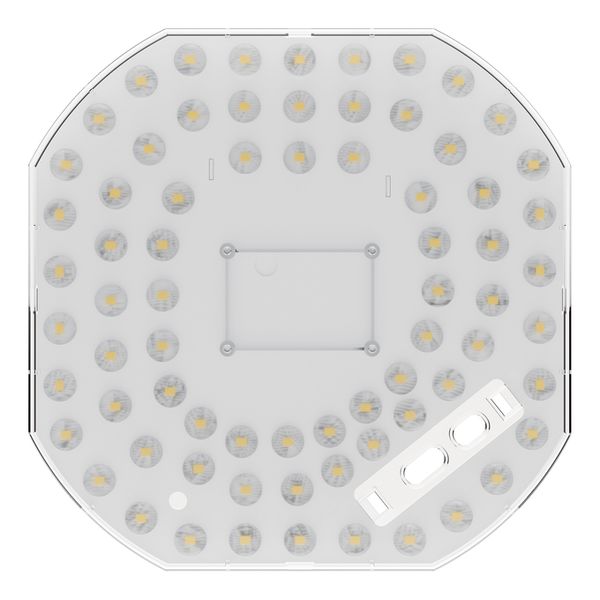

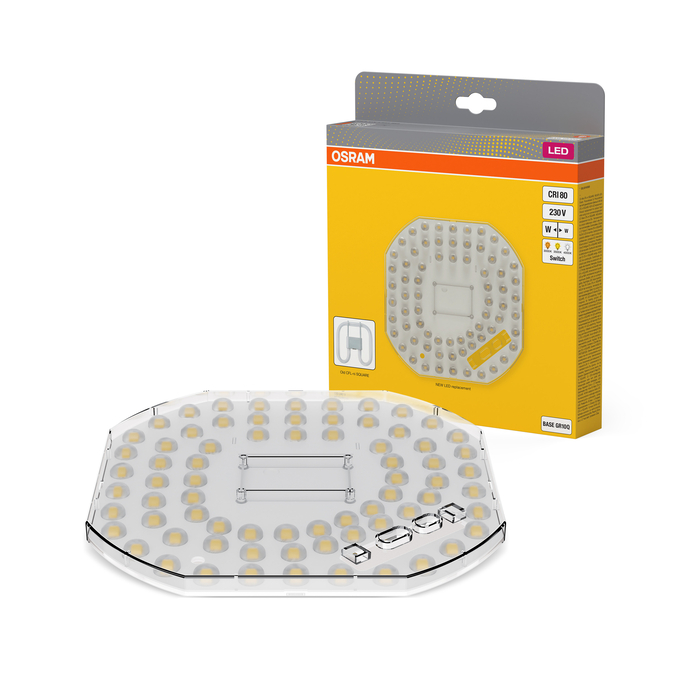

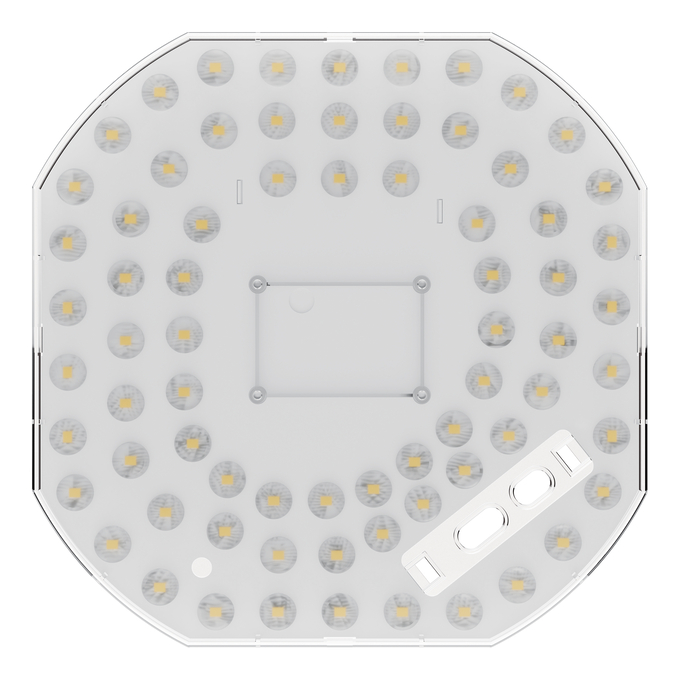

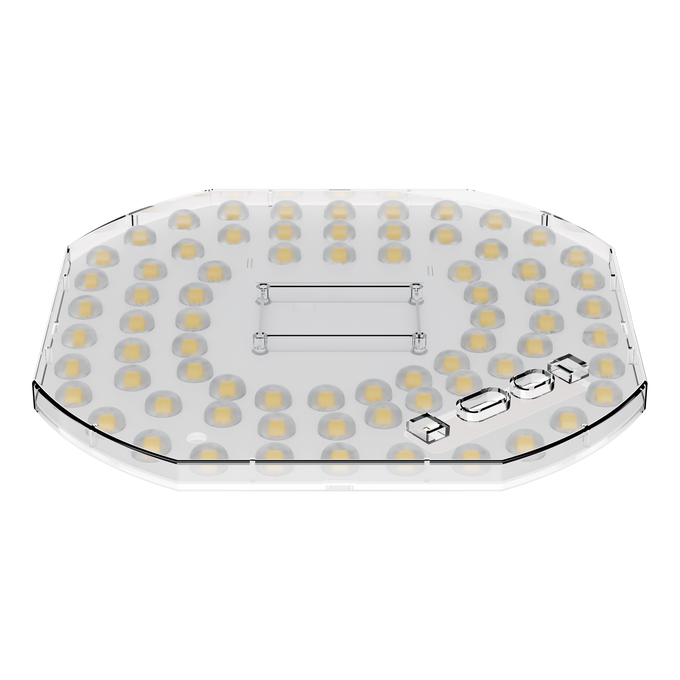

DULUX LED SQ AC MAINS 4 PINS VALUE 18W ML 830 / 835 / 840
4099854795145
Product benefits

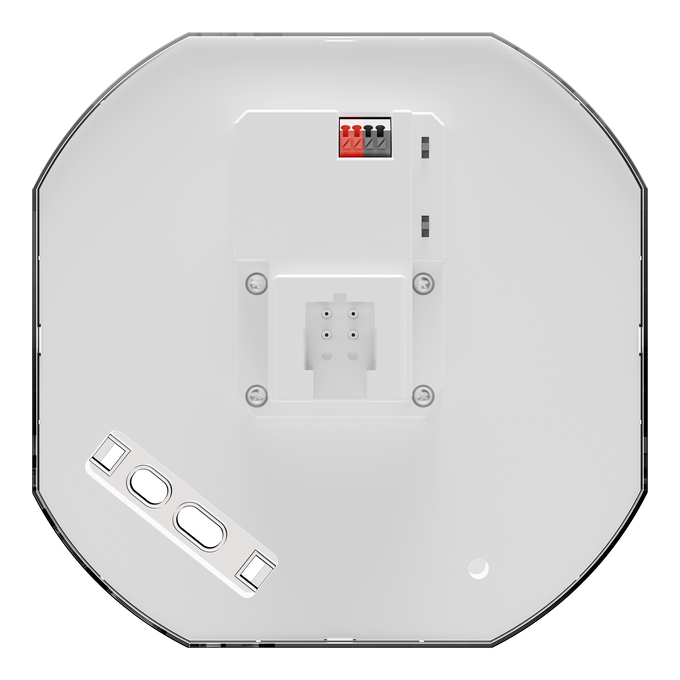

- DULUX LED SQUARE is 4-pin GR10Q socket based product
- Multi-lumen function: 3 power steps selectable with a dip switch
- Selectable 3-CCT via dip switch: 3000 K, 3500 K, 4000 K
- Operation directly on 230 V AC mains
Areas of application
- Wall and ceiling luminaire
- Walkways and corridors
- Hotels, restaurants
Product features
- LED replacement for conventional CFL SQUARE 4-pin GR10Q for use on AC mains
- Luminous flux up to 2500 lm
- Ambient temperature in operation: -20…+45 °C
Safety advice
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
GR10q
Beam angle
160 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.382
Chromaticity coordinate y
0.380
Claim of equivalent power
No
Claimed equiv. conventional lamp power
38 W
Color rendering index Ra
80
Color temperature
3000 K/3500 K/4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
18.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Correlated colour temperature type
STEPS
Design / version
Clear
Diameter
190.00 mm
Dimmable
No
Displacement factor
0.90
Energy consumption
18.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
2548707
Flickering metric (Pst LM)
1.0
GTIN
4099854795145
Height
33.0 mm
High luminance light source
No
Input voltage DC
180…270 V
Inrush current
10
LED light source replaces a fluorescent light source
No
Length
190.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color
830/835/840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
GR10q
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
125 lm/W
Luminous flux
2250 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
29
Max. lamp number on MCB B16 A
38
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC94409
Nominal current
85 mA
Nominal useful luminous flux 90°
2250 lm
Nominal voltage
220…240 V
Nominal wattage
18 W/14 W/8 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
Conventional control gear (CCG), AC
Order reference
DULUX LED SQ 18
Overall length
190.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
260.00 g
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Suitable for DC input
Yes
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
190.00 mm
