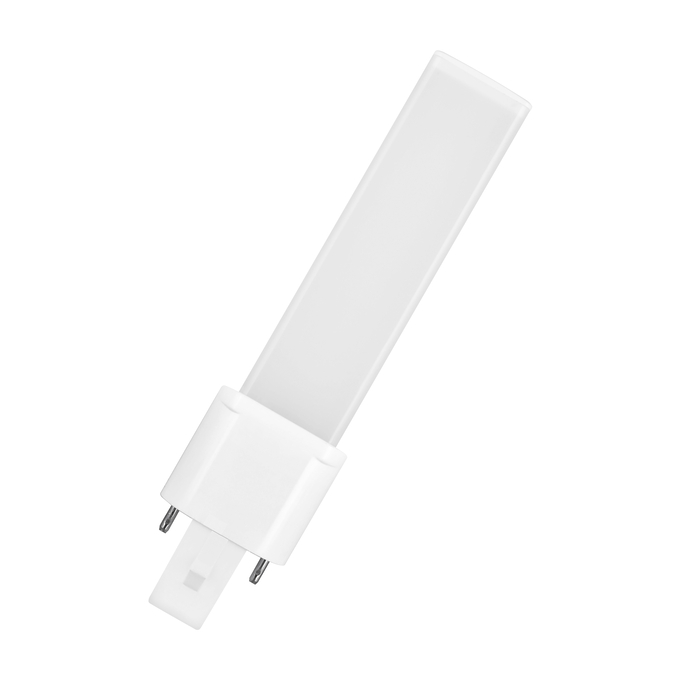

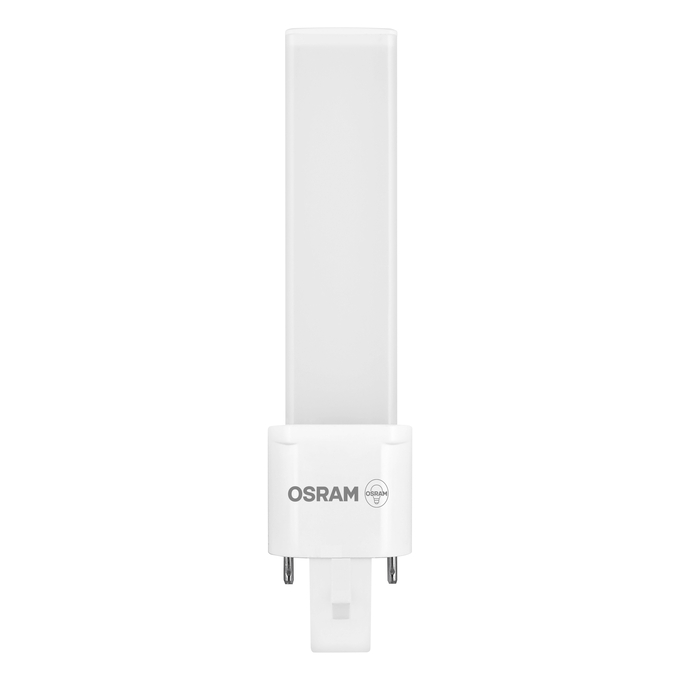

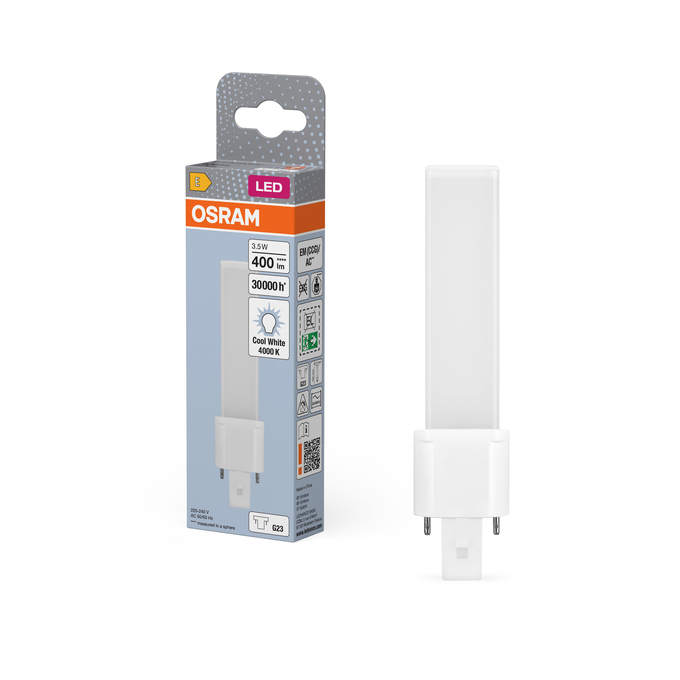

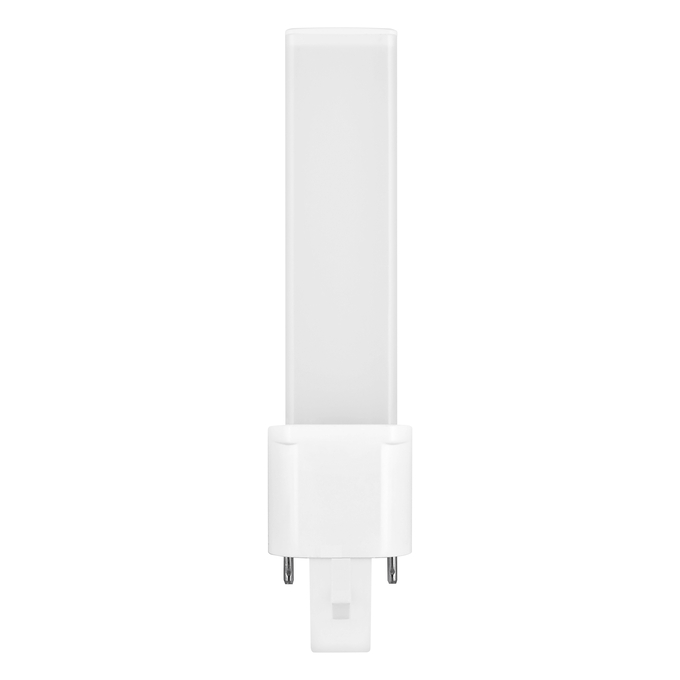

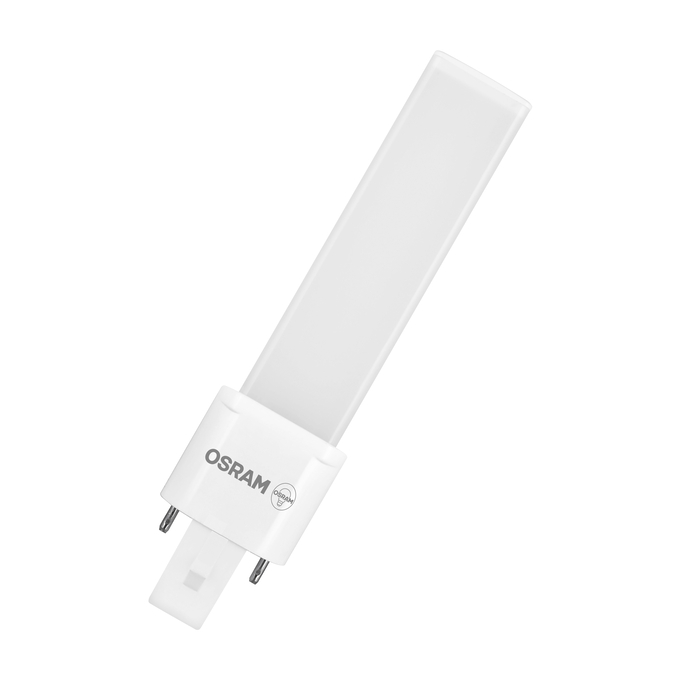

DULUX LED S7 EM & AC MAINS 3.5W 840 G23
4058075823556
Product benefits
- Easy installation
- Low energy consumption
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- Supermarkets and department stores
- Walkways and corridors
- Hotels, restaurants
Product features
- LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended two-pin plug-in G23 base
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Suitable for tandem operation.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
G23
Beam angle
130 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.381
Chromaticity coordinate y
0.379
Claim of equivalent power
No
Claimed equiv. conventional lamp power
7 W
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
3.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
32.30 mm
Dimmable
No
Displacement factor
0.90
Energy consumption
4.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
1404755,1412868,2206814,2324409
Flickering metric (Pst LM)
1.0
GTIN
4058075823556
Height
32.30 mm
High luminance light source
No
Input voltage DC
186…260 V 1)
Inrush current
11.2 A
LED light source replaces a fluorescent light source
No
Length
135.00 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
G23
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
114 lm/W
Luminous flux
400 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
53
Max. lamp number on MCB B10 A - CCG with compensation
14
Max. lamp number on MCB B10 A - CCG without compensation
250
Max. lamp number on MCB B16 A
67
Max. lamp number on MCB B16 A - CCG with compensation
17
Max. lamp number on MCB B16 A - CCG without compensation
355
Maximum diameter
33 mm
Maximum temperature at tc test point
78 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC46407,AC47835,AC71137,AC81529
Nominal current
16 mA
Nominal useful luminous flux 90°
400 lm
Nominal voltage
220…240 V
Nominal wattage
3.5 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
Conventional control gear (CCG), AC
Order reference
DULUX LED S7 EM
Overall length
135.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
34.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Suitable for DC input
Yes
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 30 %
Tube diameter
26,0 mm
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
32.30 mm
