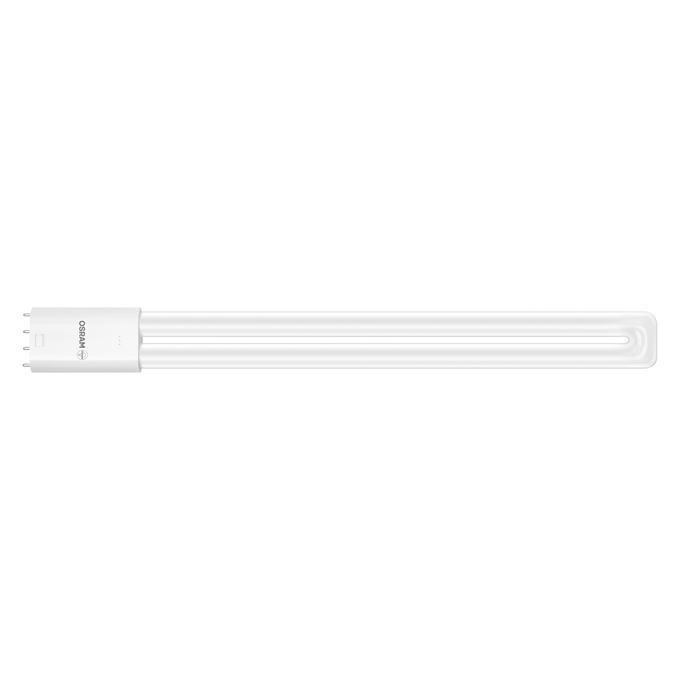

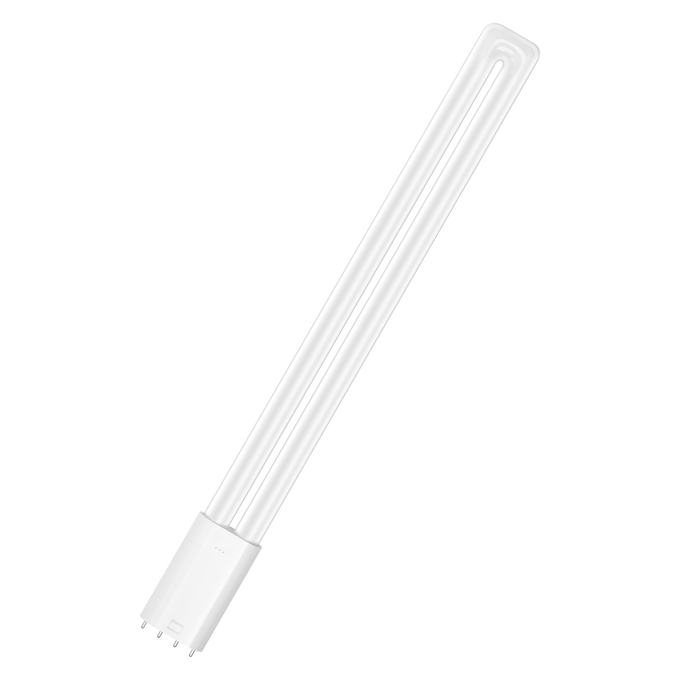

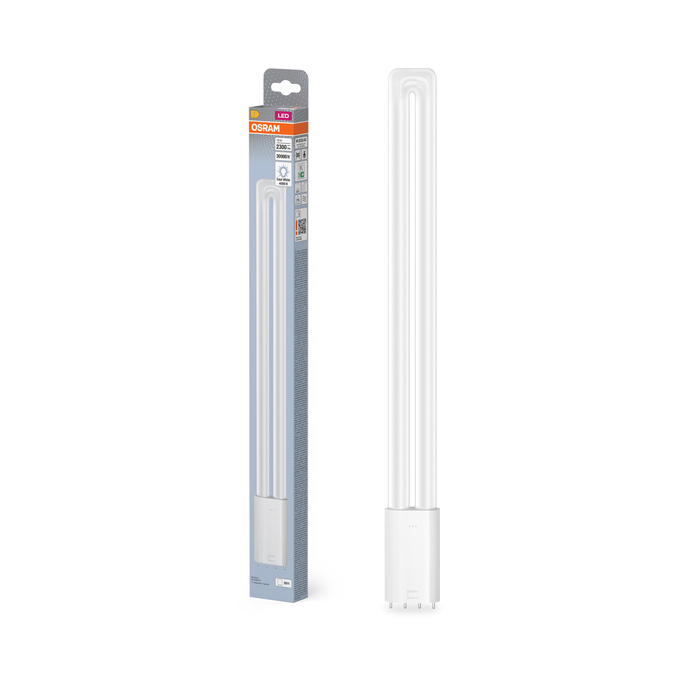

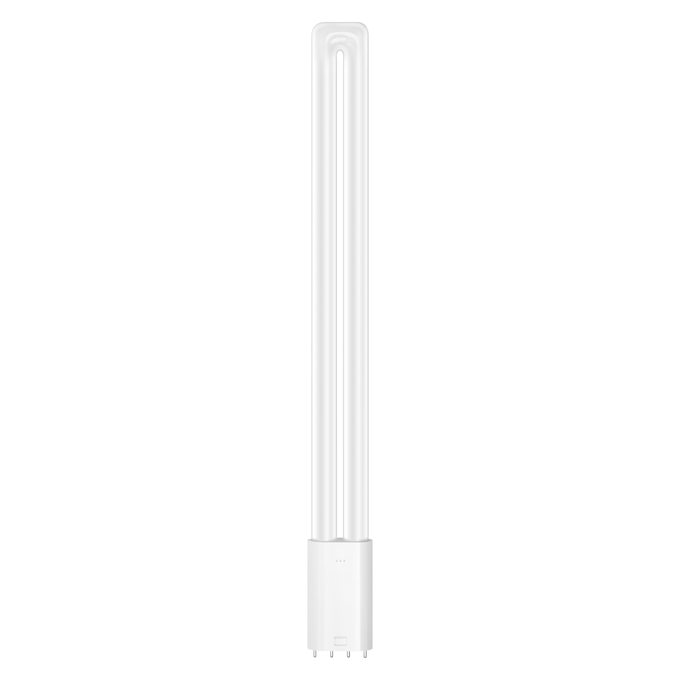

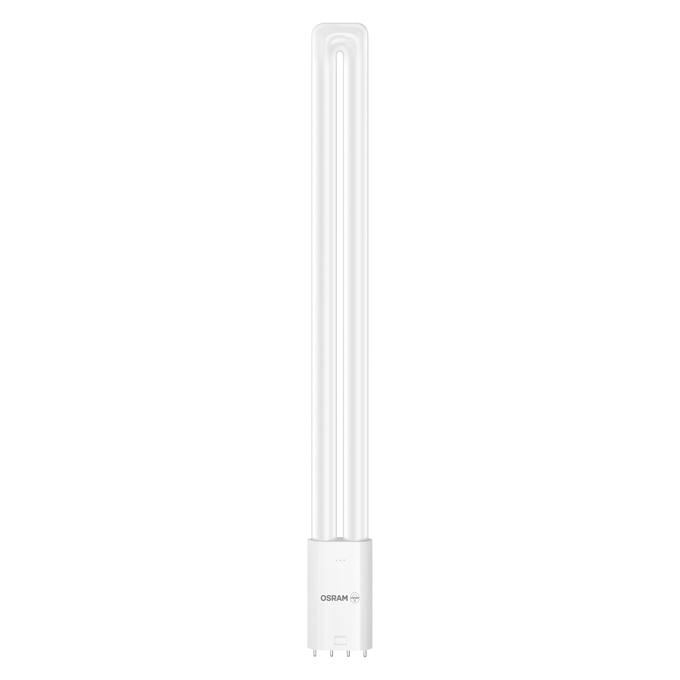

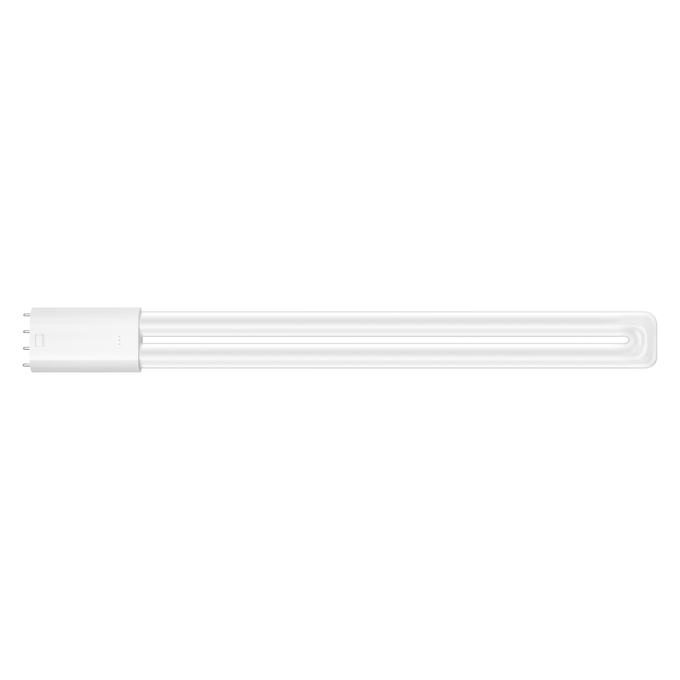

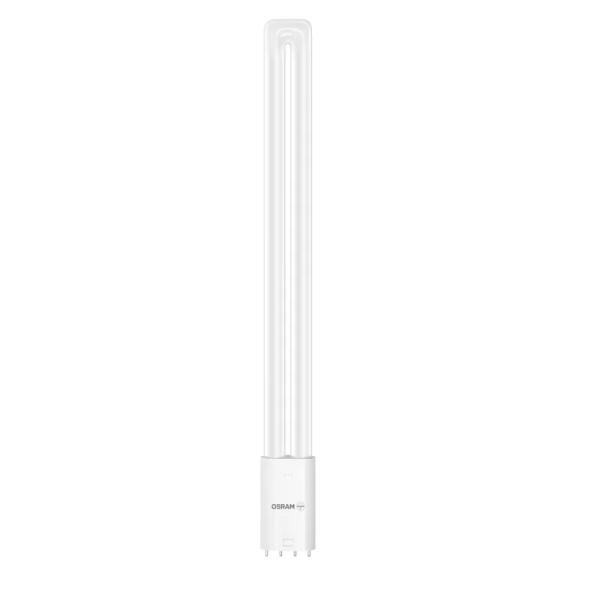

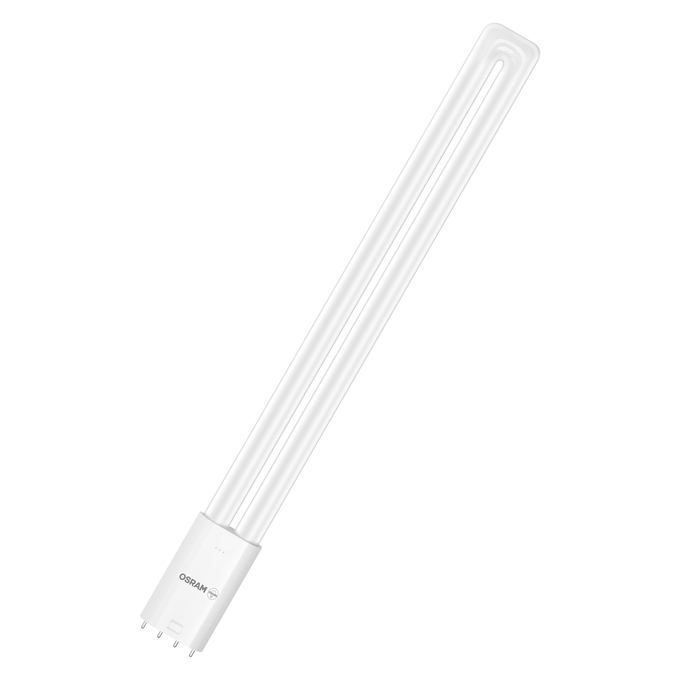

DULUX LED L36 HF & AC MAINS 18W 840 2G11
4058075557833
Product benefits
- Easy installation
- Low energy consumption
- Not suitable for operation with conventional control gear
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Offices, public buildings
- Shops
- Hotels, restaurants
- Industry
Product features
- LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended four-pin plug-in 2G11 base
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Always check the latest update of the compatibility list available on .
- Not suitable for operation with conventional control gear.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Ambient temperature range
-20…+45 °C 1)
Anti-glare shield
No
Base (standard designation)
2G11
Beam angle
140 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.381
Chromaticity coordinate y
0.379
Claim of equivalent power
No
Claimed equiv. conventional lamp power
36 W
Color rendering index Ra
80
Color temperature
4000 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
18.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Frosted
Diameter
44.00 mm
Dimmable
No
Displacement factor
0.90
Energy consumption
18.00 kWh/1000h
Energy efficiency class
E 1)
Envelope
No
EPREL ID
604665,1412854,2206875
Flickering metric (Pst LM)
1.0
GTIN
4058075557833
Height
44.00 mm
High luminance light source
No
Input voltage DC
186…260 V 2)
Inrush current
8 A
LED light source replaces a fluorescent light source
No
Length
416.50 mm
Lifespan L70/B50 at 25 °C
30000 h
Light color
840
Light color (designation)
Cool White
Light source cap-type (or other electric interface)
2G11
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
127 lm/W
Luminous flux
2300 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
110
Max. lamp number on MCB B16 A
180
Maximum temperature at tc test point
75 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC35199,AC47845,AC71213
Nominal current
79 mA
Nominal voltage
220…240 V
Nominal wattage
18 W
Non-directional or directional
NDLS
Number of switching cycles
200000
Operating frequency
50/60 Hz
Operating mode
ECG, AC Mains 1)
Order reference
DULUX LED L36 H
Overall length
416.50 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product recyclability
Mostly recyclable product 1)
Product weight
132.00 g
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.90
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
0.4
Suitable for DC input
Yes
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 30 %
Tube diameter
17,0 mm
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
44.00 mm
