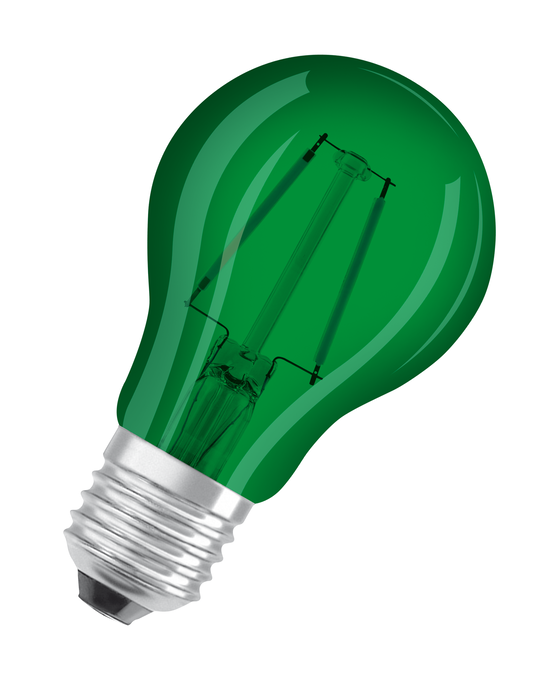

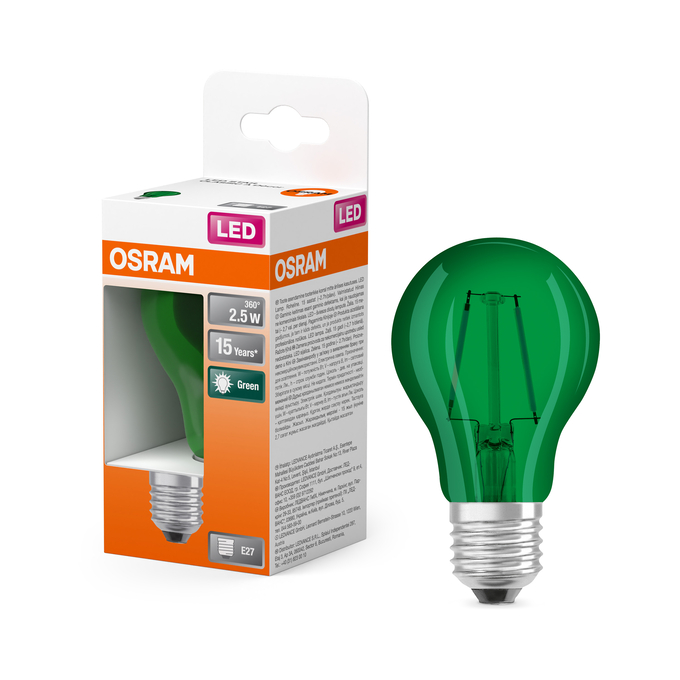

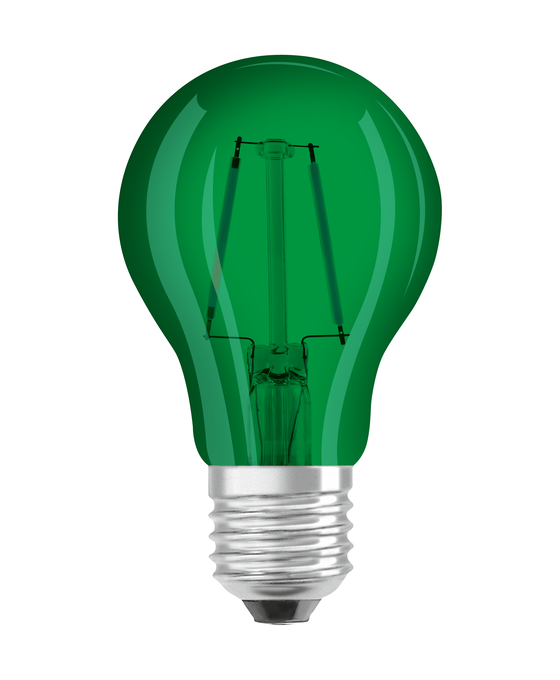

LED Star Classic A 15 Decor 2.5W 175 Green E27
Скидка 10%
4058075433984
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Extremely long life
- Simple direct replacement for conventional incandescent lamps
- Low thermal output
Areas of application
- Indoor lighting, terraces, beer gardens and restaurants
- Energy-saving and low-maintenance use in marquees and leisure parks
- Garlands of lights
- Outdoor use in outdoor luminaires only (minimum IP65)
Product features
- LED lamps for line voltage
- Conventional light bulb shape
- Base: E27
- Not suitable for use with dimmers
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For Guarantee see
- For further products and actual information concerning LED lamps see
Ambient temperature range
-20…+40 °C
Anti-glare shield
No
Base (standard designation)
E27
Beam angle
300 °
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0,273
Chromaticity coordinate y
0,531
Claim of equivalent power
Yes
Claimed equiv. conventional lamp power
7 W
Color rendering index Ra
15
Color temperature
7500 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
2.50 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Design / version
Colored
Diameter
60.00 mm
Dimmable
No
Displacement factor
0.40
Envelope
No
Flickering metric (Pst LM)
1.0
GTIN
4058075433984
Height
60.00 mm
High luminance light source
No
ILCOS
DRAA/C-4-827-220-240-E27-55
Inrush current
1.8 A
LED light source replaces a fluorescent light source
No
Length
105.00 mm
Lifespan L70/B50 at 25 °C
15000 h
Light color
175
Light color (designation)
Green
Light source cap-type (or other electric interface)
E27
Lighting technology used
LED
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.70
Lumen maintenance at end of service lifetime
0.70
Luminous efficacy
18 lm/W
Luminous flux
45 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Max. lamp number on MCB B10 A
250
Max. lamp number on MCB B16 A
400
Maximum diameter
60 mm
Maximum temperature at tc test point
60 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
19 mA
Nominal useful luminous flux 90°
45 lm
Nominal voltage
220…240 V
Nominal wattage
2.5 W
Non-directional or directional
NDLS
Number of switching cycles
100000
Operating frequency
50/60 Hz
Operating mode
AC Mains
Order reference
LEDSCLA7 2,5W/1
Overall length
105.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.50
Product recyclability
Mostly recyclable product 1)
Product remark
All technical parameters apply to the entire la
Product weight
31.00 g
R9 Colour rendering index
1
Rated lamp survival factor at 6,000 h
≥ 0.90
Rated LLMF at 6,000 h
0.80
Standard deviation of color matching
≤6 sdcm
Standby power
0 W
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
≤0.4
Survival factor
0.90
Temperature range at storage
-20…+80 °C
Type of current
AC
Type of protection
IP20
Warm-up time (60 %)
‹ 0.50 s
Width
60.00 mm
