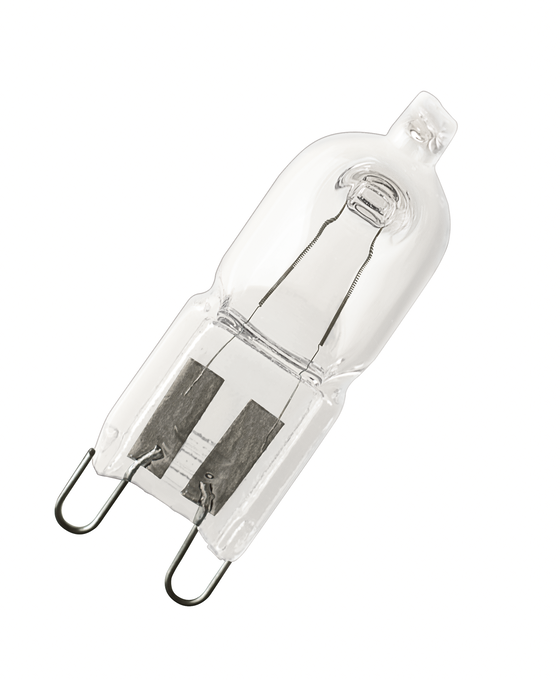

HALOPIN SST 35 W 230 V G9
4008321204547
Product benefits
- Brilliant accent lighting
- Incredibly small dimensions for revolutionary new luminaire designs
- Robust filament design thanks to innovative, unique bulb pinch technology
- Approved for use in open luminaires (to IEC 60598-1)
- Simple handling thanks to G9 plug-in base/holder system
- No transformer required
- UV filter
- Complies with IEC 60432-3 thanks to integrated fuse function
Areas of application
- Workplace lighting
- Lighting for reading
Product features
- Average life: 2,000 h
- Dimmable
- Color rendering index Ra: 100
- Base: G9
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
G9
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0.452
Chromaticity coordinate y
0.409
Claim of equivalent power
No
Claimed equiv. conventional lamp power
40 W
Color rendering index Ra
100
Color temperature
2800 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
35.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Correlated colour temperature type
SINGLE_VALUE
Design / version
Tube
Diameter
14.00 mm
Dimmable
Yes
Energy consumption
35.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
1498551,714427
GTIN
4008321204547
Height
14.00 mm
High luminance light source
No
ILCOS
HSGST/C/UB-33-230-G9-22
Length
43.00 mm
Light center length (LCL)
22,0 mm
Light color
1028
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
G9
Lighting technology used
OTHER
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
13 lm/W
Luminous flux
460 lm
Mains or non-mains
MLS
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC35305,A52042A
Nominal voltage
230 V
Nominal wattage
35 W
Non-directional or directional
NDLS
Number of switching cycles
50000
Order reference
66733 ECO SST
Overall length
43.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product weight
2.9 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Starting time
0.0 s
Width
14.00 mm
