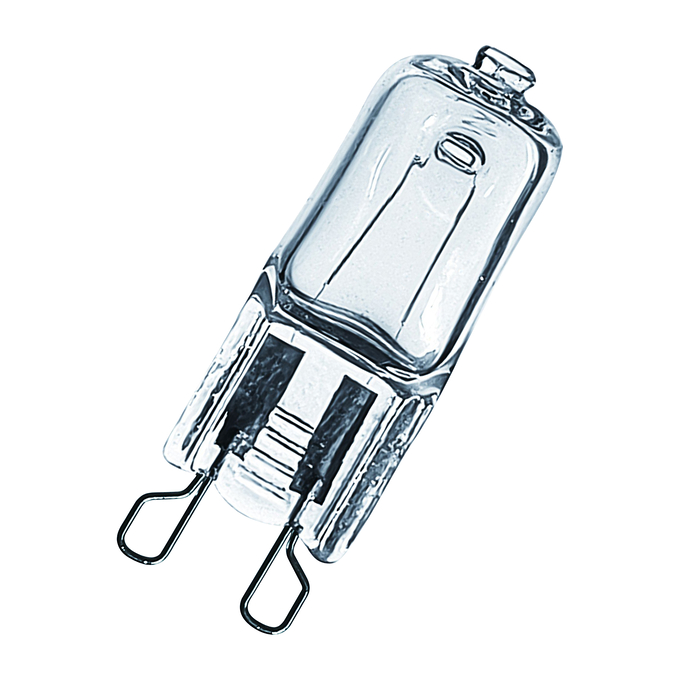

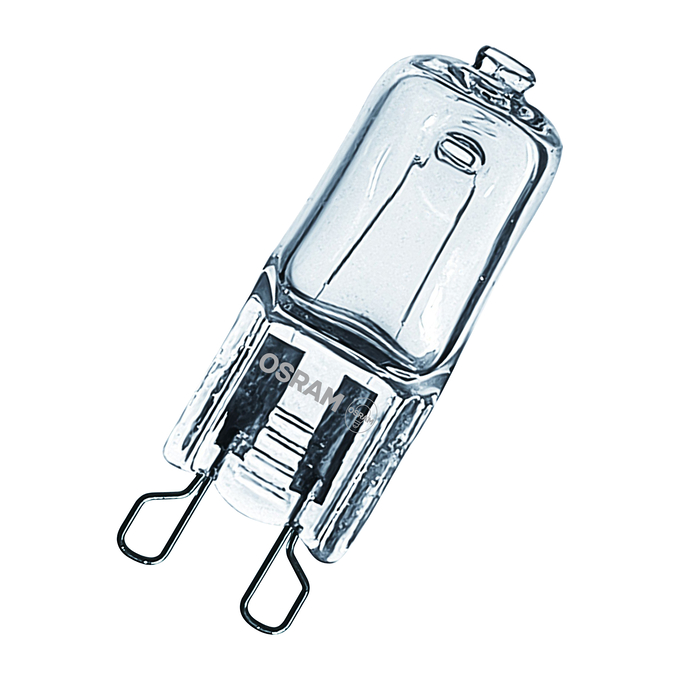

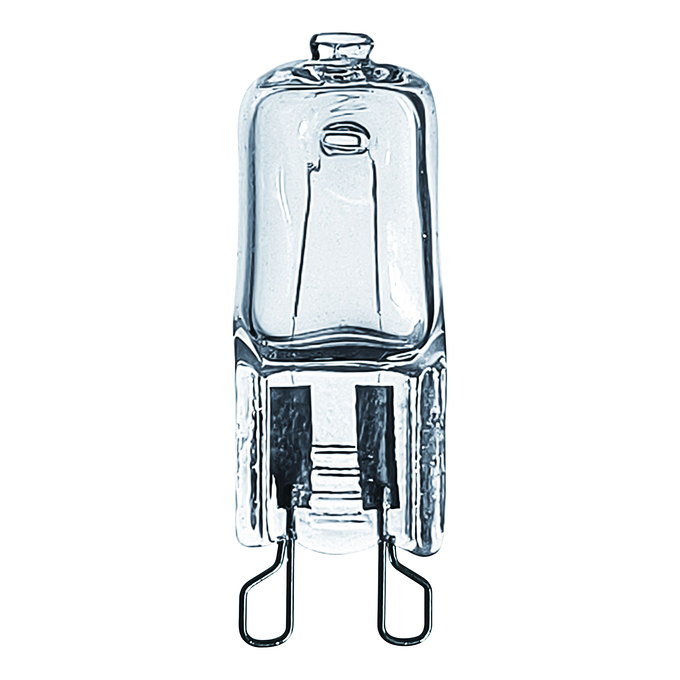

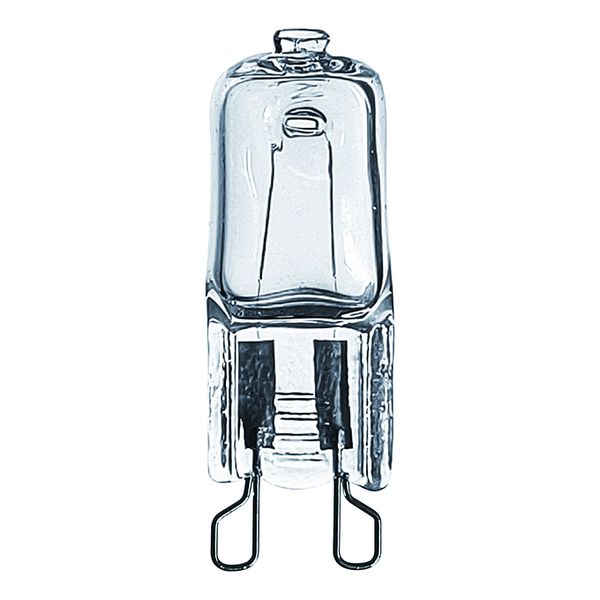

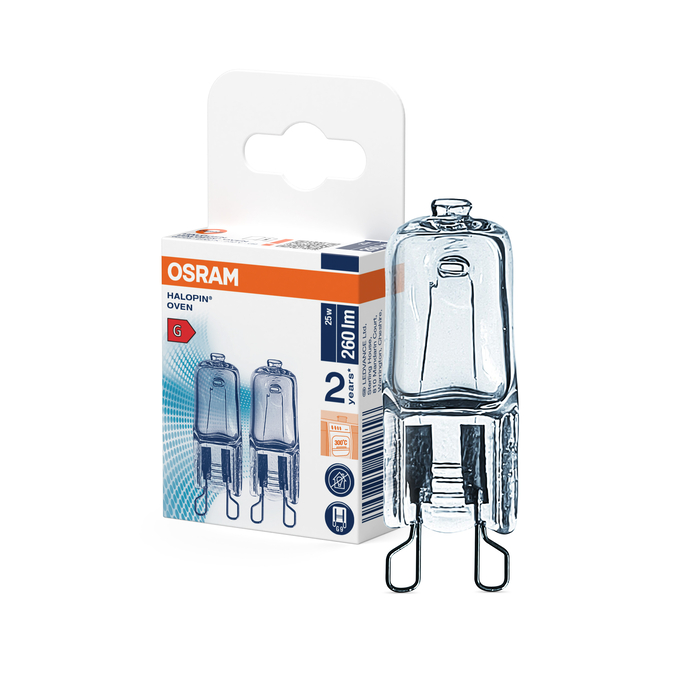

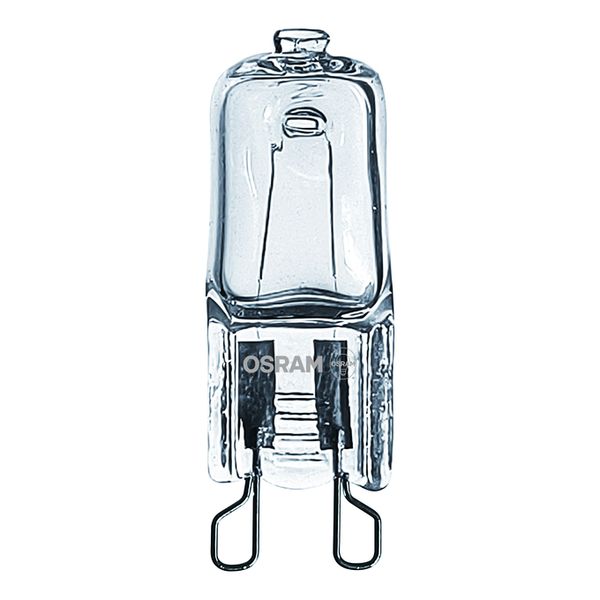

HALOPIN OVEN 25 W 230 V G9
4099854491818
Product benefits
- Optimum halogen content for high temperatures
- Contains no mercury
Areas of application
- Baking ovens
Product features
- Average life: 2,000 h
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
- Not designed as a replacement for conventional lighting in private household.
Ambient temperature range
-20…+300 °C
Anti-glare shield
No
Base (standard designation)
G9
Beam angle correspondence
SPHERE_360
Chromaticity coordinate x
0.460
Chromaticity coordinate y
0.410
Claim of equivalent power
No
Color rendering index Ra
100
Color temperature
2700 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
25.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Correlated colour temperature type
SINGLE_VALUE
Design / version
Tube
Diameter
13.00 mm
Dimmable
Yes 1)
Energy consumption
25.00 kWh/1000h
Energy efficiency class
G 1)
Envelope
No
EPREL ID
2194497
GTIN
4099854491818
Height
13.00 mm
High luminance light source
No
Length
41.00 mm
Lifespan L70/B50 at 25 °C
2000 h
Light color
1027
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
G9
Lighting technology used
HL
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Lumen main.fact.at end of nom.life time
0.85
Luminous efficacy
10 lm/W
Luminous flux
260 lm
Mains frequency
50/60 Hz
Mains or non-mains
MLS
Maximum diameter
13 mm
Maximum temperature at tc test point
300 °C
Mercury content
0.0 mg
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC68760
Nominal current
109 mA
Nominal voltage
230 V
Nominal wattage
25 W
Non-directional or directional
NDLS
Number of switching cycles
8000
Operating frequency
50/60 Hz
Operating mode
230V AC Mains
Order reference
66725 OVEN 25W
Overall length
41.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
1.00
Product recyclability
Mostly recyclable product 1)
Product remark
Heat-resistant above 300
Product weight
3.2 g
R9 Colour rendering index
100
Standard deviation of color matching
≤6 sdcm
Standby power
0.0 W
Starting time
< 0.2 s
Survival factor
0.85
Temperature range at storage
-20…+85 °C
Type of current
AC
UV protection
Yes
Width
13.00 mm
