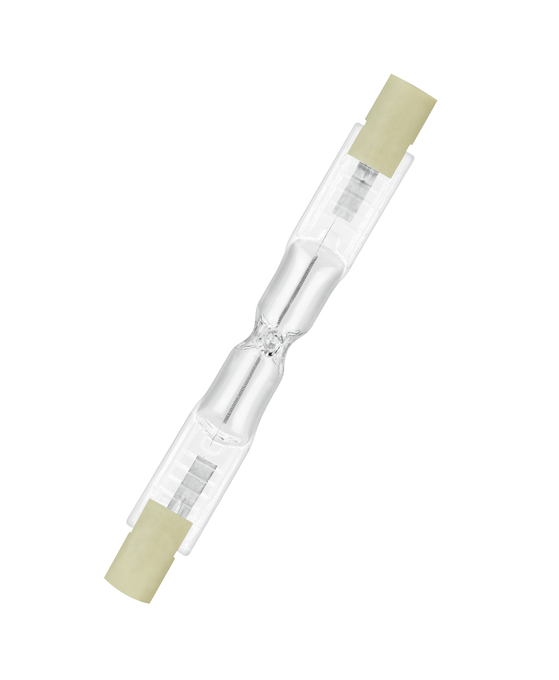

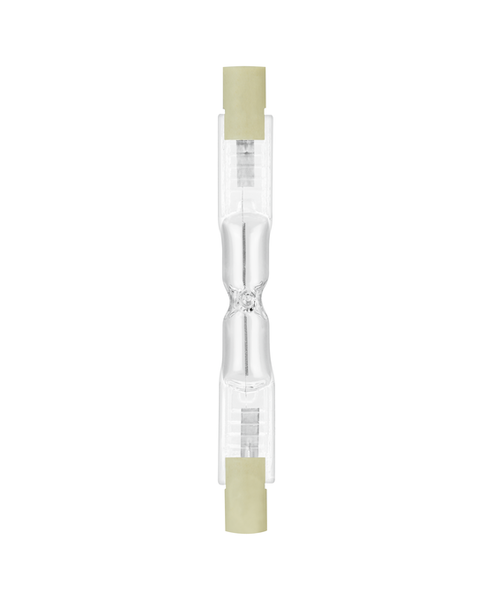

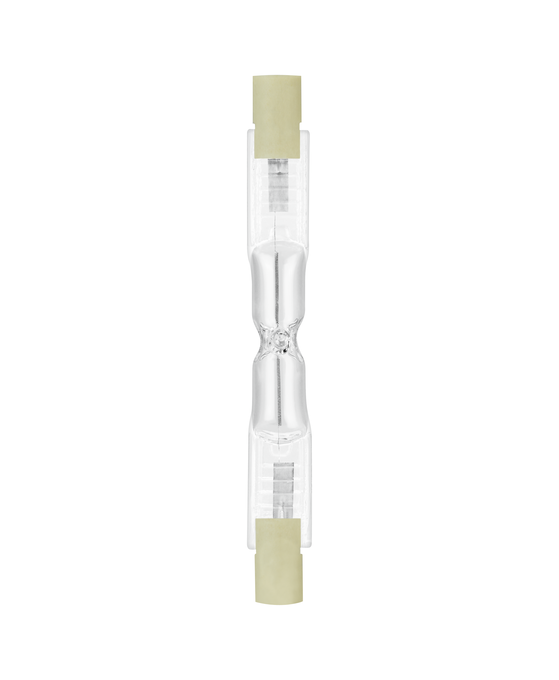

HALOLINE SST 120 W 240 V R7S
4008321325372
Product benefits
- Brilliant accent lighting
- Direct replacement for standard tubular halogen lamps
- Significantly lower CO2 emissions compared to standard version
- Lower thermal output (compared with the standard reference product)
- No transformer required
Areas of application
- Entrance lighting
- Pathway lighting
- Garden lighting
- Traffic areas
- Shops
- Restaurants, hotels and similar prestigious applications
- Offices, public buildings
- Ideal for emphasizing and accentuating the structure of a room
Product features
- Average life: 2,000 h
- Dimmable
- Color rendering index Ra: 100
- Base: R7s
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Anti-glare shield
No
Base (standard designation)
R7s
Beam angle correspondence
SPHERE_360
Burning position
Any
Chromaticity coordinate x
0.444
Chromaticity coordinate y
0.406
Claim of equivalent power
No
Color rendering index Ra
100
Color temperature
2900 K
Color-tuneable light source
No
Connected light source (CLS)
No
Construction wattage
120.00 W
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Design / version
Tube
Diameter
12.00 mm
Dimmable
Yes
Displacement factor
1
Energy consumption
120.00 kWh/1000h
Energy efficiency class
G
Envelope
No
EPREL ID
714433,1554000
GTIN
4008321325372
Height
12.00 mm
High luminance light source
No
ILCOS
HDG-120-240-R7s-74,9
Length
78.00 mm
Lifespan L70/B50 at 25 °C
2000 h
Light color
1029
Light color (designation)
Warm White
Light source cap-type (or other electric interface)
R7s
Lighting technology used
OTHER
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
18 lm/W
Luminous flux
2245 lm
Mains or non-mains
MLS
Mercury-free
Yes
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Model number
AC35331,AC51815
Networked standby power for CLS
not applicable
Nominal current
500 mA
Nominal voltage
240 V
Nominal wattage
120 W
Non-directional or directional
NDLS
Order reference
64695 ECO SST
Overall length
78.00 mm
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Fuse protection with indicated values recommended acc. to IEC60357, EN603
Product weight
5.6 g
Standby power
0 W
Starting time
0 s
UV protection
No
Width
12.00 mm
