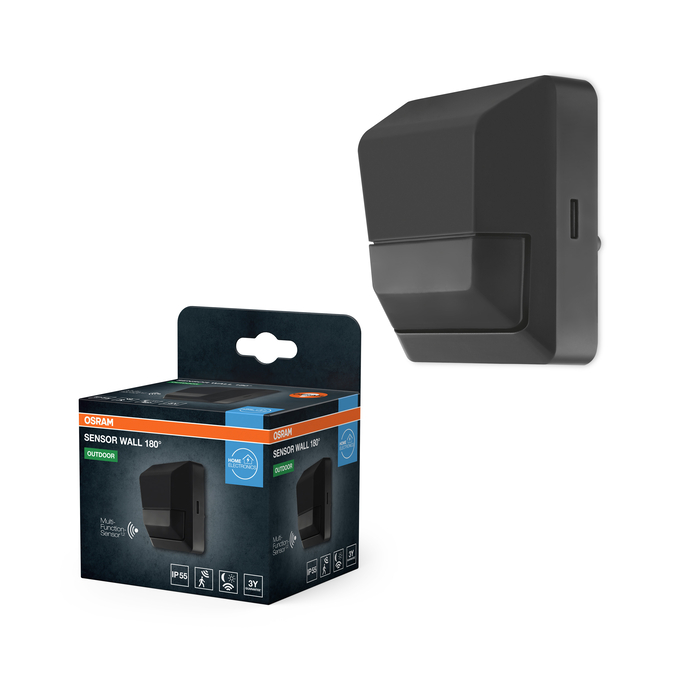

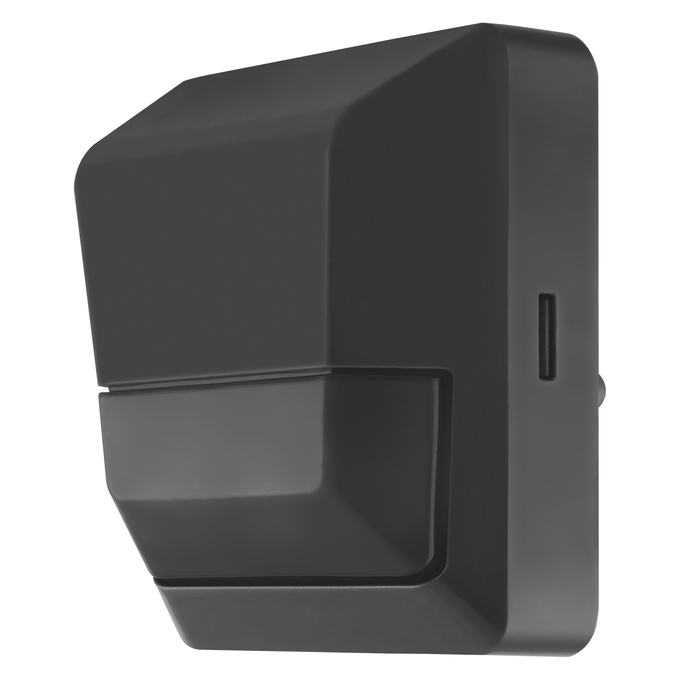

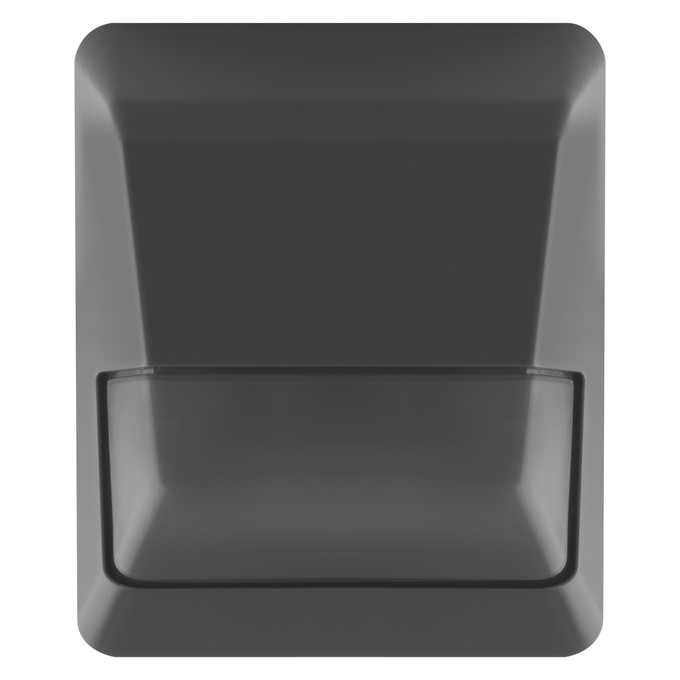

SENSOR WALL 180DEG IP55 DG
4099854454196
Product benefits
- Precise motion detection based on new sensor design
Areas of application
- Outdoor
- Corridors, entrance areas
- Garages
- Basement
- Arcade passage
- 180° detection range allowing the sensor to be installed directly next to doorways
Product features
- 3 operating modes selectable (light 6h continous on, switch-on by movement or dusk)
- Zero crossing circuit optimized for LED luminaire operation
- Type of protection: IP55
- Protection class: II
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
GTIN
4099854454196
Height
91.00 mm
Length
76.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Dark grey
Product recyclability
Mostly recyclable product 1)
Product weight
136.00 g
Protection class
II
Type of connection
Screw terminal, 3-Pole
Type of protection
IP55
Width
50.00 mm
