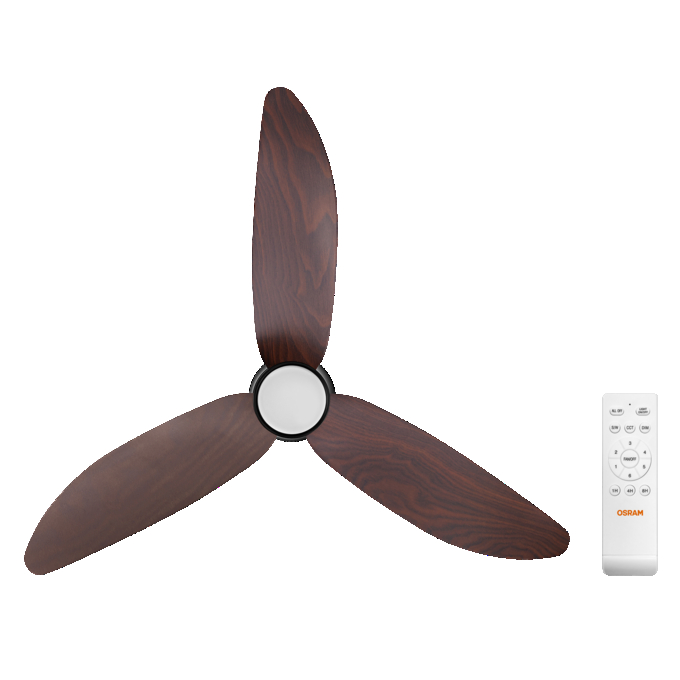

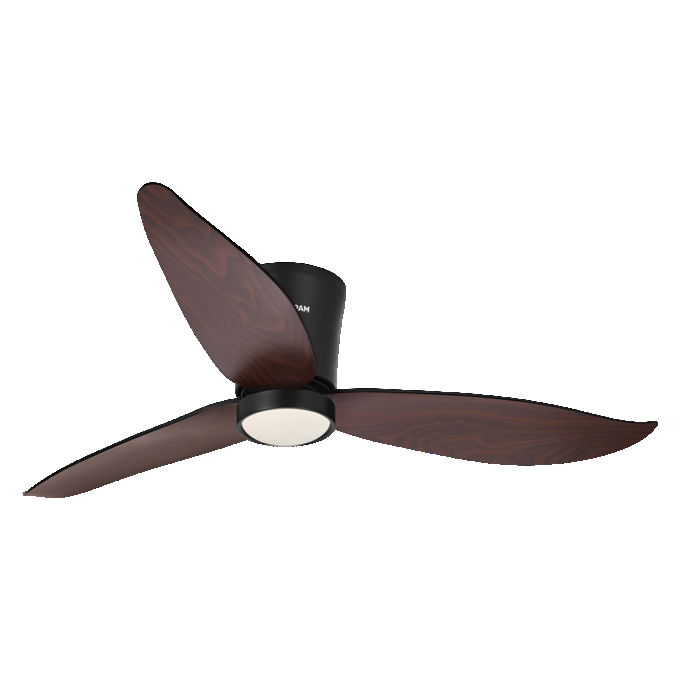

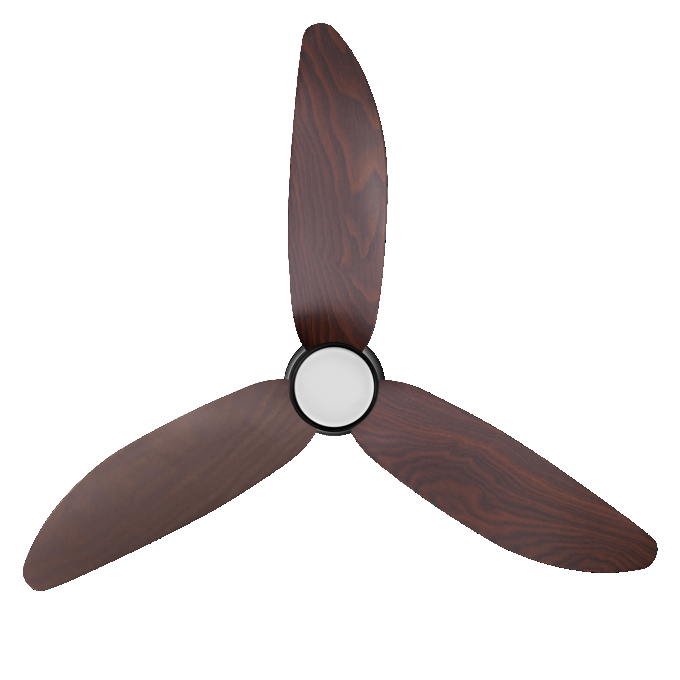

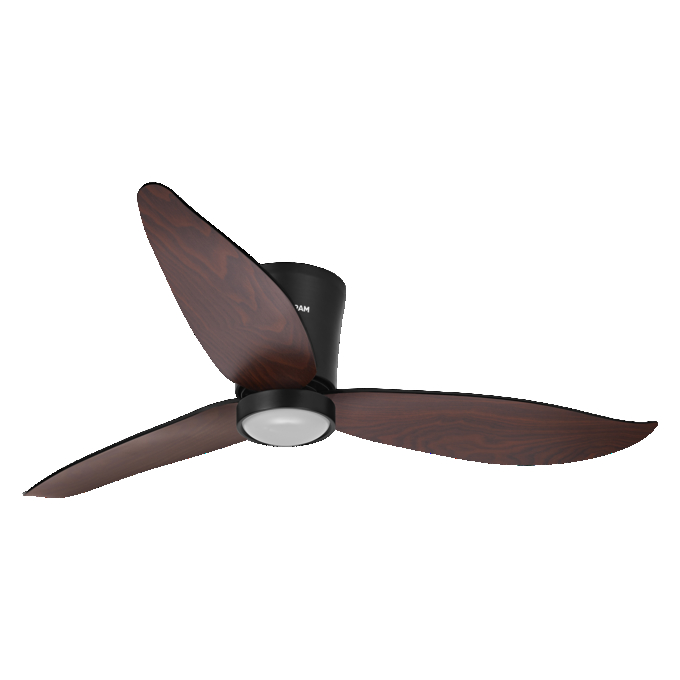

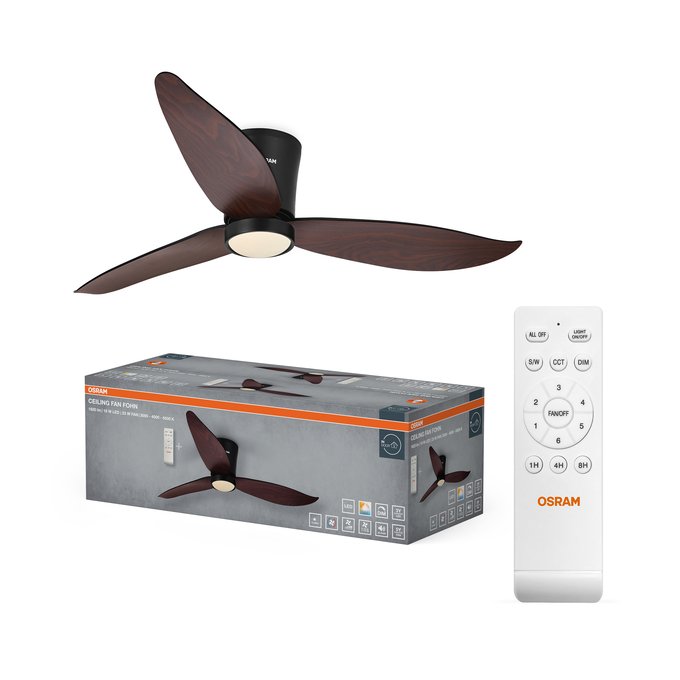

Ceiling fan Fohn 1168mm 41W CCT
4058075857810
Product benefits
- Airflow suitable for 13-20 m²
- Set color temperature according to daytime and usage (dining, relaxing, social events...)
- Set light output from 0-100% for personal comfort
- Pleasant use during sleeping phase (low noise on low level speed)
- Summer / winter mode
Product features
- Airflow: max 7272 m³/h
- Speed levels: 1 - 6 steps
- Timer: 1 h / 4 h / 8 h

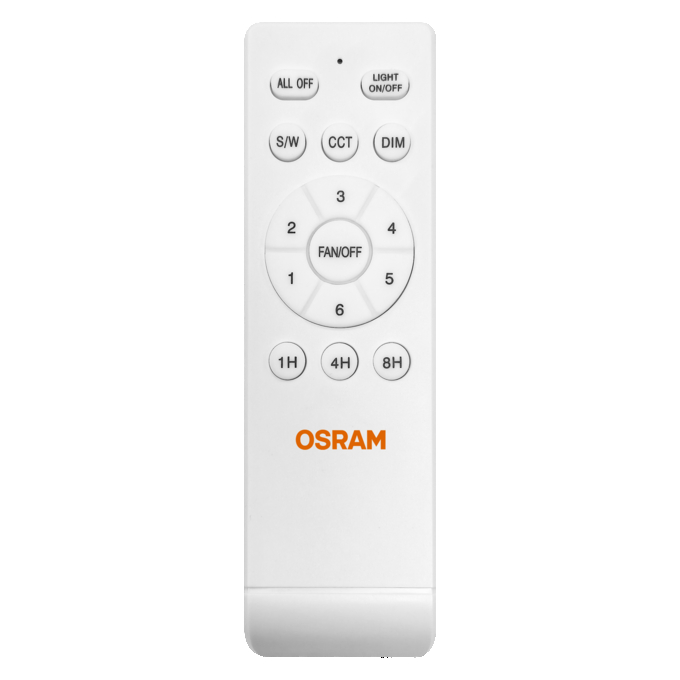

- Control unit: remote control
- Motor type: DC
- CCT: 3000/4000/6500 K
- Lumen source: 1500 lm
- Dimmable
- Type of protection: IP20
- Warranty: 3 years LED, 5 years fan
Equipment / Accessories
- Remote control included
- Requires 2xAAA batteries (not included)
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- Please avoid: Maximal ambient temperature: +45 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
120 °
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Diameter
1168.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075857810
Height
234.00 mm
Housing color
Black|Wood decor
Inrush current
3 A
Inrush current time Th50
100 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
N,N-dimethylformami
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
63 lm/W
Luminous flux
1130 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
313.000 mA
Nominal voltage
220…240 V
Nominal wattage
41.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.80
Product color
Black|Wood decor
Product recyclability
Mostly recyclable product 1)
Product weight
3310.00 g
Protection class
I
Reference control setting of contained light source (Kelvin)
3000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
1820 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
